Products | ||||||
---|---|---|---|---|---|---|
Laser Output Power | 10000mw | 20000mw | 33000mw | 10000mw | 20000mw | 6000mw |
Working Area Size | 420*400mm | 420*400mm | 33000mw | 410*400 | 390*385 | 380*370 |
Maximum Engraving Speed | 30,000mm/min | 30,000mm/min | 30,000mm/min | 10,000mm/min | 10,000mm/min | 10,000mm/min |
Air Assist System | ||||||
Power Lock |

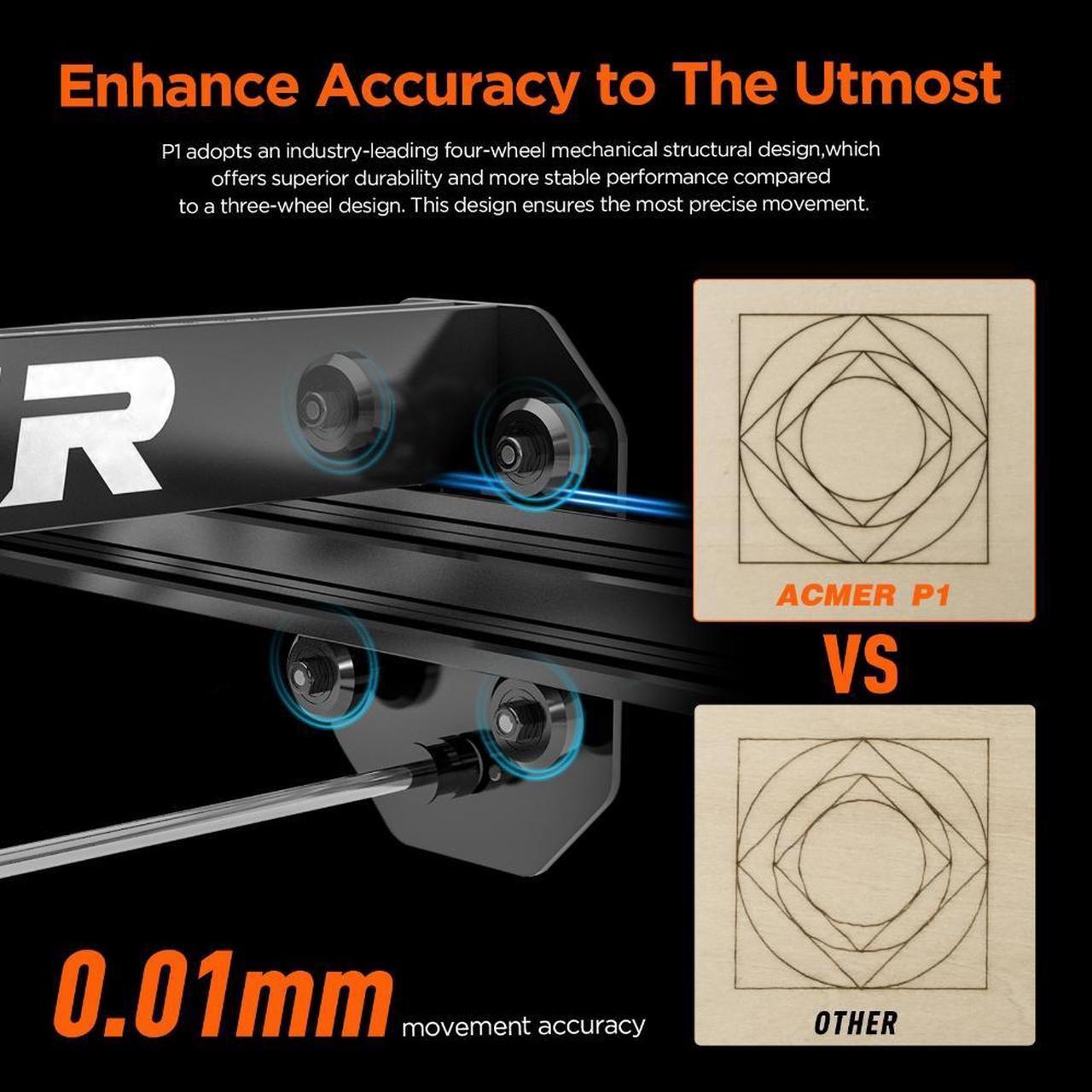

P1 adopts an industry-leading four-wheel mechanical structural design,whichoffers superior durability and more stable performance comparedto a three-wheel design. This design ensures the most
0.01mm
movement accuracy

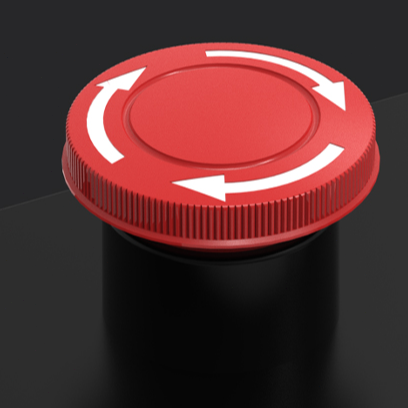

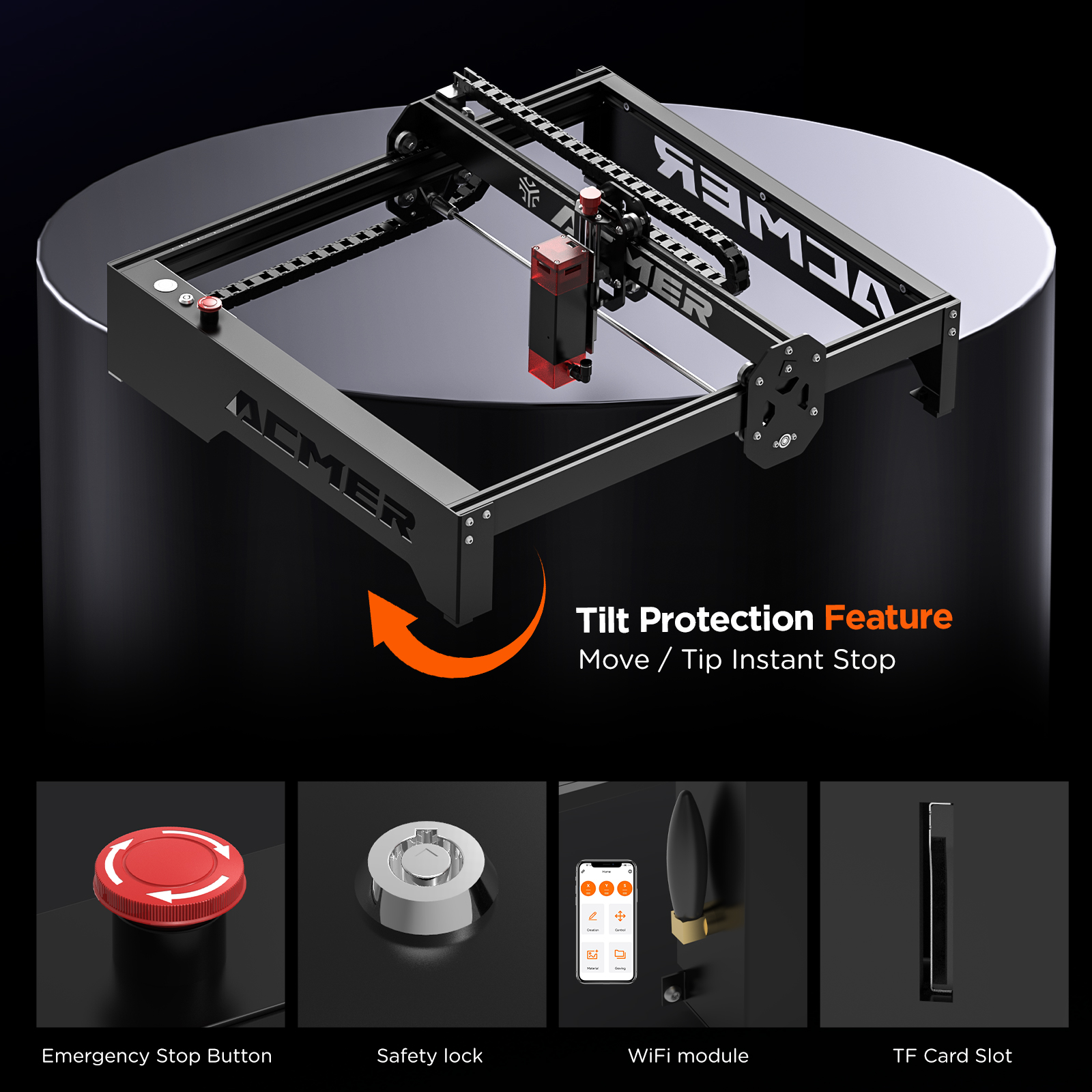

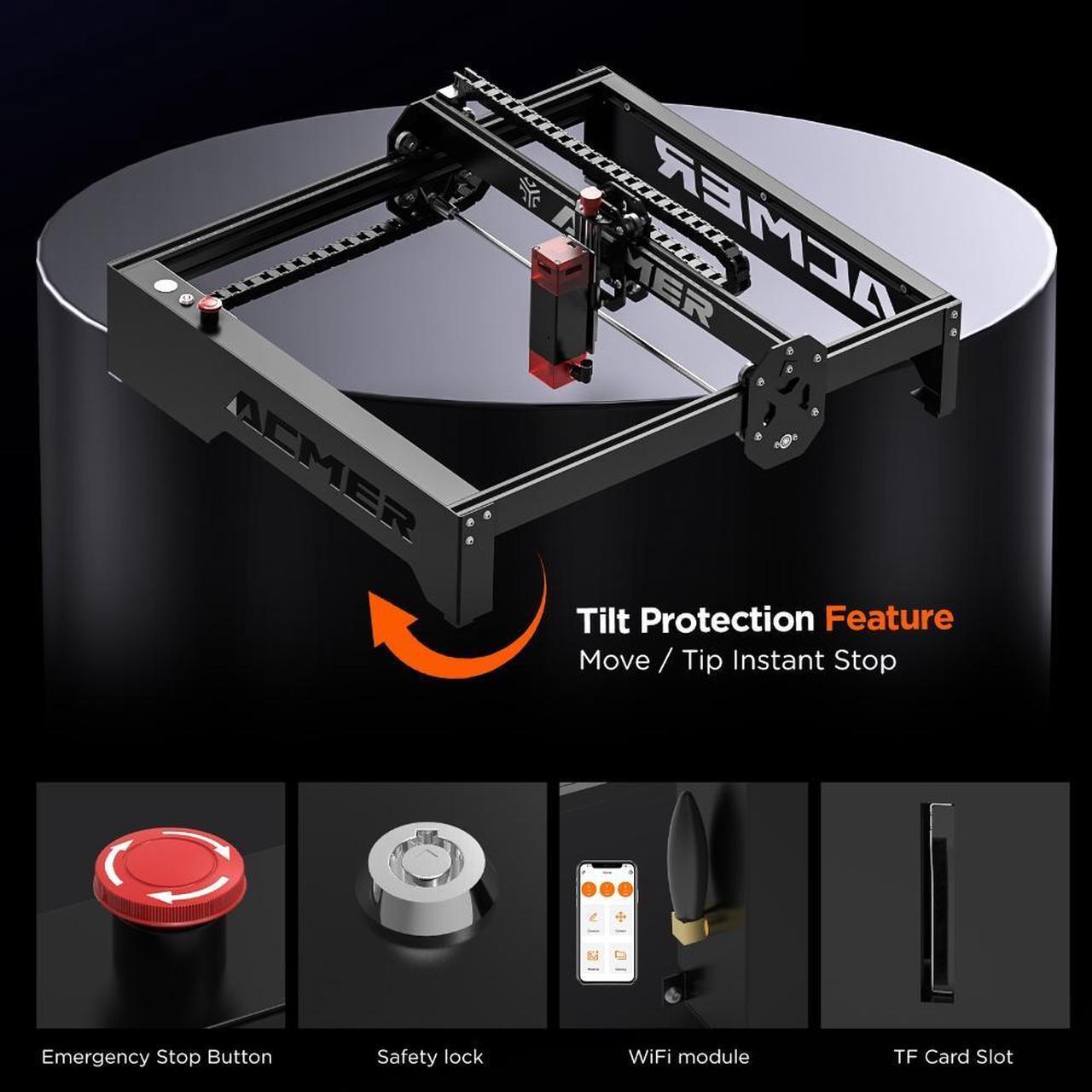

The ACMER P1 Laser Engraver prioritizes safety with its built-in safety lock and emergency stop button. Before operation, the safety lock must be turned on to ensure safe usage. In case of any accidents, the emergency stop button immediately halts the machine. Furthermore, the light shield on the head protects the user's eyes from the intense laser beam.

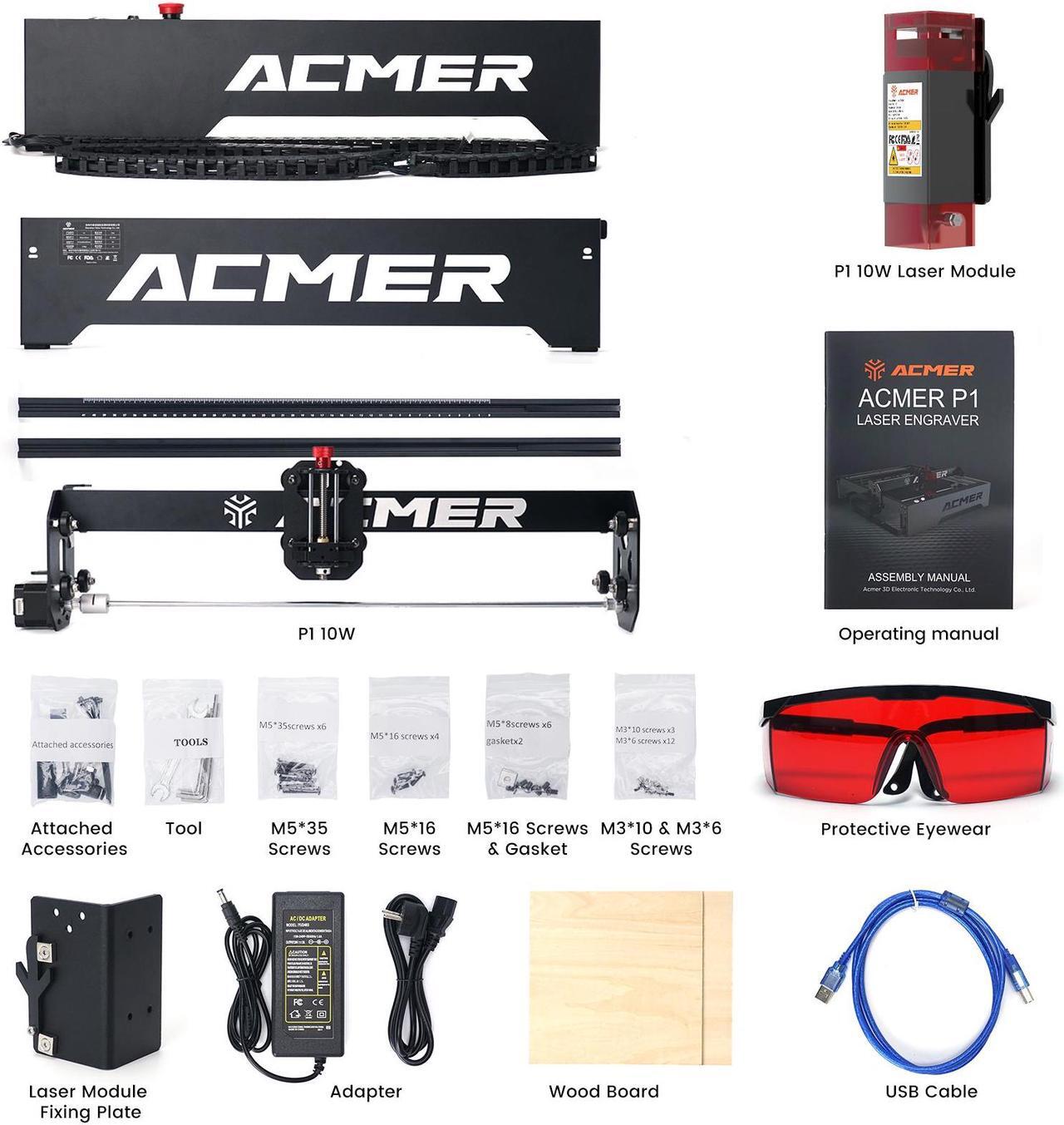

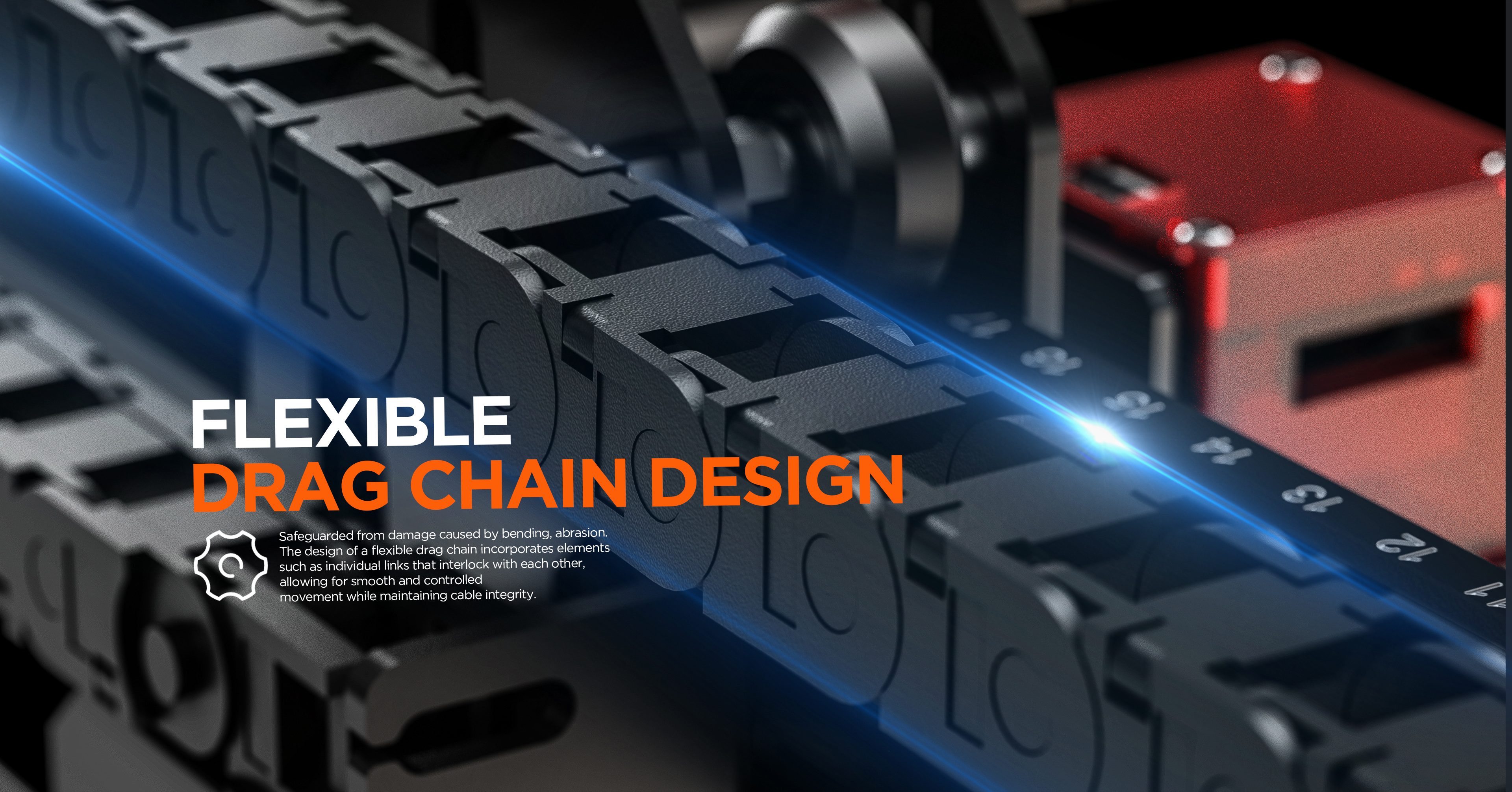

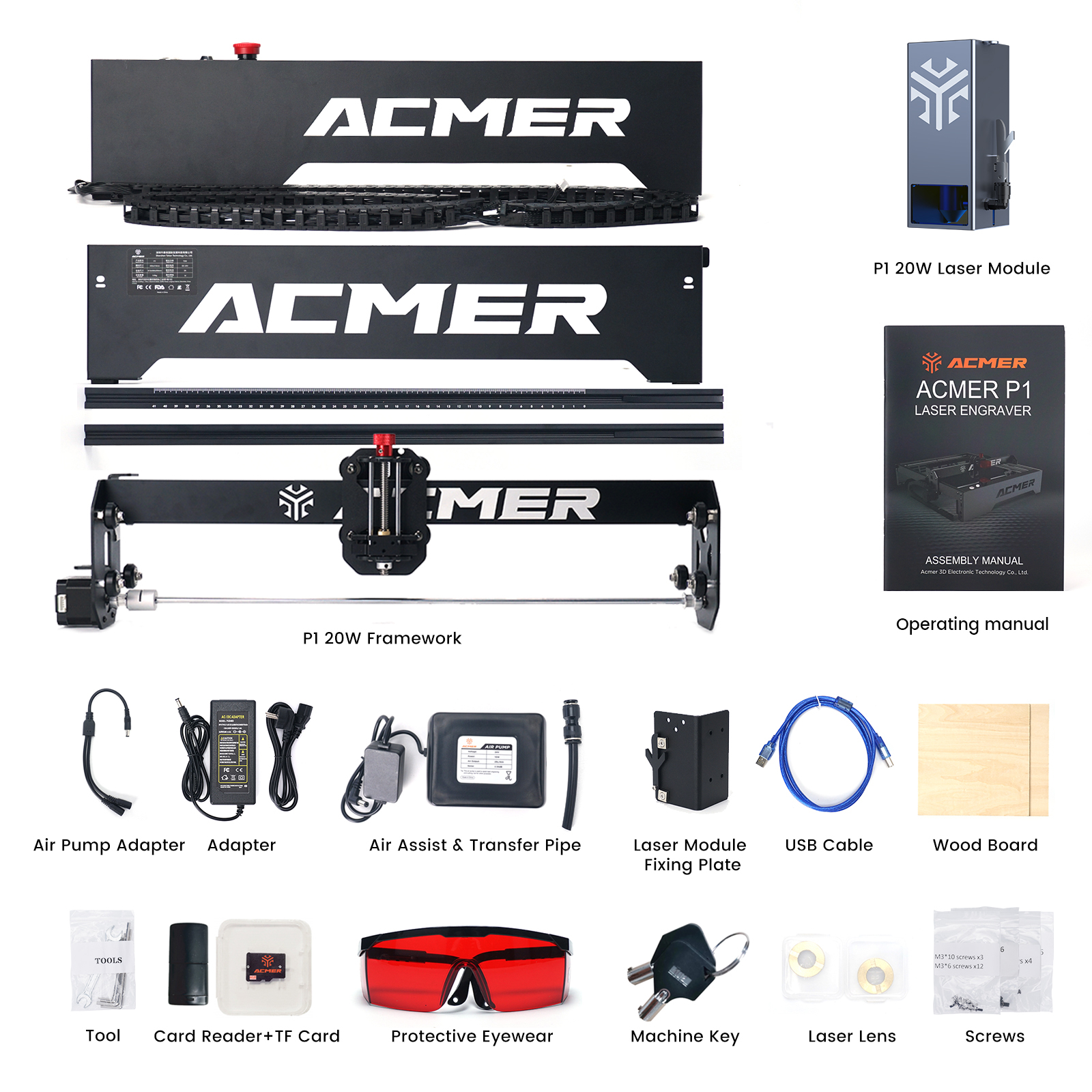

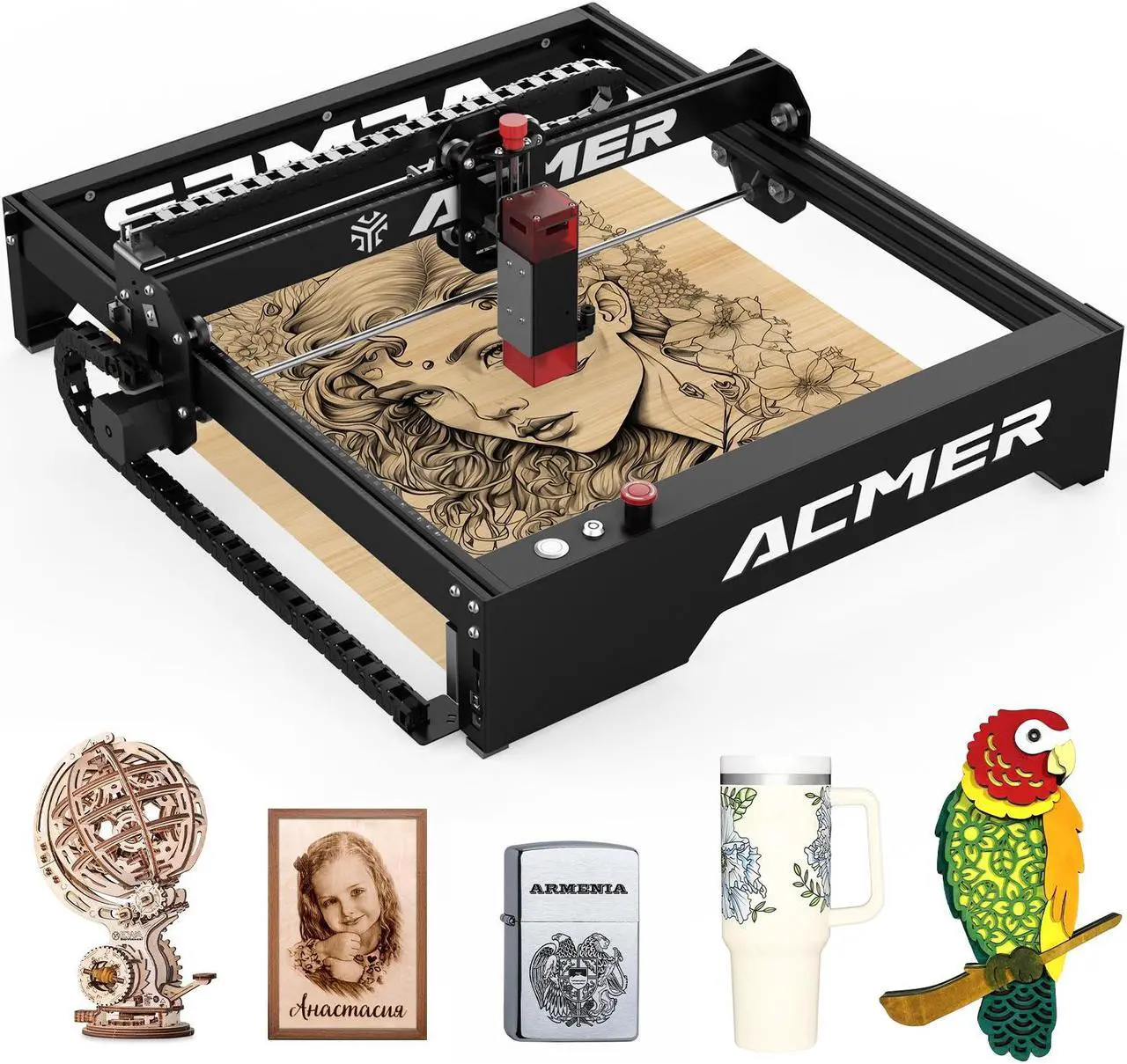

The ACMER P1 Laser Engraver features a sturdy and lightweight aluminum alloy + iron plate body, ensuring both durability and portability. Its tank chain design and organized wiring harness simplify installation and make the process hassle-free. With clear instructions and video tutorials, assembling the machine is a breeze for anyone, even beginners.

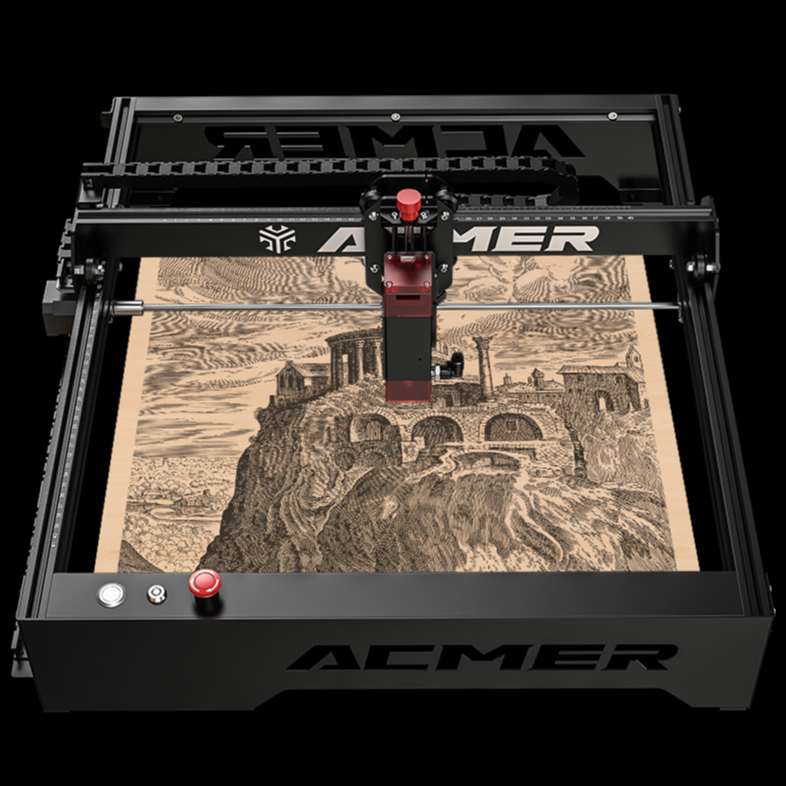

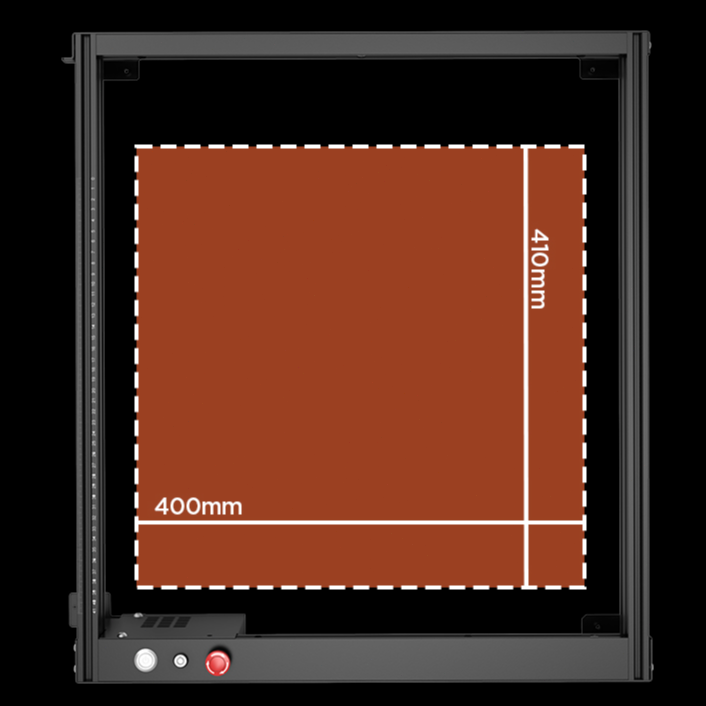

The actual working area size of 400*410mm is enough for your various creative designs.

Robust exterior design, featuring a large area of high-quality steel material for stable engraving.

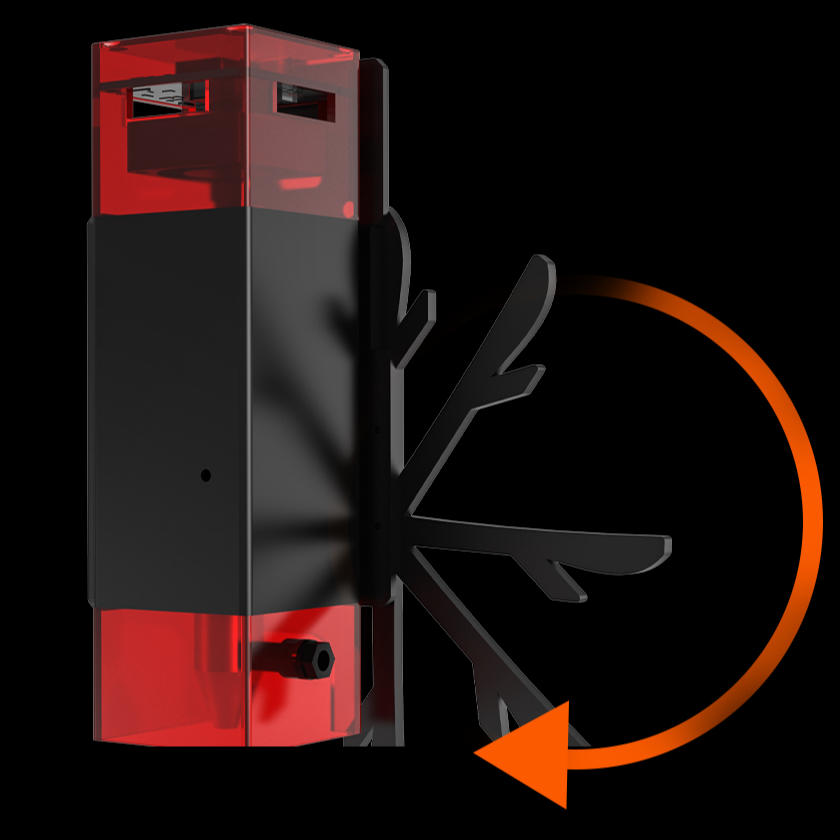

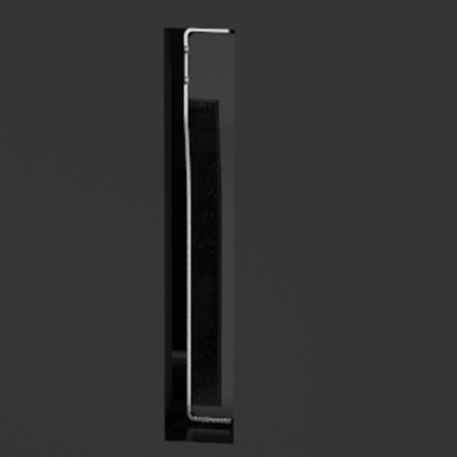

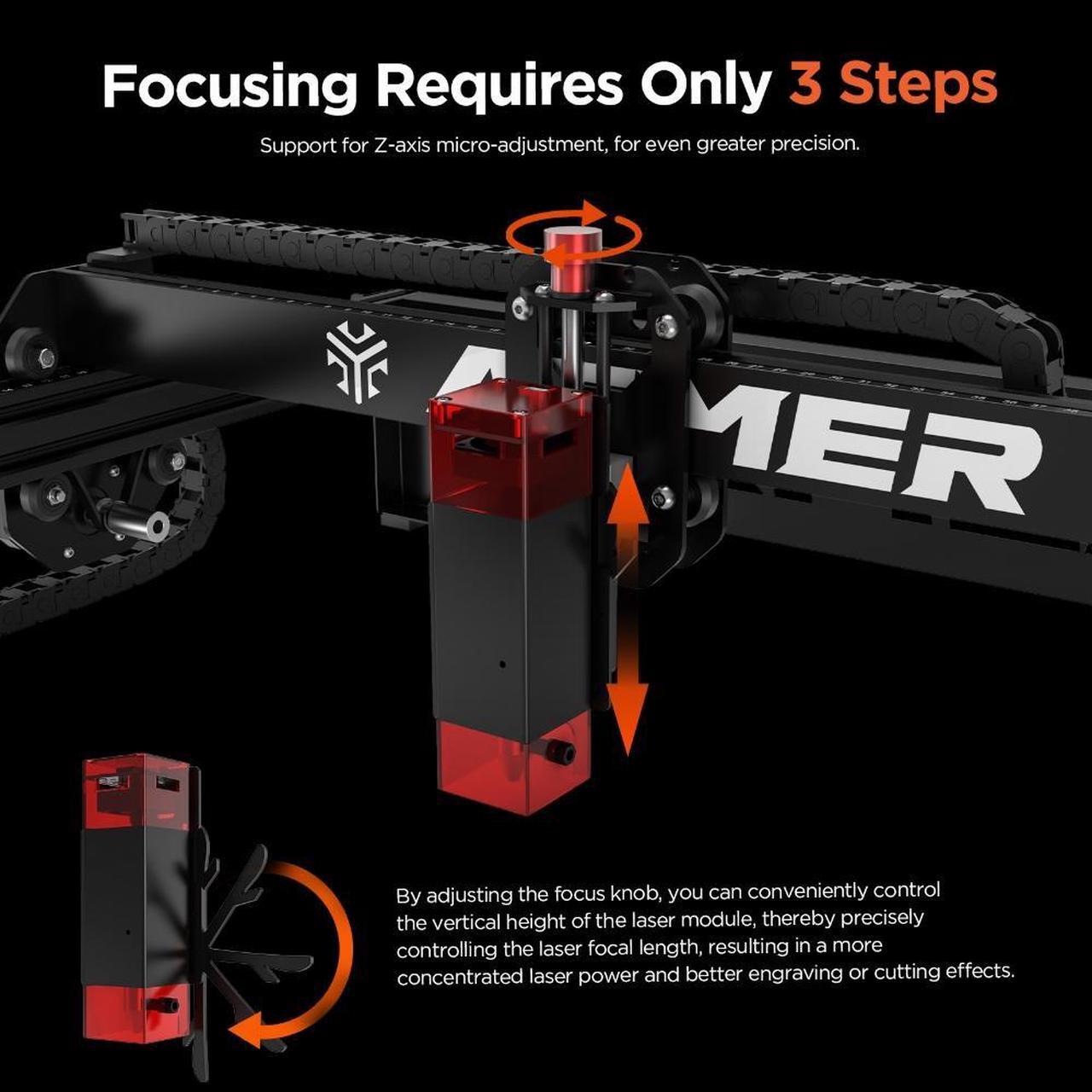

1. Pull down the focus lever.
2. Lower the laser module to make the focus lever touch the material surface.
3. Recover the focus lever.

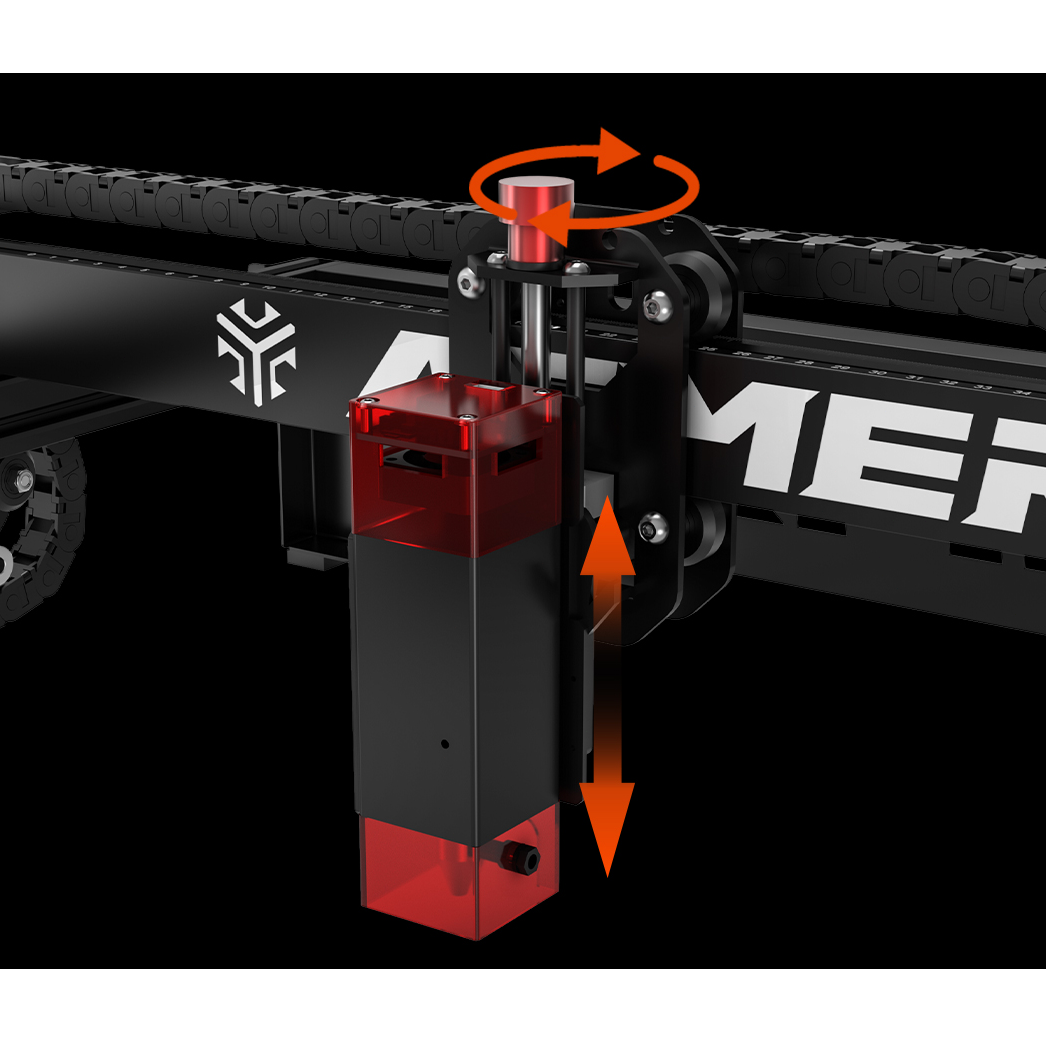

By adjusting the focus knob, you can conveniently control the vertical height of the laser module, thereby precisely controlling the laser focal length, resulting in a more concentrated laser power and better engraving or cutting effects.

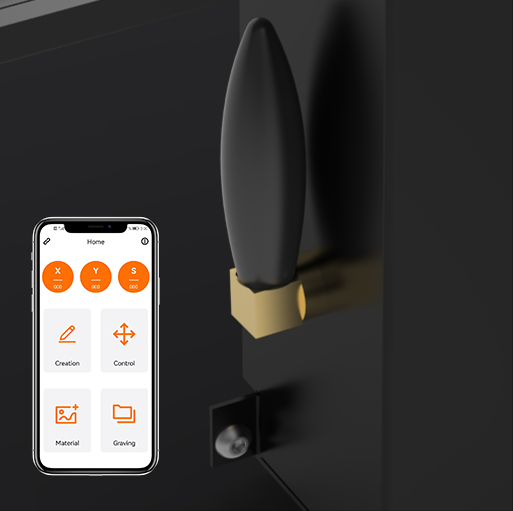

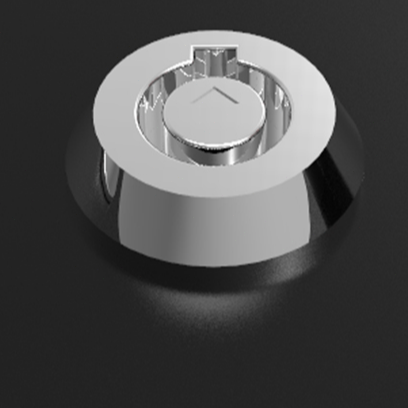

Safety is of utmost importance to ACMER P1, which is why it comes with additional features such as a child safety lock and an emergency stop button. In terms of user-friendliness, P1 supports wireless connectivity to the engraving machine through an app via Wi-Fi. Alternatively, you can also use a TF card to load your designs and instructions for the machine to execute.

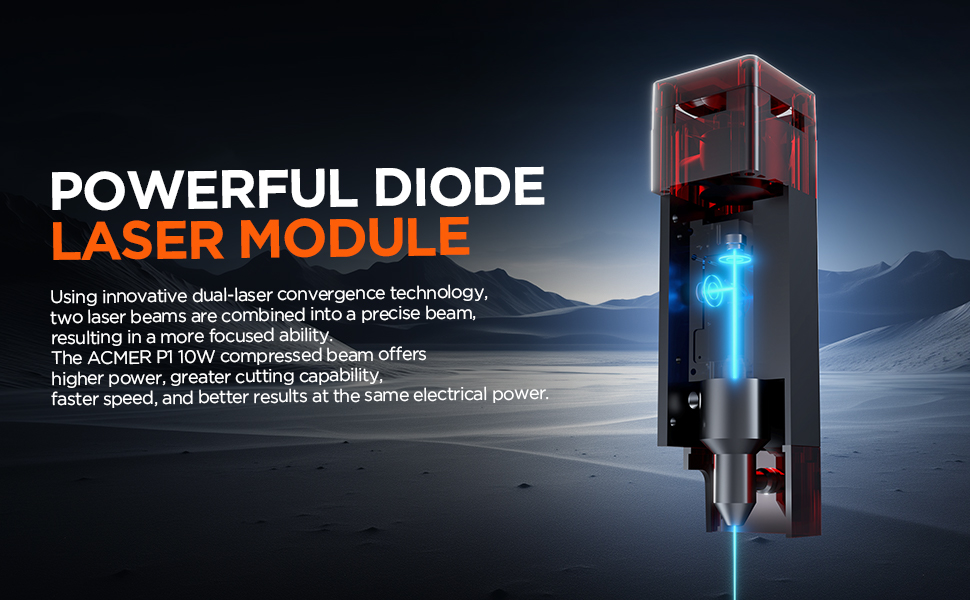

LASER
- 1Laser Output Power :20000mw/10000mw
- Laser Type:Diode Laser
- Harmonic Technology:Laser Coupling Technology
- Laser Wavelength:455±5nm
- Focal Length:
- 10W:31mm
- 20W:5mm
BASIC SPECIFICATIONS
- Assembly Method:DIY
- Motherboard:
- 10W : ESP32-WROOM-32U
- 20W : ESP32
- Working Area Size:
- 10W:400*410mm
- 20W:390*385mm
- Fuselage Materia:Industrial Aluminum Profiles
- Movement structure:Industrial guide rail
- Air Assist System:
- 10W:NO
- 20W:yes
- Power Input:DC 24V 6A/DC 24V 8A
FUNCTIONAL
- Horizontal Gyroscope
- Emergency stop switch
- Power Lock
- Flame Detector
- Alarm buzzer
- WiFi module
- TF card

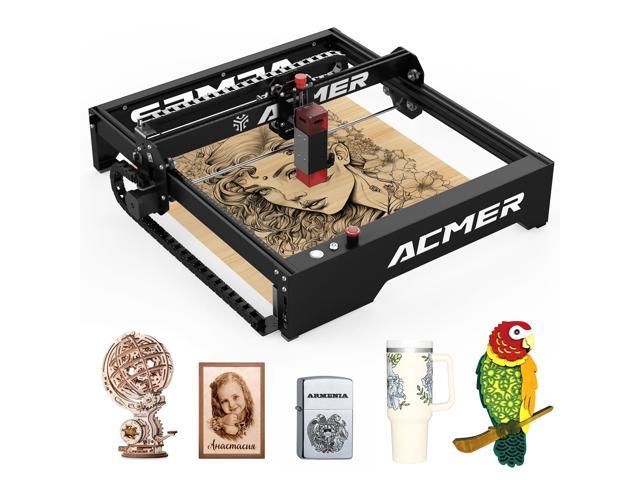

Engraving Materia
- wood
- bamboo
- paper
- plastic
- leather
- PCB board
- aluminium oxide
- non-reflective coating and lacquered metal

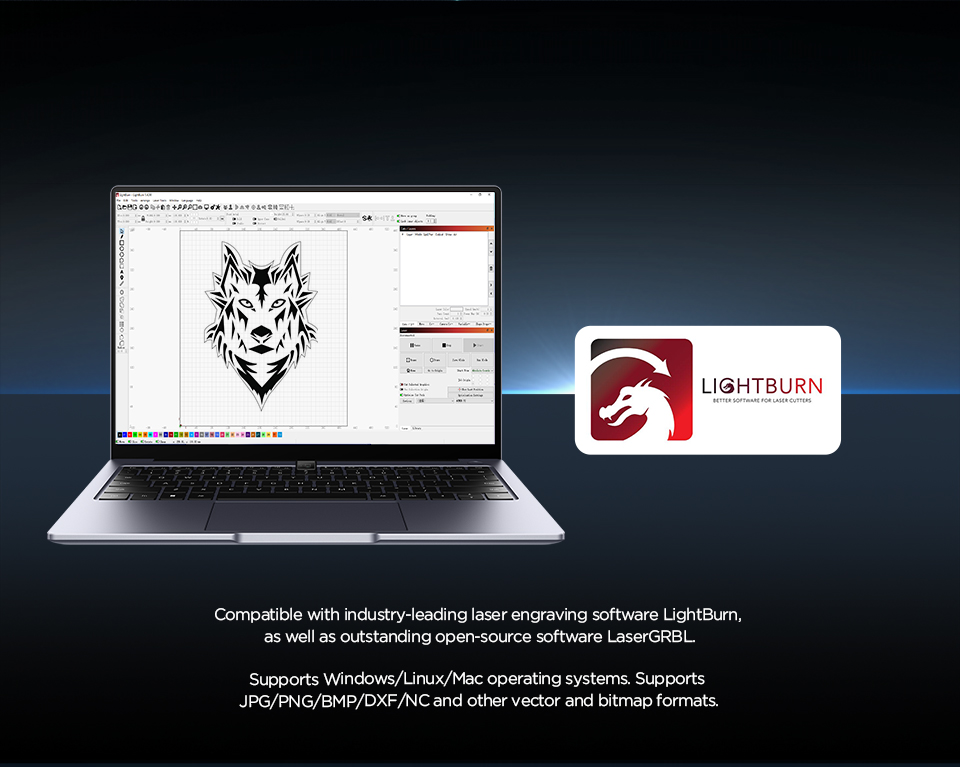

SOFITWARE
- Communication Method : USB / APP /TF
- File Format : NC, DXF, BMP, JPG, PNG, etc.
- Operation System : macOS,Windows,Linux,Android,iOS
