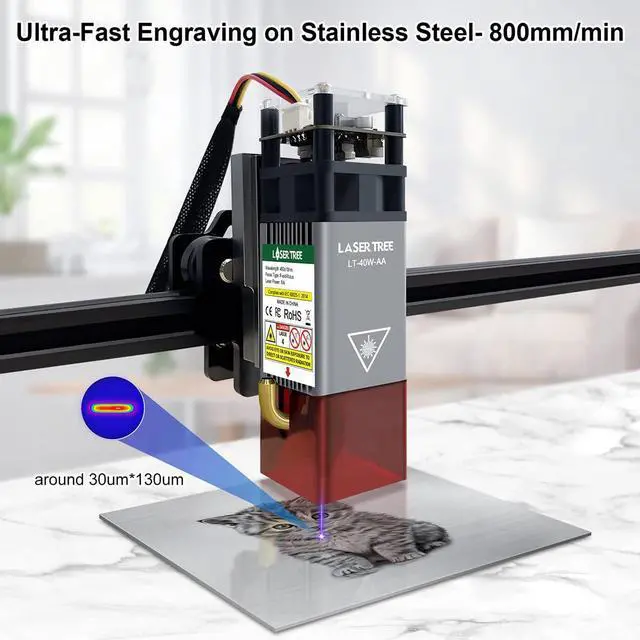

Upgraded 45mm Fixed Focus 40W Laser Module

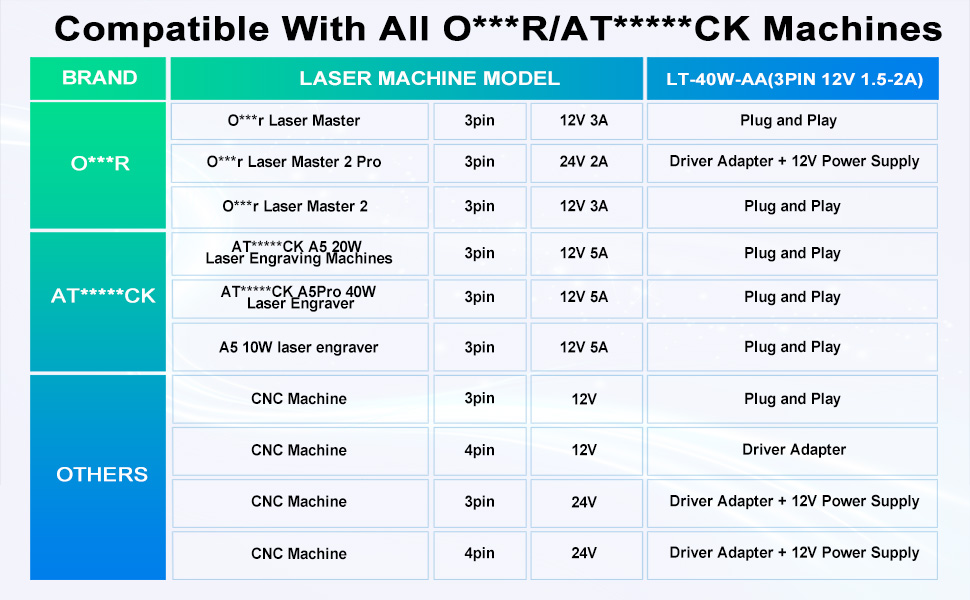

Attention!!!!--- About the compatibility of the laser engraving machine and laser module
Please check the voltage system (12V/24V) of your machine or control board.
LT-40W-AA is a 3pin 12V Laser Module that can be used directly with a 12V 3pin machine. For machines is a 2Pin or 4Pin cable, you can use the adapter plates we provide to be compatible with laser modules.
If your machine is a 24V power supply, please connect the driver adapter to use an 12V external power supply (12V,1.8A above). The 12V laser module cannot be used directly on a 24V machine. Note: Not include a power supply.
If you are not sure whether your machine is compatible with our laser module, you can ask me a question or send me a message from the background, we will help you to confirm the compatibility in time.

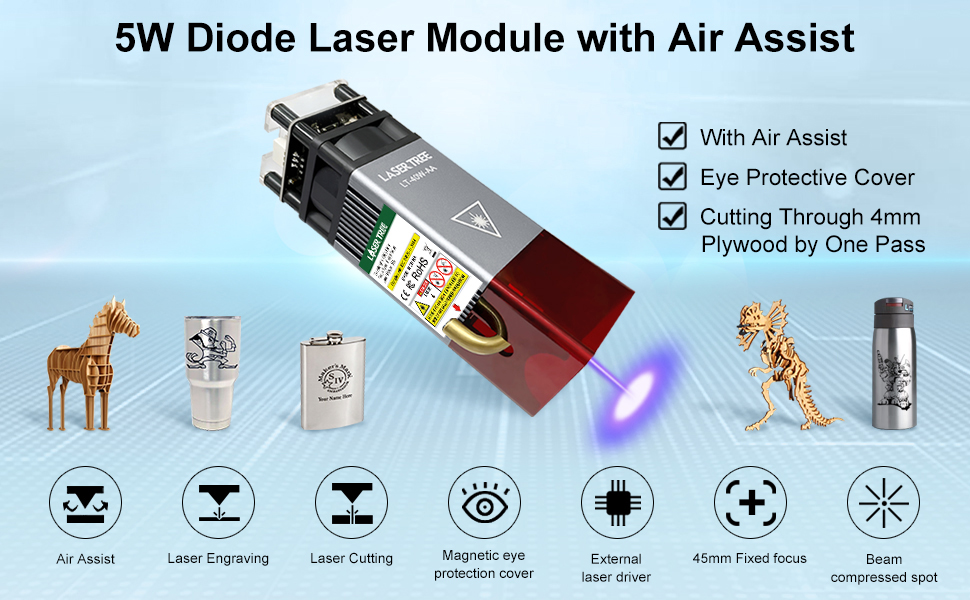

Laser module with air assist

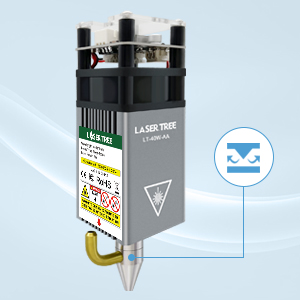

- The laser module is equipped with a 6mm diameter bending air metal nozzle which better reduces air resistance. Cut faster deeper, and cleaner.

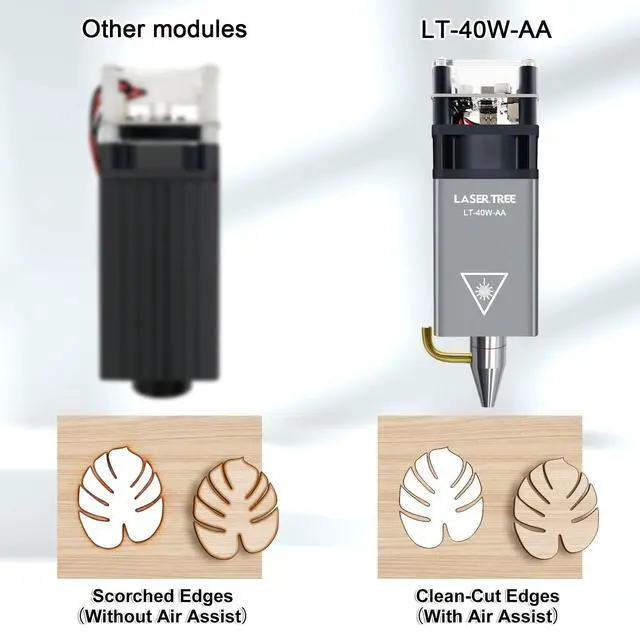

- Other modules: Scorched Edges ( Without Air Assist)
- Our LT-40W-AA pro Module: Clean-Cut Edges ( with Air Assist )
- Air Trachea: f8x6mm

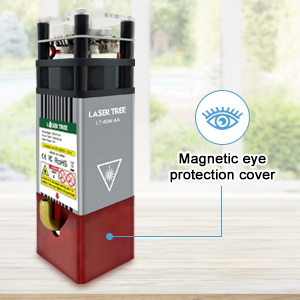

Magnetic eye protection cover
- LT-40W-AA Pro with Eye Protection Cover & Wind Gathering Hood Laser Module Head
- Equipped with a protective cover can effectively filter blue light

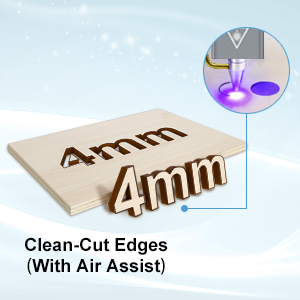

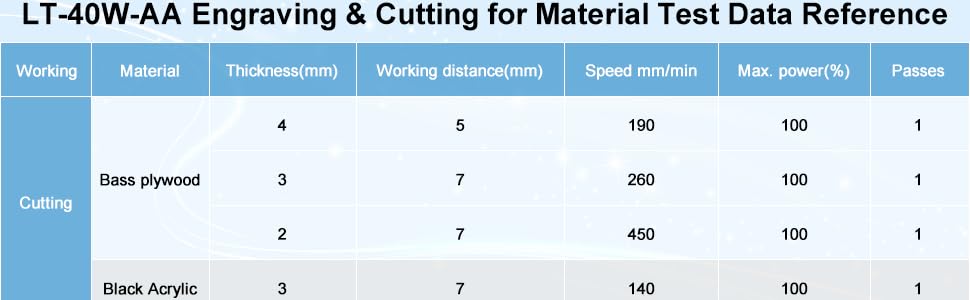

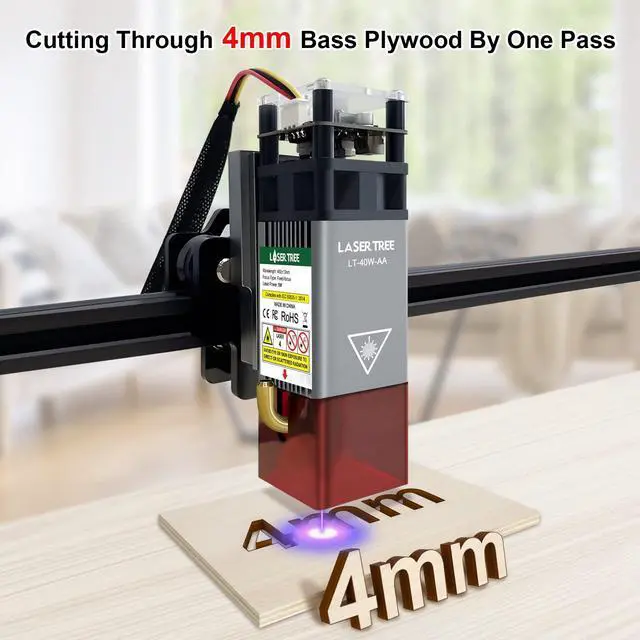

Cut 4mm plywood in one pass
Cut through 4mm bass plywood by one pass

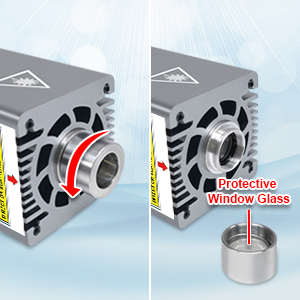

Replaceable Protect Window Glass
- Lenses with oil or dust will affect the cutting ability. Please keep the lenses clean. And we provide an extra protective lens that can be replaced.
- Regular cleaning and maintenance of the lenses will maintain good cutting results and obtain a longer service life.

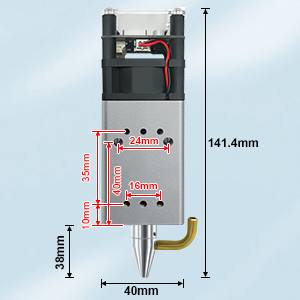

More Mounting Holes
Multi-hole position on the back of laser engraver module, easy to install on different laser cutting and engraving machine stands.

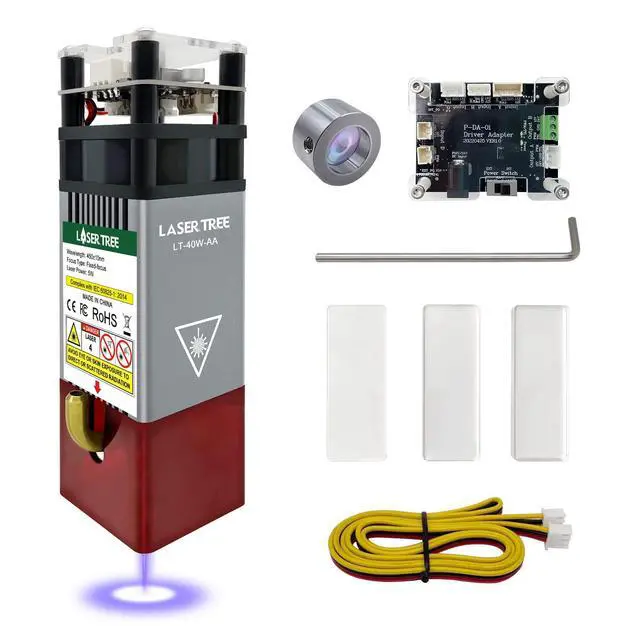

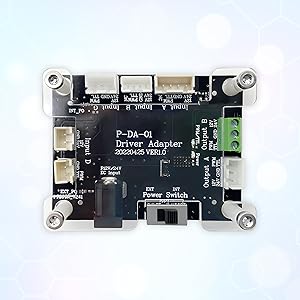

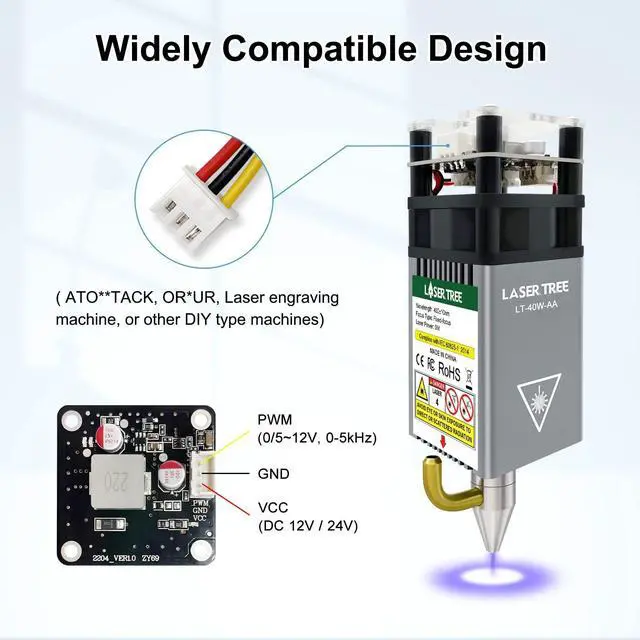

Come with Driver Adapter
Compatible with various 12V DIY cutting engraving machines. Such as AT**CK, Ort**, Ne**, Tw**, CNC machines, 3d Printer, etc. If the machine contral board is 24V, please connect the driver adapter to use an 12V external power supply (12V,1.8A above)

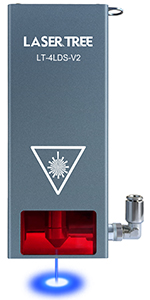

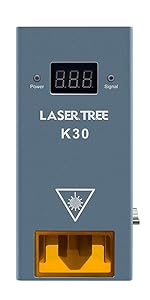

 10W Optical Laser Module |  20W Optical Laser Module |  30W+ Optical Laser Module |  40W Optical Laser Module |  Laser Tree Laser Cutter Module, 60000mW(60W+) Output Power Laser Module, Swit... | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Electric power | 12V 3.2A(3-3.5A); 24V, 1.7A(1.5-2A) | 24V 2.3-3.2A | 24V 5A | 24V 5A | DC24V 10A |
| Focus Length | Fixed focus 45mm | Fixed focus 40mm | Fixed focus 40mm | Fixed focus 40mm | Fixed focus 40mm |
| Air Assist | ? | ? | ? | ? | ? |
| Optical Power Output | 10W | 20W | 30W | 40W | 60W |
Upgraded 45mm Fixed Focus 40W Laser Module
| Effect Output Power | 40W |
| Output Optical Power | 5W |
| Electric Power | 12V 1.8A(1.5A-2A) |

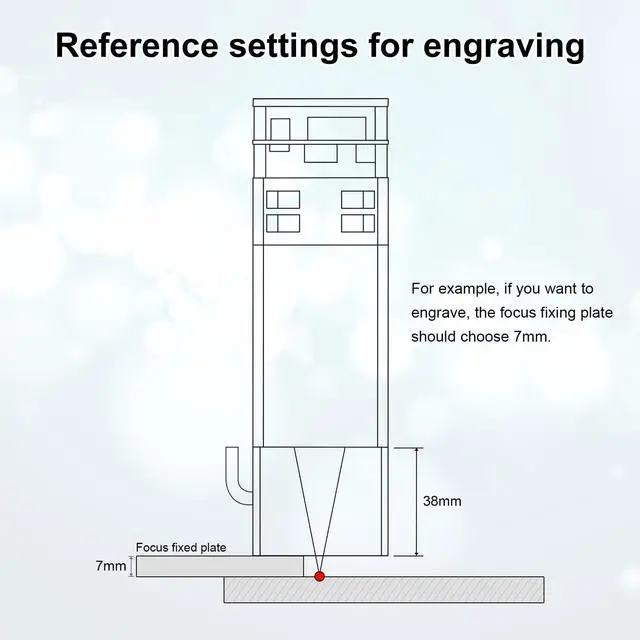

| Focus Length | 45mm |
| Cable | 3PIN 80CM |
| Function | Engraving/Cutting |
| Application | laser engraver/laser cutter |
| Material | Aluminum alloy |

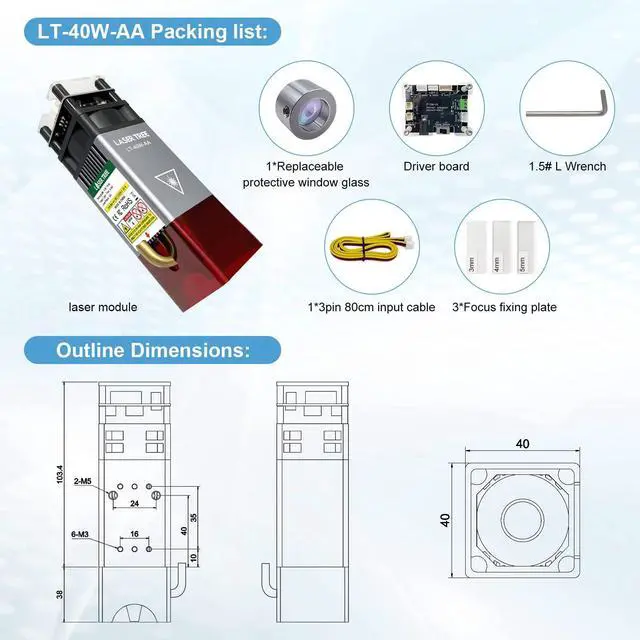

| Module Size | 40*40*141.4 mm |
| Fan Speed | 10000rpm |
| Operating Temperature | 0~60? |
| Interface | XH2.54-3P socket |
| Driver Protection | Surge protection over voltage protection |
| Power Adjustable | Support 5V PWM modulation |
| Weight | 240g |
| Wavelength | 450mm |
Attention!!!!--- About the compatibility of the laser engraving machine and laser module
Please check the voltage system (12V/24V) of your machine or control board.
LT-40W-AA is a 3pin 12V Laser Module that can be used directly with a 12V 3pin machine. For machines is a 2Pin or 4Pin cable, you can use the adapter plates we provide to be compatible with laser modules.
If your machine is a 24V power supply, please connect the driver adapter to use an 12V external power supply (12V,1.8A above). The 12V laser module cannot be used directly on a 24V machine. Note: Not include a power supply.
If you are not sure whether your machine is compatible with our laser module, you can ask me a question or send me a message from the background, we will help you to confirm the compatibility in time.
Laser module with air assist
- The laser module is equipped with a 6mm diameter bending air metal nozzle which better reduces air resistance. Cut faster deeper, and cleaner.
- Other modules: Scorched Edges ( Without Air Assist)
- Our LT-40W-AA pro Module: Clean-Cut Edges ( with Air Assist )
- Air Trachea: f8x6mm
Magnetic eye protection cover
- LT-40W-AA Pro with Eye Protection Cover & Wind Gathering Hood Laser Module Head
- Equipped with a protective cover can effectively filter blue light
Cut 4mm plywood in one pass
Cut through 4mm bass plywood by one pass
Replaceable Protect Window Glass
- Lenses with oil or dust will affect the cutting ability. Please keep the lenses clean. And we provide an extra protective lens that can be replaced.
- Regular cleaning and maintenance of the lenses will maintain good cutting results and obtain a longer service life.
More Mounting Holes
Multi-hole position on the back of laser engraver module, easy to install on different laser cutting and engraving machine stands.
Come with Driver Adapter
Compatible with various 12V DIY cutting engraving machines. Such as AT**CK, Ort**, Ne**, Tw**, CNC machines, 3d Printer, etc. If the machine contral board is 24V, please connect the driver adapter to use an 12V external power supply (12V,1.8A above)
10W Optical Laser Module | 20W Optical Laser Module |  30W+ Optical Laser Module | 40W Optical Laser Module | Laser Tree Laser Cutter Module, 60000mW(60W+) Output Power Laser Module, Swit... | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Electric power | 12V 3.2A(3-3.5A); 24V, 1.7A(1.5-2A) | 24V 2.3-3.2A | 24V 5A | 24V 5A | DC24V 10A |
| Focus Length | Fixed focus 45mm | Fixed focus 40mm | Fixed focus 40mm | Fixed focus 40mm | Fixed focus 40mm |
| Air Assist | ? | ? | ? | ? | ? |
| Optical Power Output | 10W | 20W | 30W | 40W | 60W |
