iKKEGOL 8 Port HDMI Splitter Switch Amplify V1.4 108P 3D Video Audio STB HDTV HDCP PS3 DVD
- Input: 1x HDMI
- Output: 8x HDMI
- Easy to use: No need for settings
- Distribution: Four identical HDMI ouputs
- HDCP compliant
- HDMI 1080P Compatible
- Input DDC :Signal 5 volts P-P(TTL)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
Input: 1x HDMI
Output: 8x HDMI
Easy to use: No need for settings
Distribution: Four identical HDMI ouputs;
Caseade: Large distribution achieved by stacking;
HDCP compliant
HDMI 1080P Compatible
Supports 1080P to the max
DVI Resolution: 480p/576i/576p/720i/720p/1080i/1080p
HDMI Resolution: 480i/576i/480p/576p/720p/1080i/1080p, 3D(1080P/24Hz)
Specification:
1.
Signal: Inputs/Output
2.
Input DDC: Signal 5 volts P-P (TTL)
3. Maximum Single Link Range 1920X1200p-1080P
4. Output Video HDMI + HDCP 1.0 / 1.1 / 1.2 / 1.2 a/ 1.4
5. Operating Frequency Vertical Frequency Range 60/85Hz
6. Video Amplifier Bandwidth 2.25G bps/225MHz
7. Video Format Supported DTV/HDTV 480i/576i/480P/576P/720P/1080i/1080P
8. Resolutions (HDTV) Interlaced (50&60Hz) 480i, 576i, 1080i Progressive (50&60Hz)480p, 576p, 720p, 1080p
9.
Power Requirement: External Power Supply 5V DC@ 3A
Power consumption (Max) 12W
Function

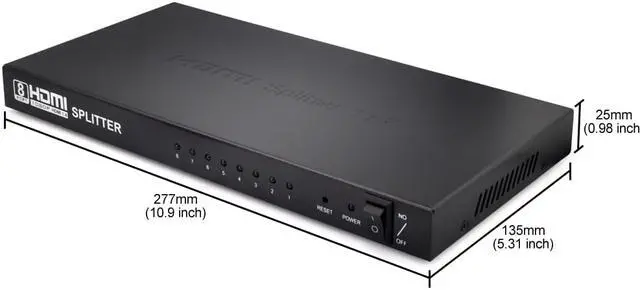

Size: about 280 x 140 x 25 mm(11"x 5.5" x1" inch)
Connection and operation:
1. Connect the output devices with convertor via HDMI cable
2. Connect the HDMI splitter output interface with HDMI TV devices via HDMI cable

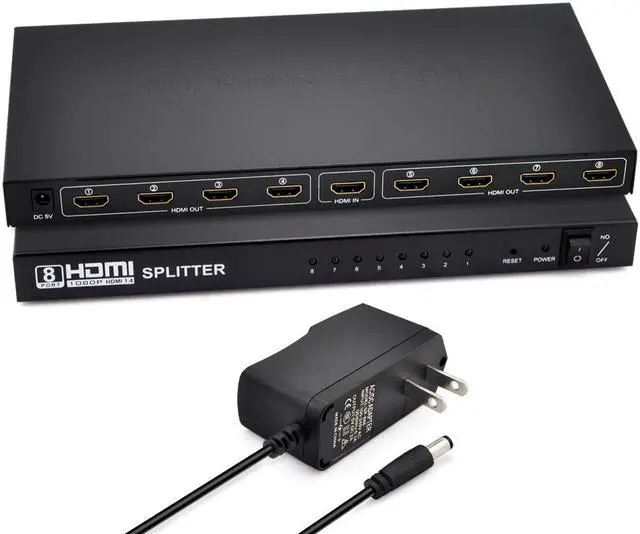

Package included:
1 x HDMI 1X 8 Splitter
1 x Power Supply
1 x User Manual
Without retail box
Input: 1x HDMI
Output: 8x HDMI
Easy to use: No need for settings
Distribution: Four identical HDMI ouputs;
Caseade: Large distribution achieved by stacking;
HDCP compliant
HDMI 1080P Compatible
Supports 1080P to the max
DVI Resolution: 480p/576i/576p/720i/720p/1080i/1080p
HDMI Resolution: 480i/576i/480p/576p/720p/1080i/1080p, 3D(1080P/24Hz)
Specification:
1.
Signal: Inputs/Output
2.
Input DDC: Signal 5 volts P-P (TTL)
3. Maximum Single Link Range 1920X1200p-1080P
4. Output Video HDMI + HDCP 1.0 / 1.1 / 1.2 / 1.2 a/ 1.4
5. Operating Frequency Vertical Frequency Range 60/85Hz
6. Video Amplifier Bandwidth 2.25G bps/225MHz
7. Video Format Supported DTV/HDTV 480i/576i/480P/576P/720P/1080i/1080P
8. Resolutions (HDTV) Interlaced (50&60Hz) 480i, 576i, 1080i Progressive (50&60Hz)480p, 576p, 720p, 1080p
9.
Power Requirement: External Power Supply 5V DC@ 3A
Power consumption (Max) 12W
Function
Size: about 280 x 140 x 25 mm(11"x 5.5" x1" inch)
Connection and operation:
1. Connect the output devices with convertor via HDMI cable
2. Connect the HDMI splitter output interface with HDMI TV devices via HDMI cable
Package included:
1 x HDMI 1X 8 Splitter
1 x Power Supply
1 x User Manual
Without retail box
