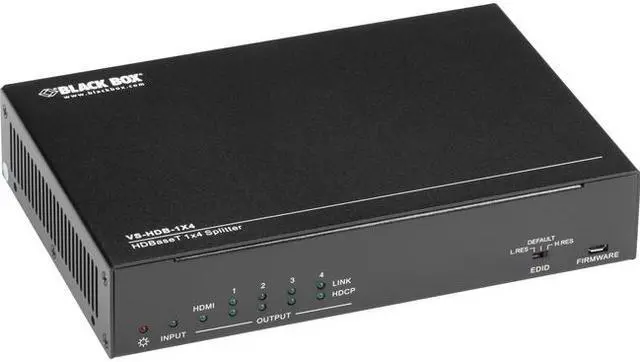

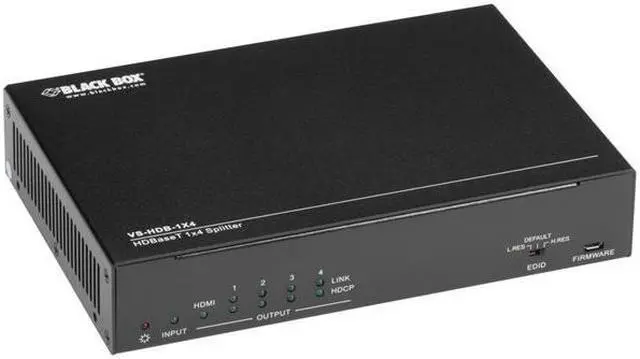

Black Box VS-HDB-1X4 1 x 4 4K UHD Smart EDID HDBase-T Video Splitter

The HDBaseT Video Splitter- 1 x 4- 4K UHD- Smart EDID accepts a single HDMI input and splits it into four HDBaseT outputs. The splitter is designed with an HDMI loop out- which is intended to cascade to additional units. It supports video resolutions up to 4K at 60 Hz and all HDMI audio formats. It can extend 1080p signals on each output to a distance up to 229 feet (70 meters) and 4K signals to a distance up to 131 feet (40 meters) over a single CATx Ethernet cable. Features Supports video resolutions up to 4K at 60-Hz 4:2: 0 Supports bidirectional IR and RS232 pass-through and loop out Smart EDID management- features DIP switch to select the output resolution to match the connected displays Fully compliant with teh HDMI 1.4 specification Supports HDCP pass-through management Supports firmware update Intuitive indicator for connection statusSpecifications
Consumption: 45W (max)
Input: 24-VDC- 2.71
A Weight: 2.13 lbs
