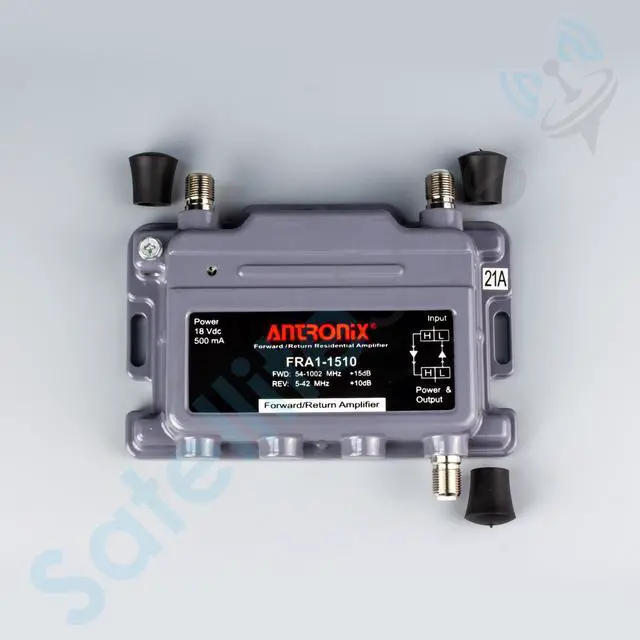

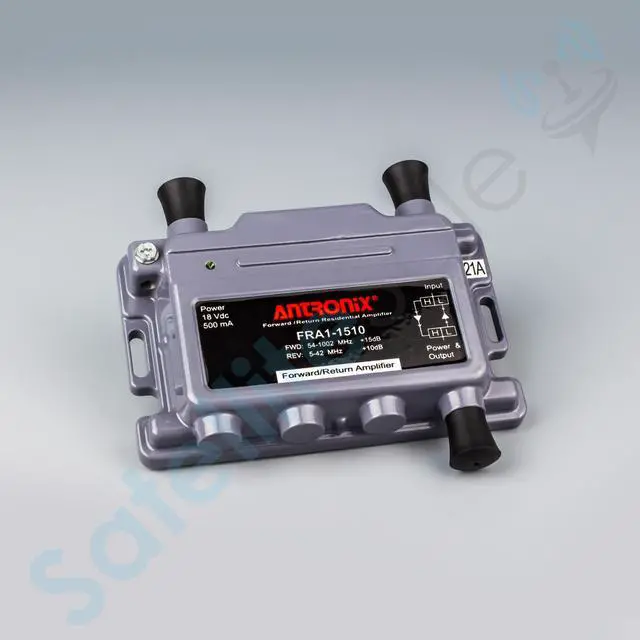

Forward/return Amplifier Fra1-1510 By Antronix

Antronix’s Forward and Return Residential Amplifier (FRA) Series provides both forward and return path amplification. The FRA was designed for applications such as cable modems and two-way set-top boxes. The FRA is the first forward and return amplifier to utilize the patented auto-seizing CamPort. This SCTE compliant F-port provides maximum contact area and reliability for multimedia applications. With the capability to endure multiple high power surges, the FRA can operate in the harshest environments. The lightweight powder coated AL 360 housing provides superior corrosion resistance for quality performance and long life.

FEATURES
Ultra Low Distortion - Highly linear push-pull return path amplification.
Bi-Directional Amplification - Provides signal amplification in both the forward and return paths
Low Intermodulation Ferrites - Proprietary ferrite blend inhibits re-magnetization of the core due to voltage spikes from impulse noise or lightning. This prevents high-level return carriers from affecting forward path video signals.

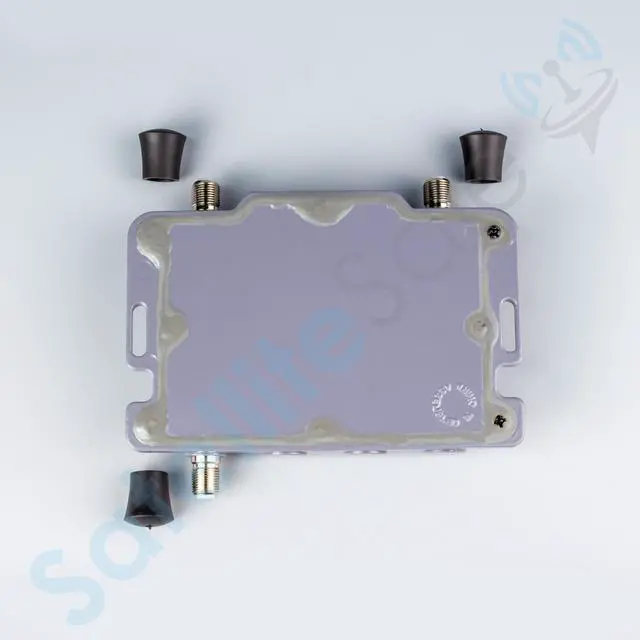

Weather Sealed Housing with RFI Gasket - Guarantees repeatable 120 dB RFI shielding.
6 kV Surge Withstand on all Ports - Unique, non arc gap surge protection design, to provide maximum protection while eliminating high impulse noise, which can be caused during an arc gap discharge.

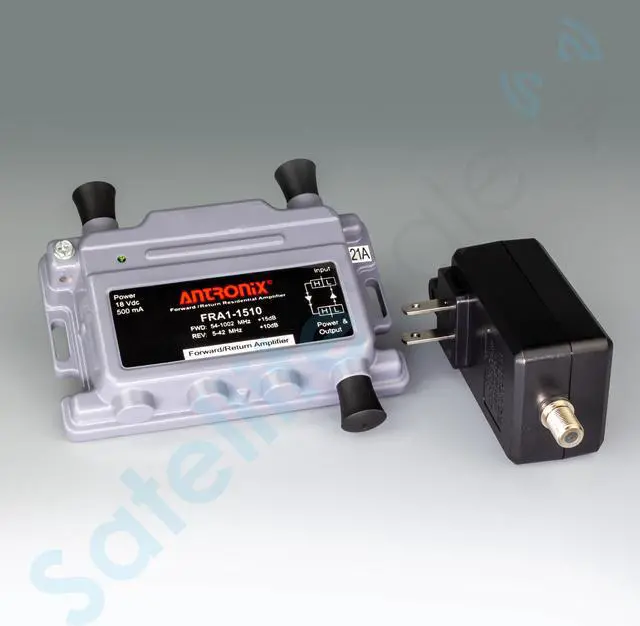

Local or Remote Powering - Power the amplifier locally with supplied adaptor or remotely with an optional power inserter.
18 VDC UL Listed Wall Adapter - Self-resetting circuit protection provides safe protection against short-circuits to minimize maintenance costs.
SPECIFICATIONS
FWD: 54-1002MHz (+15dB)
RTN: 5-42 MHz (+10dB)
75 Ohm
1 RF Output
Forward & Return (FRA) Residential Amplifier
Not for Satellite Use
