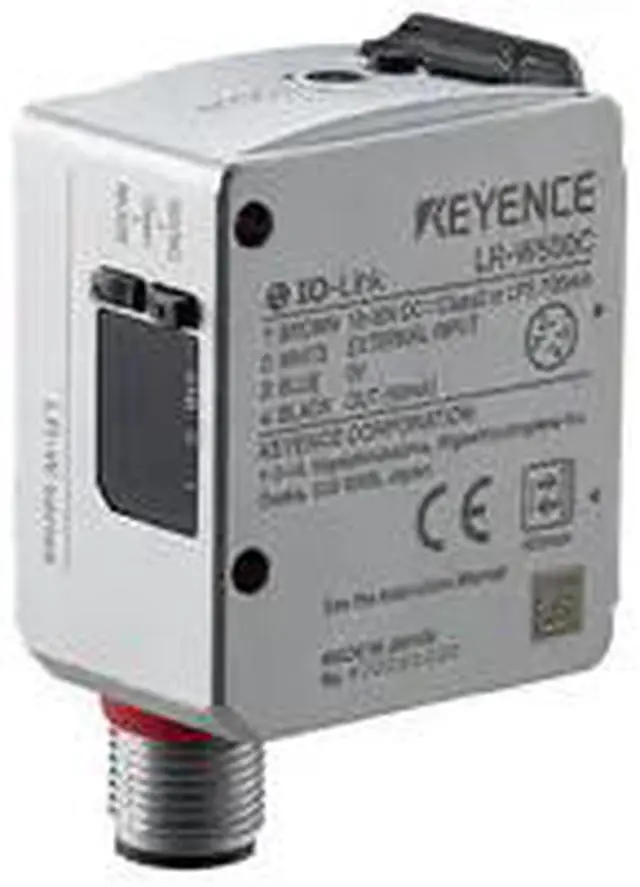

Keyence LR-W500C Self-Contained Full-Spectrum Laser Sensor
- Brand: Keyence
- Model: LR-W500C
- Condition: New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Keyence LR-W500C Self-Contained Full-Spectrum Laser Sensor
Brand: Keyence
Model: LR-W500C
Product Type: Laser Sensor
Type: M12 connector 4-pin type
Detecting Distance: 30 to 500 mm
Response Time: 200 µs/1 ms/10 ms/100 ms/500 ms selectable *1
Mutual Interference Reduction Function: Up to 2 units when alternate frequencies set
Current consumption: 65 mA or less (without load) at 24 VDC; ; 120 mA or less (without load) at 12 VDC *2
Control Output: NPN open collector/PNP open collector selectable; 30 VDC or less, 50 mA or less, remaining voltage: 2 V or less ; N.O./N.C. selectable
Power Voltage: 10 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS
Ambient Temperature: -20 to +50 °C (No freezing)
Relative Humidity: 35 to 85 % RH (No condensation)
Vibration Resistance: 10 to 55 Hz, Double amplitude 1.5 mm
