NGW-1pc Grove - Tilt Switch
- Features
- Excellent lifespan: Above 100,000 cycles, no more worrying about sensors easily damaged by repeated use.
- Extremely durable: Airtight, waterproof and dustproof, use with confidence and boldness.
- Grove unified socket: The sensor ensures "Plug and Play" and could be versatile for various applications.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description

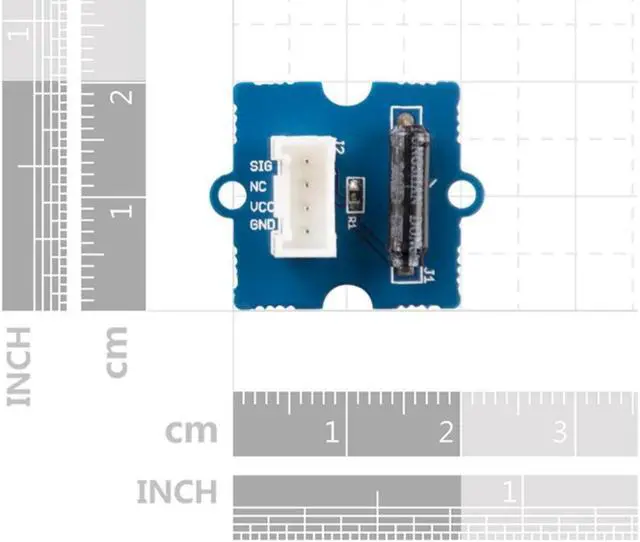

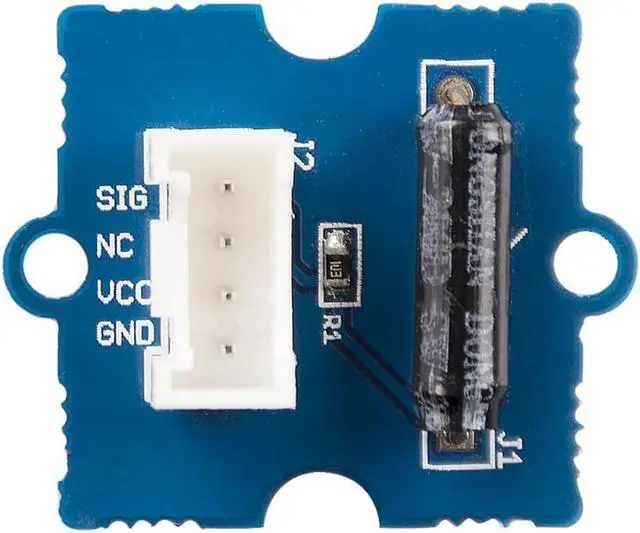

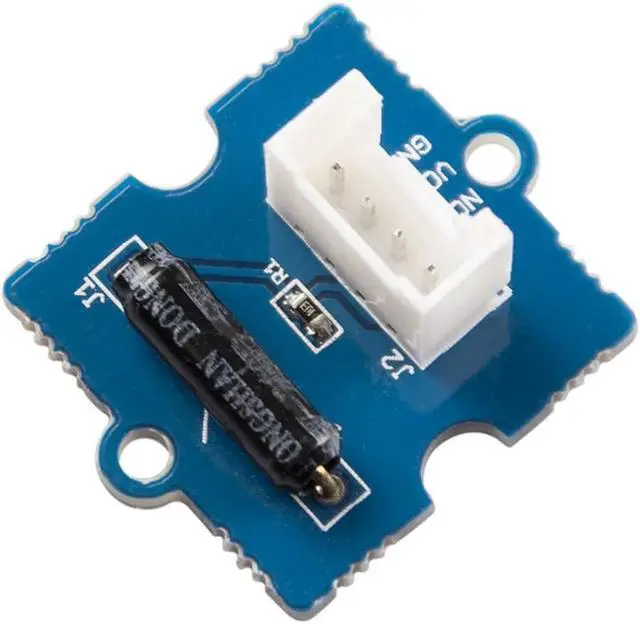

The Grove-Tilt Switch is the equivalent of a button, base on SW-200D, which is a two balls type single direction tilt sensitive trigger switch. It is used as a digital input. Inside the tilt switch is a pair of balls that make contact with the pins when the case is upright. Tilt the case over and the balls don't touch, thus not making a connection. It is wired to the SIG line, NC is not used on this Grove.
How does the SW-200D work?
When the products tilt to the conductive terminal (silver-feet pin end A) and the tilt angle more than 10degree, it will be a opened circuit OFF-stated. When the products of horizontal placed tilt change, the trigger terminal (gold-feet pin end C) is below the horizontal tilt angle and more than 10degree, It will be a closed circuit ON-stated.
Application
Automotive devices
Home electrical devices
automatic power-off function for household appliances
Air warm blower fall prevention protect switches
Communication devices
Toys
Dimensions
130mm x90mm x10mm
Weight
G. W 9g
Battery
Exclude
Input Voltage
3V to 5.25V
Connecting Angle
10° ~170°
Disconnect angle
190° ~350°
Electrical Life
100, 000 Cycle
Part List
Grove - Tilt Switch
*1
The Grove-Tilt Switch is the equivalent of a button, base on SW-200D, which is a two balls type single direction tilt sensitive trigger switch. It is used as a digital input. Inside the tilt switch is a pair of balls that make contact with the pins when the case is upright. Tilt the case over and the balls don't touch, thus not making a connection. It is wired to the SIG line, NC is not used on this Grove.
How does the SW-200D work?
When the products tilt to the conductive terminal (silver-feet pin end A) and the tilt angle more than 10degree, it will be a opened circuit OFF-stated. When the products of horizontal placed tilt change, the trigger terminal (gold-feet pin end C) is below the horizontal tilt angle and more than 10degree, It will be a closed circuit ON-stated.
Application
Automotive devices
Home electrical devices
automatic power-off function for household appliances
Air warm blower fall prevention protect switches
Communication devices
Toys
Specifications
Dimensions
130mm x90mm x10mm
Weight
G. W 9g
Battery
Exclude
Input Voltage
3V to 5.25V
Connecting Angle
10° ~170°
Disconnect angle
190° ~350°
Electrical Life
100, 000 Cycle
Part List
Grove - Tilt Switch
*1
