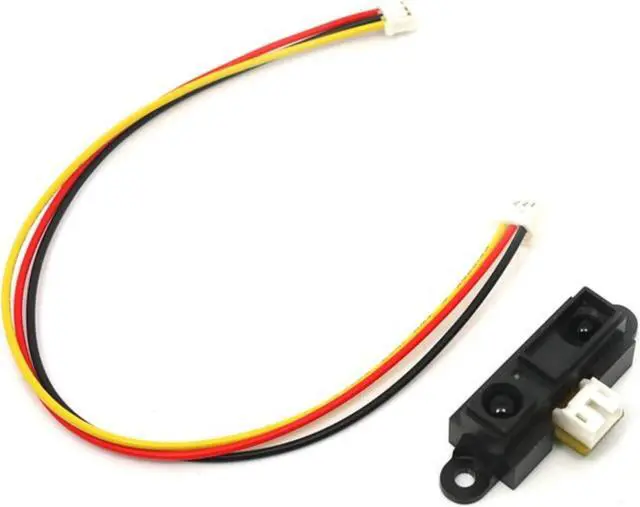

NGW-1pc Grove - 80cm Infrared Proximity Sensor - GP2Y0A21YK
- Features
- Wide detection range: Non-contact distance detection area between 10cm to 80cm, and angle reach to 4``- 30``
- High-speed response rate: Sensor response time of only 39ms
- Simple digital output: Outputting digital signals is easier to handle
- Grove unified socket: The product ensures "Plug and Play" and could be versatile for various applications
- Compact size, easy to install: Small size is more conducive to carrying and installing in the place of detection
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description
This sensor is quite small and uses a tiny connector called the Japan Solderless Terminal (JST) connector.
These connectors have three wires: Ground, VCC, and Output. Because the sensor fire continuously and doesn't need any clock to initiate a reading, it is easy to interface with any microcontroller. for the Seeeduino 4.2, the wire converts the 3-wire to 4-wire so that it can be compatible with the twig interface of Grove. You can apply it to TVs, personal computers, cars and so on.
Application
Waterdrop conservation
Toys
Robotics
Dimensions
37mm x 18.9 mm x 15.5 mm
Working Voltage
5V
Analog Output Voltage (80cm)
0.4V
Average Current Consumption
33mA
Measuring Distance Range
10 to 80 cm
Operating Temperature
-10 to + 60
Storage Temperature
-40 to + 70
Weight
G. W 9g
Battery
Exclude
Part List
Grove - 80cm Infrared Proximity Sensor*1
Grove Cable*1
This sensor is quite small and uses a tiny connector called the Japan Solderless Terminal (JST) connector.
These connectors have three wires: Ground, VCC, and Output. Because the sensor fire continuously and doesn't need any clock to initiate a reading, it is easy to interface with any microcontroller. for the Seeeduino 4.2, the wire converts the 3-wire to 4-wire so that it can be compatible with the twig interface of Grove. You can apply it to TVs, personal computers, cars and so on.
Application
Waterdrop conservation
Toys
Robotics
Specifications
Dimensions
37mm x 18.9 mm x 15.5 mm
Working Voltage
5V
Analog Output Voltage (80cm)
0.4V
Average Current Consumption
33mA
Measuring Distance Range
10 to 80 cm
Operating Temperature
-10 to + 60
Storage Temperature
-40 to + 70
Weight
G. W 9g
Battery
Exclude
Part List
Grove - 80cm Infrared Proximity Sensor*1
Grove Cable*1
