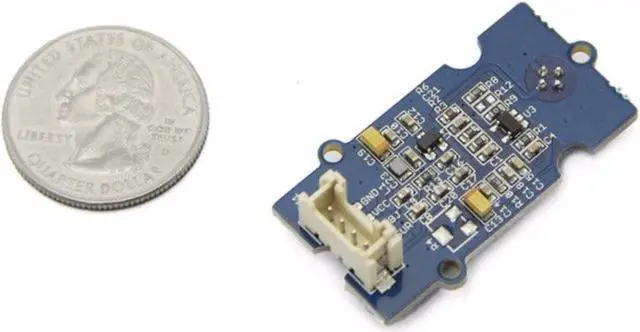

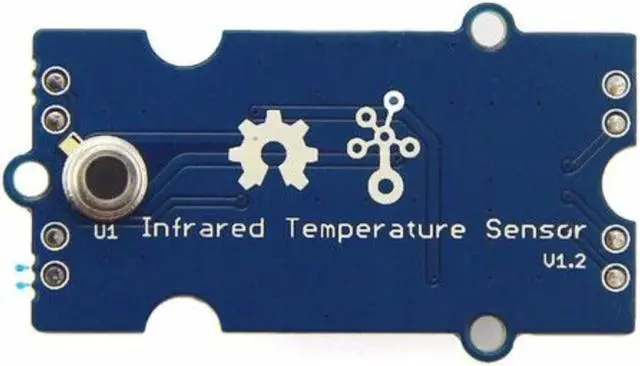

NGW-1pc Grove - Infrared Temperature Sensor for Arduino
- Features
- Non-contact temperature measurement: Infrared temperature collection within 9CM
- Wide range of temperature measurements: Temperature measurements range from -10 to 100
- Low power consumption: The power consumption is less than 0.6mW
- Accurate temperature measurement: The measurement accuracy error was only ±2
- Grove compatible interface: The product ensures "Plug and Play" and could be versatile for various applications of Grove
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description
The Infrared temperature sensor is a non-contact temperature measure model. It is composed of 116 elements of thermocouple in series on a floating micro-membrane, the black Surface of the sensor is good to absorb the incident thermal infrared radiation, which might trigger a voltage response at the output. This sensor outputs an analog voltage (0~ 1.1V ) according to the target temperature.
Application
Motion sensor
Thief-guarding System
Switch
Industrial automation
Body distance check
Specification

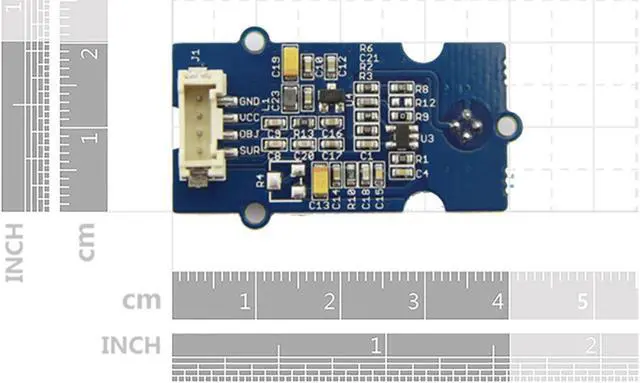

Dimensions 130mm×80mm×11mm
Supply Voltage 3.3V /5V
Measuring Current Supply 160-200 uA
Measuring Range -10~100°C
Measuring Accuracy ±2
Measuring Distance 9CM
Holding Time 2S
Operating Temperature -10~80 °C
Storage Temperature -35-80 °C
Part List

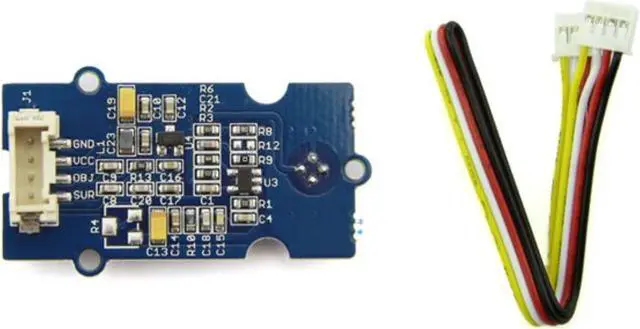

Grove - Infrared Temperature Sensor *1
The Infrared temperature sensor is a non-contact temperature measure model. It is composed of 116 elements of thermocouple in series on a floating micro-membrane, the black Surface of the sensor is good to absorb the incident thermal infrared radiation, which might trigger a voltage response at the output. This sensor outputs an analog voltage (0~ 1.1V ) according to the target temperature.
Application
Motion sensor
Thief-guarding System
Switch
Industrial automation
Body distance check
Specification
Dimensions 130mm×80mm×11mm
Supply Voltage 3.3V /5V
Measuring Current Supply 160-200 uA
Measuring Range -10~100°C
Measuring Accuracy ±2
Measuring Distance 9CM
Holding Time 2S
Operating Temperature -10~80 °C
Storage Temperature -35-80 °C
Part List
Grove - Infrared Temperature Sensor *1
