NGW-1pc Grove - Temperature&Humidity Sensor (SHT31), I2C, ±2% RH and ±0.3°C Temp, ideal for Smart Home, Industrial Automation
- Features
- High accuracy: Support reliable measurement of RH and temp boasting typical accuracies of ±2% RH and ±0.3°C, respectively
- Rapid data transmission:I2C Interface with communication speeds up to 1 MHz and two user selectable addresses
- Streamlined performance: With a fully calibrated, linearized, and temperature-compensated digital output,eliminating delays and ensuring prompt data acquisition
- Wide compatibility: Operates on a wide supply voltage range of 2.15 V to 5.5 V, making it compatible with a variety of assemblies.
- Versatile connectivity: The Grove interface enables effortless "Plug and Play", while its adaptability makes it ideal for environment detection of applications.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

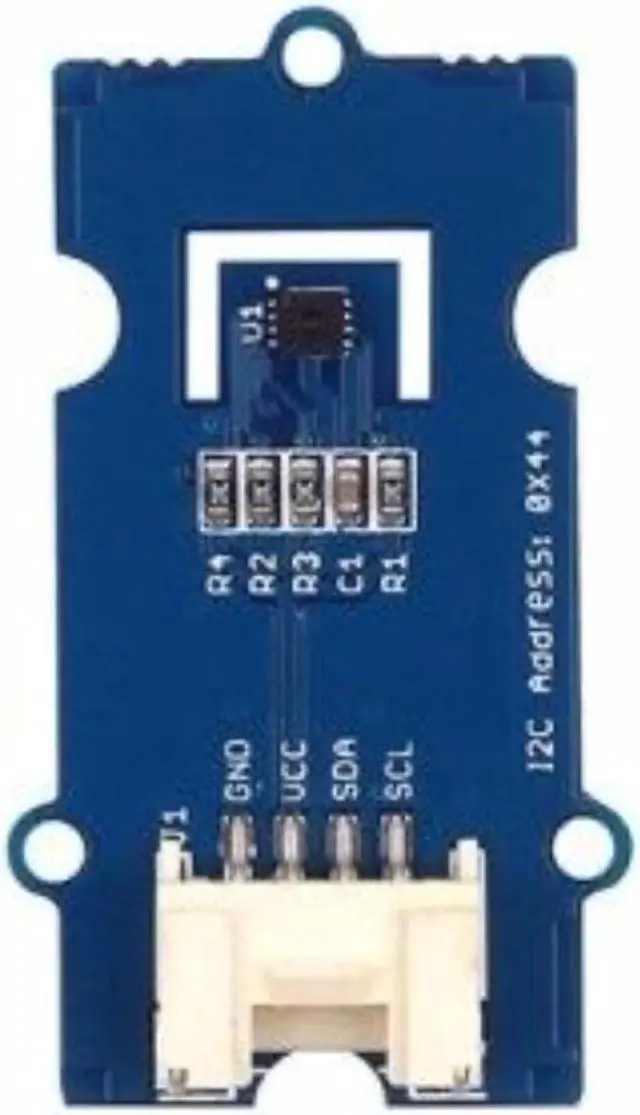

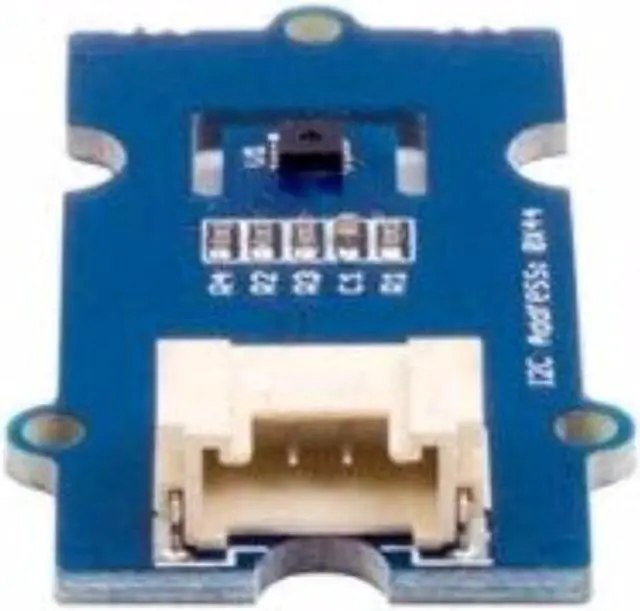

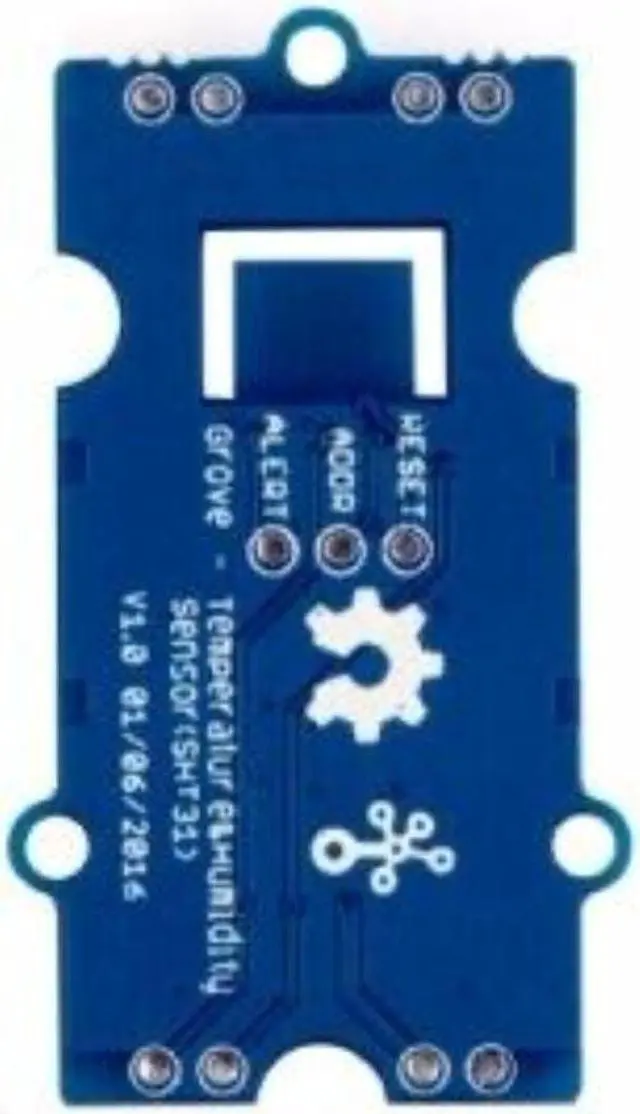

Grove - Temperature & Humidity Sensor (SHT31) measures temperature and humidity with high accuracy ±2% RH and ± 0.3 °C, respectively. Based on Sensirion SHT3x-DIS sensor, it offers exceptional intelligence, reliability, and improved accuracy specifications compared to its predecessor. Enables easy integration into industrial automation, smart home systems, etc.
The SHT31 Temperature & Humidity sensor could be the finest and highest-accuracy humidity sensor you can find, as it can acquire the relative humidity at only ±2% error. On the other side, it also features excellent performance in terms of temperature measurement, you can use it in some extreme conditions, like -40 degrees or 125 degrees, and it still keeps an accuracy of ± 0.3 degrees. It also features an Alert Mode, which allows to monitor the environmental condition (humidity and temperature) relative to programmable limits.
If you are familiar with our Grove system, you should be aware of how easy it is to get started with such a module that has a GROVE prefix. We design it as a Grove module so you dont need any bread-boarding, meshing or soldering to make it work.
Applications
Medical Use
Home/Outside Environment
Automobile
Food Processing
Industrial Freezers and Refrigerators
Technical details
Dimensions 89mm x140mm x 7.5 mm
Weight G. W 10g
Battery Exclude
Supply Voltage 5V or 3.3V
Current Consumption 100 uA
Temperature Measurement:
Range -40°C to 125°C
Accuracy ± 0.3
Humidity Accuracy ±2%
Communication Interface I2C
Dimensions 20mm x 40mm
Part List

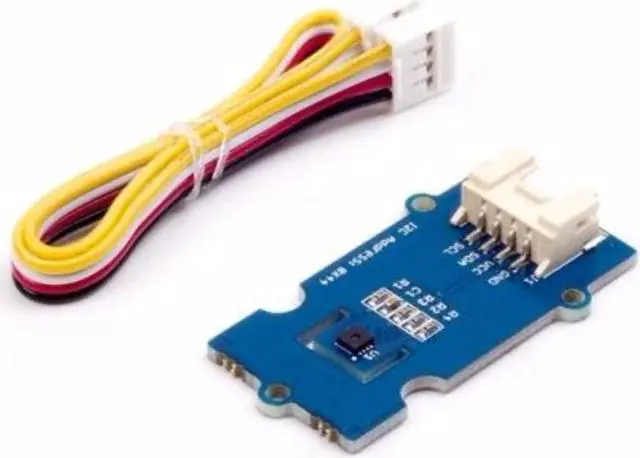

Grove - Temperature&Humidity Sensor (SHT31) *1
Grove Cable *1
The SHT31 Temperature & Humidity sensor could be the finest and highest-accuracy humidity sensor you can find, as it can acquire the relative humidity at only ±2% error. On the other side, it also features excellent performance in terms of temperature measurement, you can use it in some extreme conditions, like -40 degrees or 125 degrees, and it still keeps an accuracy of ± 0.3 degrees. It also features an Alert Mode, which allows to monitor the environmental condition (humidity and temperature) relative to programmable limits.
If you are familiar with our Grove system, you should be aware of how easy it is to get started with such a module that has a GROVE prefix. We design it as a Grove module so you dont need any bread-boarding, meshing or soldering to make it work.
Applications
Medical Use
Home/Outside Environment
Automobile
Food Processing
Industrial Freezers and Refrigerators
Technical details
Dimensions 89mm x140mm x 7.5 mm
Weight G. W 10g
Battery Exclude
Supply Voltage 5V or 3.3V
Current Consumption 100 uA
Temperature Measurement:
Range -40°C to 125°C
Accuracy ± 0.3
Humidity Accuracy ±2%
Communication Interface I2C
Dimensions 20mm x 40mm
Part List
Grove - Temperature&Humidity Sensor (SHT31) *1
Grove Cable *1
