NGW-1pc Grove UART WizFi360
- Compatible with multiple modes: Support SoftAP/Station/SoftAP+Station mode and TCP Server / TCP Client / UDP operating mode
- Efficient matching network: Support auto 20MHz / 40MHz bandwidth, UART to WIFI two-way transparent transmission function can enable users to quickly network
- Secure communication guarantee: Support WPA_PSK / WPA2_PSK encryption that provides privacy and security for data communication over the network.
- View network status in real-time: The keep-alive and 'ping' commands allow you to monitor the TCP connection and the current network state.
- Easy to use: Just a fast & simple plug-and-play device that allows you to easily add wireless capabilities.
- High compatible baud rate: Serial port baud rate up from 600bps to 2Mbps with 16 common values
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description

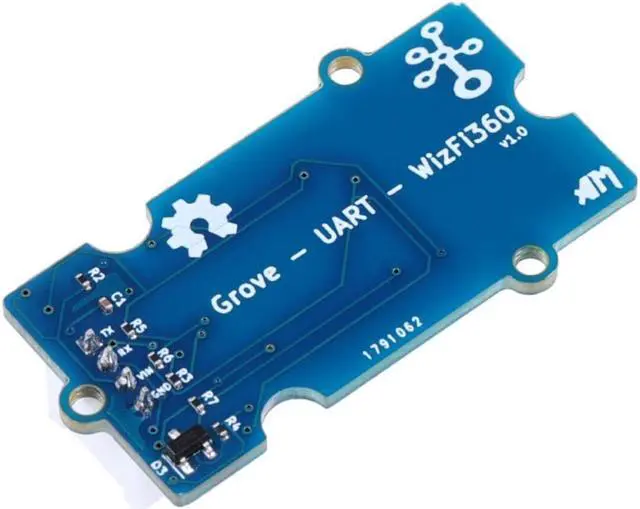

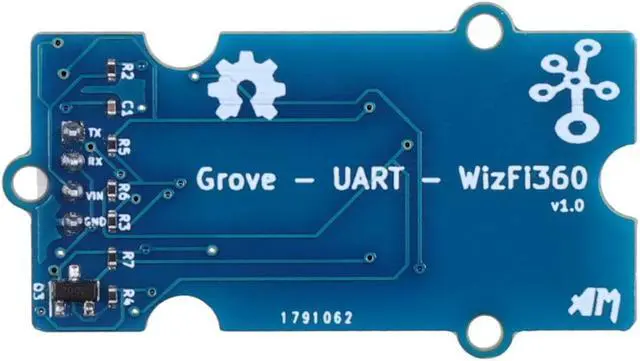

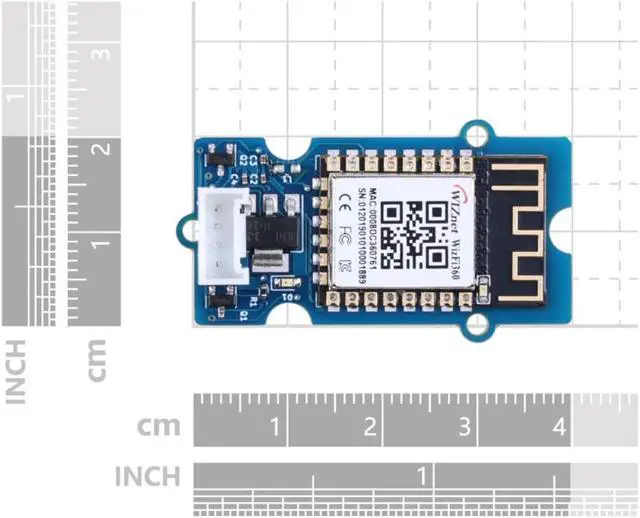

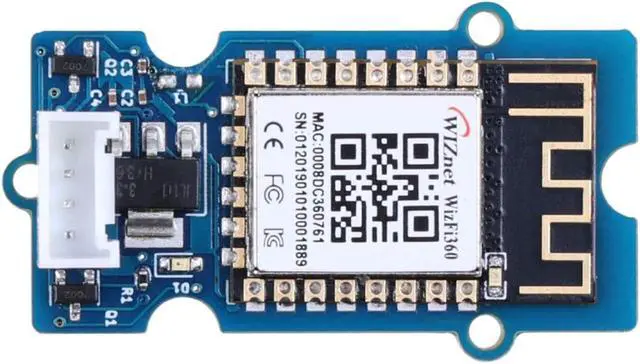

Grove UART WizFi360 is based on Wiznet's wizfi360 Wi-Fi module. It is a microcontroller that supports both TCP/IP and microcontrollers. It takes only a few lines of code to allow your microcontroller to interact with WiFi networks. Each WizFi360 module is pre-installed AT command set firmware, which means you can send simple text commands to control the device. And with connectivity provided through a 2.4GH z wireless connection, as well as WizFi360's compatibility with IEEE 802.11 b/g/n standards and support for SoftAP, StaTIon, and SoftAP+StaTIon modes. Grove UART WizFi360 saves a lot of time by being a standalone Internet support solution.
The story about Grove UART WizFi360, Grove - UART - WizFi360 is designed by Amal Mathew, he is a firmware engineer by profession and an electronics hobbyist by passion. Amal Mathew designed this Grove because by chance he got an opportunity to work with Wiznet's wizfi360 Wi-Fi module and see that Seeed is co-investing in Grove design activities on LinkedIn.
Grove UART WizFi360 has been licensed to Seeed to sell. Amal will provide the tech support and Seeed will fulfill the order with hardware quality guaranteed. If you are interested in Seeed Licensed Products Program, pls click here to find out more.
If you need tech support you can contact Amal by email at amal@tinkererway. com or through this website
Applications
Home automation
Sensor networks
Mesh networking
Wearable electronics
Baby monitor
Network Camera
Industrial wireless control
WiFi beacons
Smart power plug
Location-aware applications
supporting agreement:
802.11 b/g/n
frequency:
2.4 GHz to 2.5 GHz
Data rate:
11 Mb/s, 54 Mb/s
Interface Type:
Serial
Output:
19 dBm
Supply voltage - min:
3 V
Supply voltage - max:
3.6 V
Transmit Supply Current:
210 mA, 230 mA
Receive supply current:
110 mA
Lowest operating temperature:
- 40 C
Highest operating temperature:
+ 85 C
Antenna Connector Type:
PCB
Working power supply voltage:
3 V to 3.6 V
product type:
WiFi Modules
Protocol - WiFi - 802.11:
WiFi
Part List
Grove UART WizFi360
x1
Grove UART WizFi360 is based on Wiznet's wizfi360 Wi-Fi module. It is a microcontroller that supports both TCP/IP and microcontrollers. It takes only a few lines of code to allow your microcontroller to interact with WiFi networks. Each WizFi360 module is pre-installed AT command set firmware, which means you can send simple text commands to control the device. And with connectivity provided through a 2.4GH z wireless connection, as well as WizFi360's compatibility with IEEE 802.11 b/g/n standards and support for SoftAP, StaTIon, and SoftAP+StaTIon modes. Grove UART WizFi360 saves a lot of time by being a standalone Internet support solution.
The story about Grove UART WizFi360, Grove - UART - WizFi360 is designed by Amal Mathew, he is a firmware engineer by profession and an electronics hobbyist by passion. Amal Mathew designed this Grove because by chance he got an opportunity to work with Wiznet's wizfi360 Wi-Fi module and see that Seeed is co-investing in Grove design activities on LinkedIn.
Grove UART WizFi360 has been licensed to Seeed to sell. Amal will provide the tech support and Seeed will fulfill the order with hardware quality guaranteed. If you are interested in Seeed Licensed Products Program, pls click here to find out more.
If you need tech support you can contact Amal by email at amal@tinkererway. com or through this website
Applications
Home automation
Sensor networks
Mesh networking
Wearable electronics
Baby monitor
Network Camera
Industrial wireless control
WiFi beacons
Smart power plug
Location-aware applications
Specifications
supporting agreement:
802.11 b/g/n
frequency:
2.4 GHz to 2.5 GHz
Data rate:
11 Mb/s, 54 Mb/s
Interface Type:
Serial
Output:
19 dBm
Supply voltage - min:
3 V
Supply voltage - max:
3.6 V
Transmit Supply Current:
210 mA, 230 mA
Receive supply current:
110 mA
Lowest operating temperature:
- 40 C
Highest operating temperature:
+ 85 C
Antenna Connector Type:
PCB
Working power supply voltage:
3 V to 3.6 V
product type:
WiFi Modules
Protocol - WiFi - 802.11:
WiFi
Part List
Grove UART WizFi360
x1
