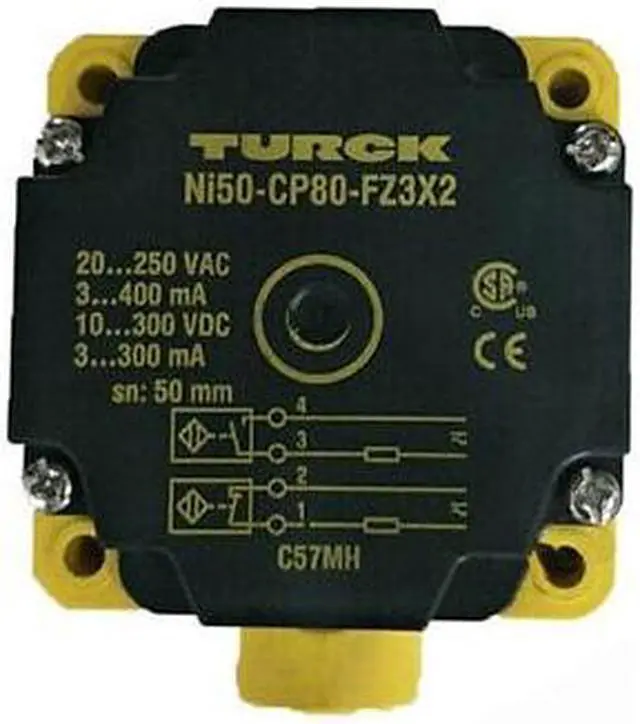

Turck NI50-CP80-FZ3X2 50MM Non-flush 2-Wire Inductive Proximity Sensor

Turck NI50-CP80-FZ3X2 50MM Non-flush 2-Wire Inductive Proximity Sensor

Brand:  Turck

Model:  NI50-CP80-FZ3X2

Product Type:  Sensor

Rated Switching Distance:  50 mm

Mounting Conditions:  Non-flush

Secured Operating Distance:  ≤ (0.81 × Sn) mm

Correction Factors:  St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4

Repeat Accuracy:  ≤ 2 % of full scale

Temperature Drift:  ≤ ±10 %

Hysteresis:  3…15 %

Operating Voltage:  20…250 VAC

Operating Voltage:  10…300 VDC

AC Rated Operational Current:  ≤ 400 mA

DC Rated Operational Current:  ≤ 300 mA

Frequency:  ≥ 50…≤ 60 Hz

Residual Current:  ≤ 1.7 mA

Isolation Test Voltage:  ≤ 1.5 kV

Surge Current:  ≤ 8 A (≤ 10 ms max. 5 Hz)

Voltage Drop at Ie:  ≤ 6 V

Output Function:  2-wire, Connection programmable, 2-wire

Smallest Operating Current:  ≥ 3 mA

Switching Frequency:  0.02 kHz
