2PCS Mini Human Body Infrared Sensor Outdoor Indoor Ultra-Thin Infrared Body Sensor Switch LED Flood Light AC85-265V PIR Motion Sensor Adjustable(12mm)
- Waterproof Flame Retardant Material, Support Indoor Outdoor InstallationThe shell is made of high quality hard plastic with waterproof IP54, flame retardant, strong and durable,you can use it safely no matter indoors or outdoors. Install sensor light in garage, stairs, corridor, basement, patio, make your life more intelligent and convenient.
- 3 Parameter Free Adjustment & Easy Wiring"SENS" control sensing distance, max 20ft; "TIME" controls the duration of the light, 3 seconds to 5 minutes; "LUX" light sensitivity (2 ~ 2000 Lux) are adjustable, you can improve / reduce the sensitivity according to different use scenarios, flexible and energy-saving.
- High SensitivityPIR motion sensor is suitable for day and night security lighting. Max detection distance 20 feet, detection range of 120 ° lighting without dead ends. The recommended mounting height of the sensor is about 6 - 9ft to get the best monitoring range and distance.
- Support Day / Night Dual Mode, More Choices For YouTurn the "LUX" knob to the sun position to work in daylight, moon NIGHT mode only works in the evening or dark environment, by controlling the threshold, your sensor light can work even in the not so dark night.
- Wide ApplicationThe pir sensor probe is compatible with a variety of devices: solar lights, closet lights, ceiling lights, incandescent lights, LED light strips (<50w), exhaust fans, alarm light, it is a good backup replacement sensor.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

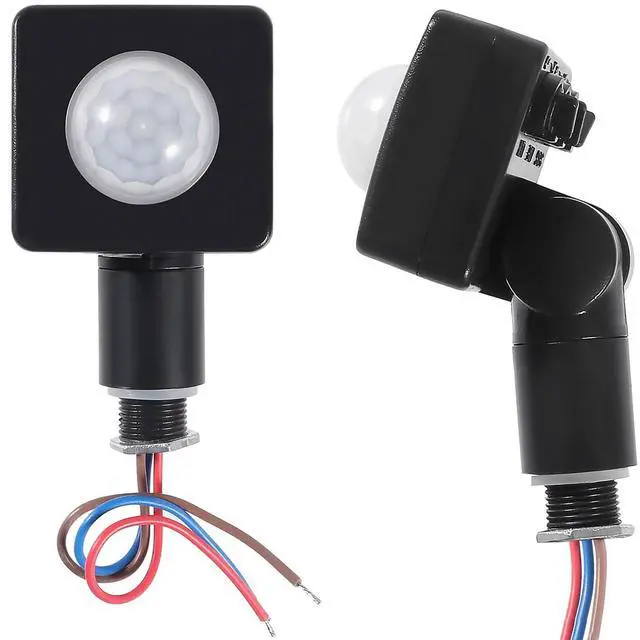

AITIAO Mini Human Body Infrared Sensor Ultra-thin Infrared Body Sensor Switch LED Flood light PIR Motion Sensor Adjustable

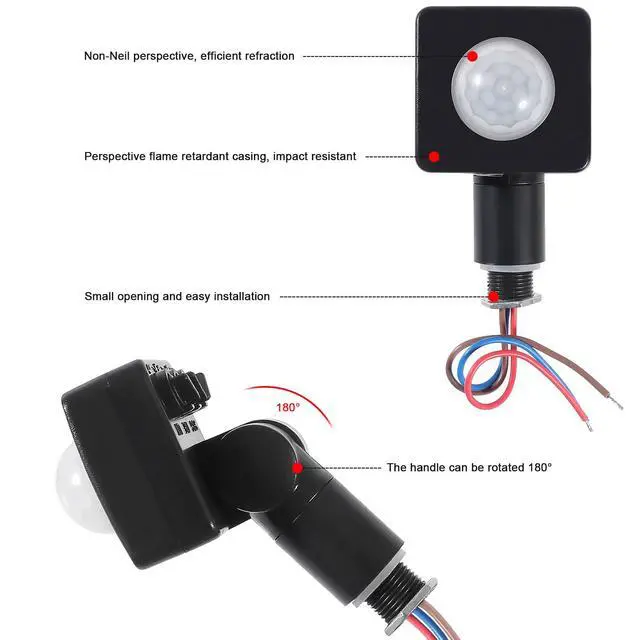

Human Body Infrared Sensor features:
- Sensing distance / light intensity / power-on time adjustable
- Small size and high sensitivity.
- 160 degree monitoring range.
- Fresnel perspective, efficient refraction.
- Flame-retardant casing, impact resistant.
Specification:
- Detection range: 160 degrees
- Detection distance: 6-8M (25 degrees Celsius)
- Ambient lighting: 2-2000 LUX (adjustable)
- Working humidity: less than 93% RH

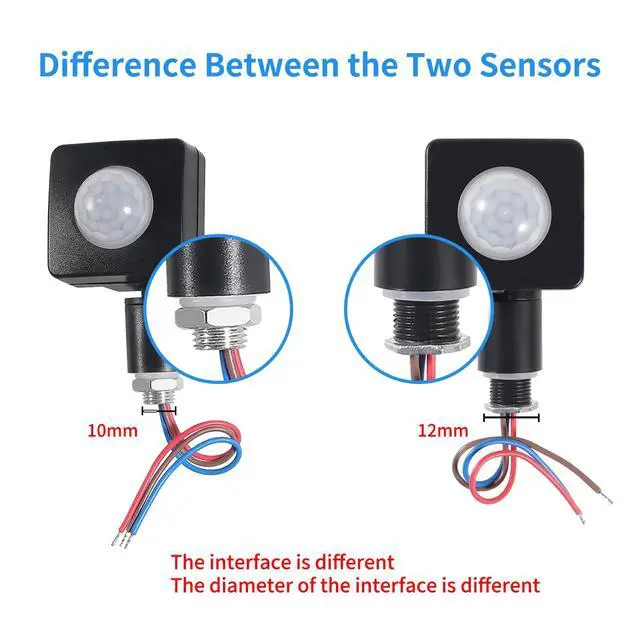

- Installation method: open type ( interface 12mm)
- Working voltage: AC85-265V
- Delay time: 8 seconds - 6 minutes (adjustable)
- Working temperature: -10 degrees Celsius - 40 degrees Celsius
- Installation height: 1.8m-2.5m

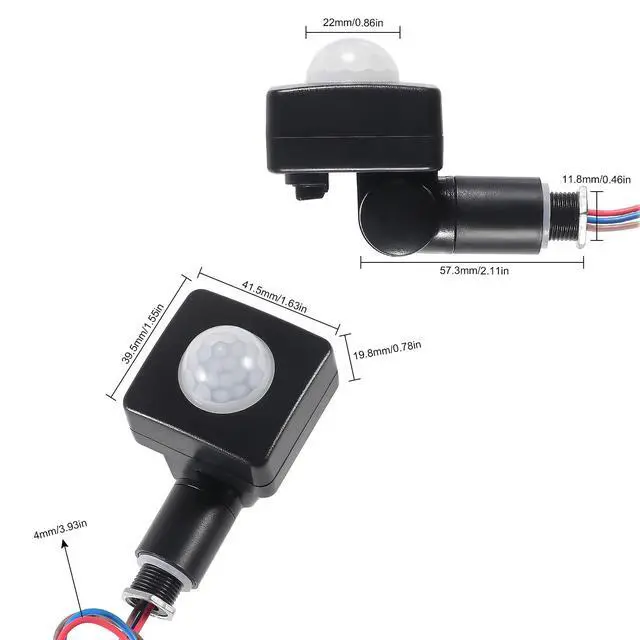

- Dimensions: 42*40*20mm

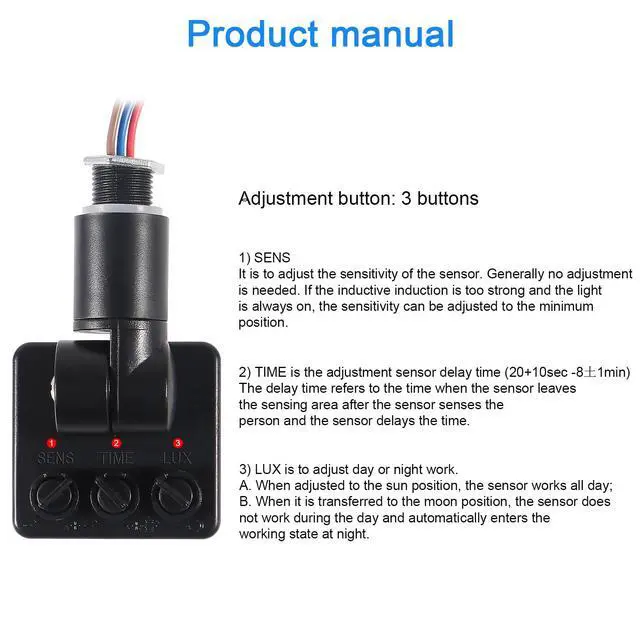

3 Adjustment Switches:
1) LUX switch is to adjust day or night work.
A. When adjusted to the sun position, the sensor works all day;
B. When it is transferred to the moon position, the sensor does not work during the day and automatically enters the working state at night.
2) TIME switch is to adjust the sensor delay time (20±10sec~8 1min)
The delay time refers to the time when the sensor leaves the sensing area after the sensor senses the person and the sensor delays the time.
3) The SENS switch is the sensitivity of the adjustment sensor. Generally no adjustment is needed.
If the inductive induction is too strong and the light is always on, the sensitivity can be adjusted to the minimum position.

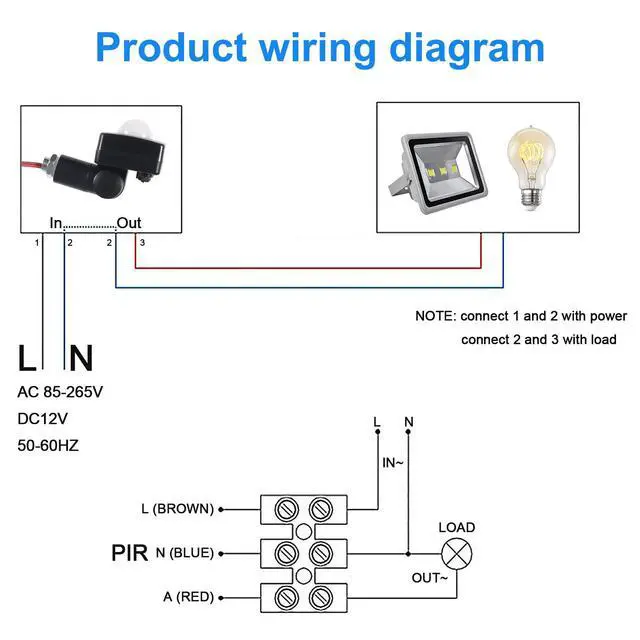

Wiring:
Blue for neutral (N), brown for fire wire input (L), red for fire wire output (LO), be careful not to connect 3 wires wrongly, otherwise the
