Basic function

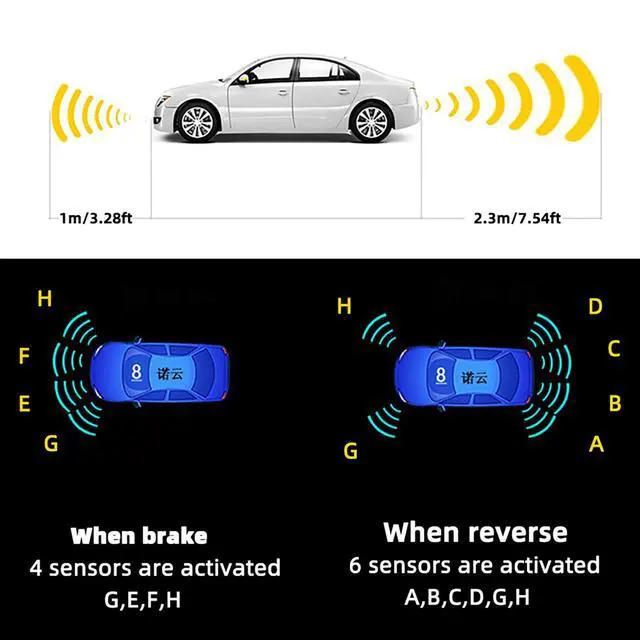

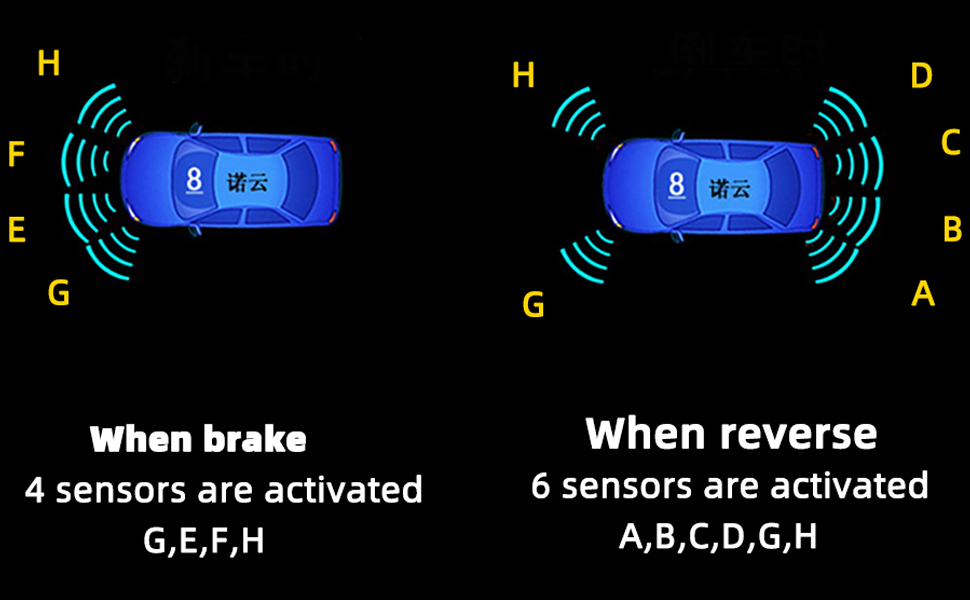

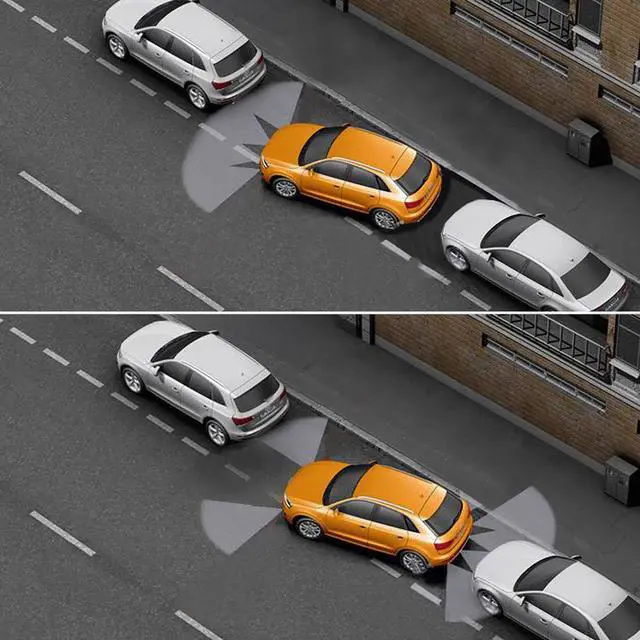

When reversing
when reversing the car, it will start the rear 4 sensors and the front left and right 2 sensors, a total of 6 sensors to assist driving
When braking
when driving the vehicle to brake, the four sensors in front of the vehicle will be activated to prevent collision and collision. When you release the brake, the reversing radar will work for about 15 seconds before it stops to help you pass through the obstacle environment smoothly

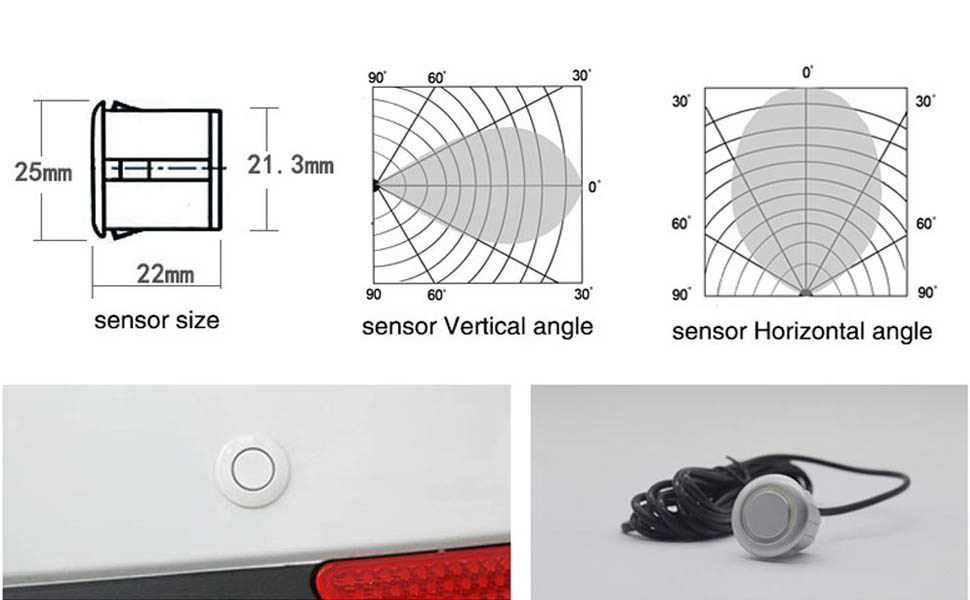

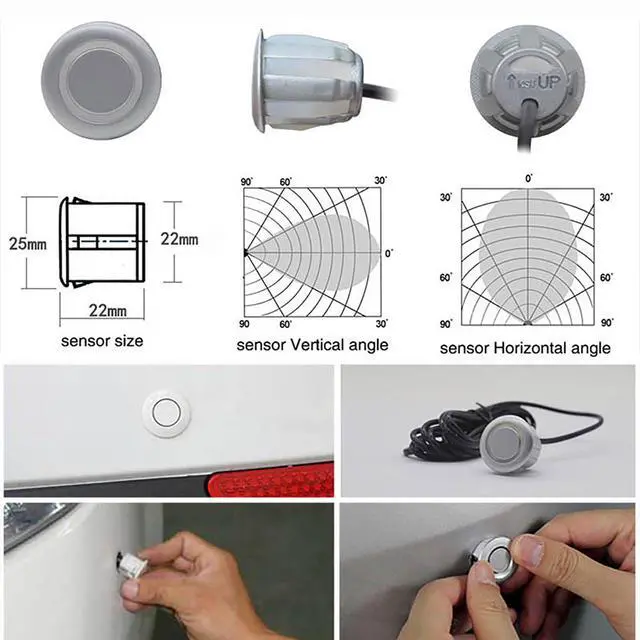

Sensors
The sensor is filled with silica gel, which is super waterproof and is not afraid of harsh working environments.

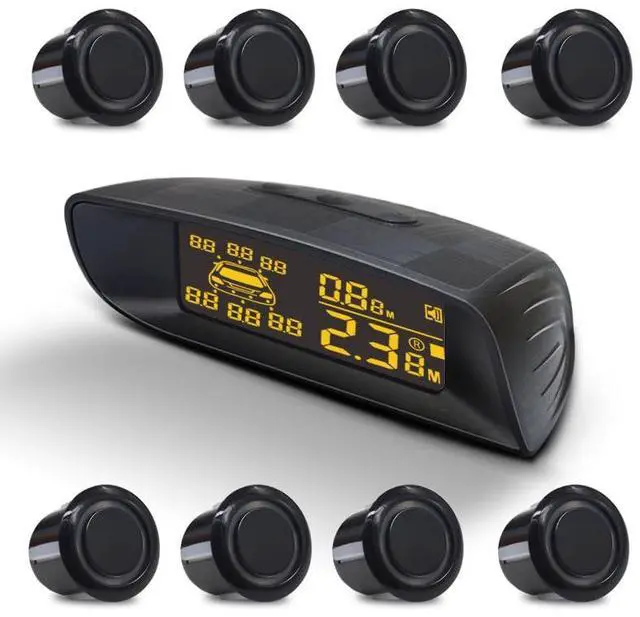

Beautiful and stylish display

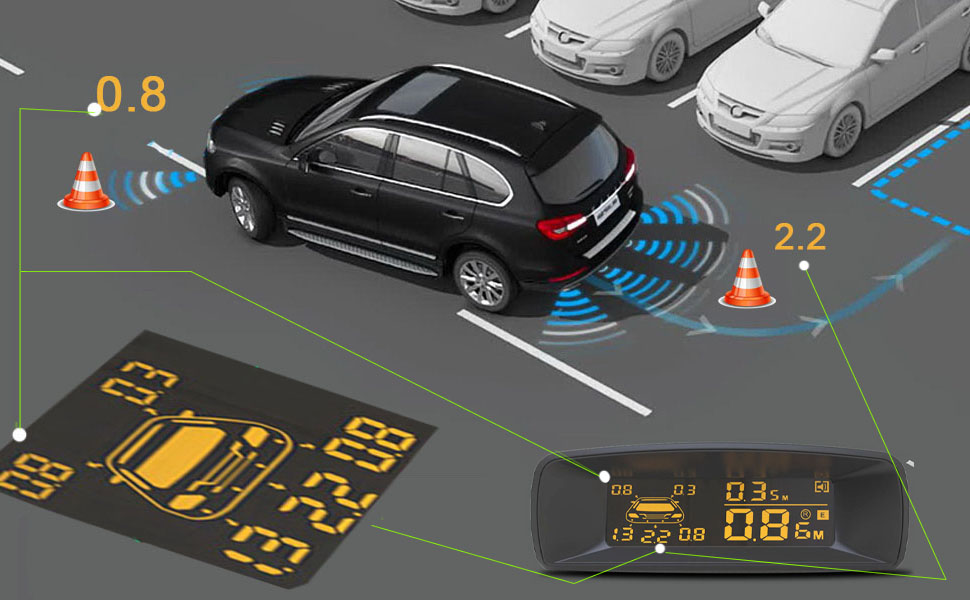

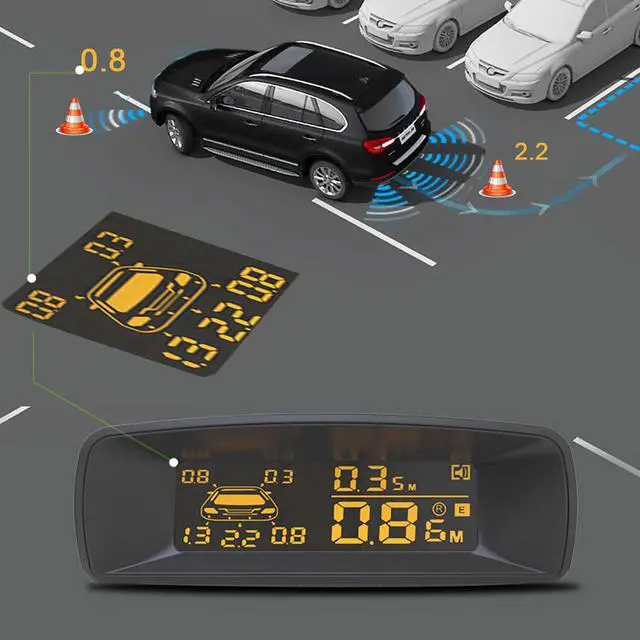

- Special function: The display has 8 digits, distinguishes the position and distance of obstacles, and distinguishes obstacles in all directions. It allows the driver to understand the obstacles and plays a good auxiliary role. The traditional reversing radar has only one display. It is impossible to distinguish the distance and orientation of obstacles.

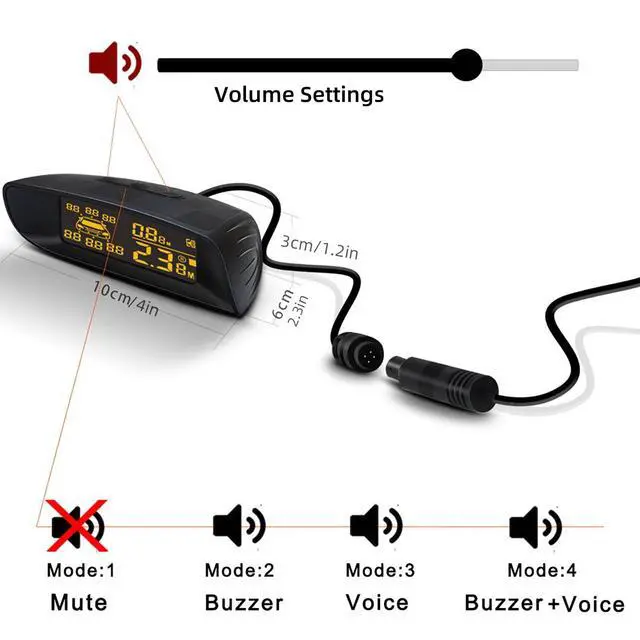

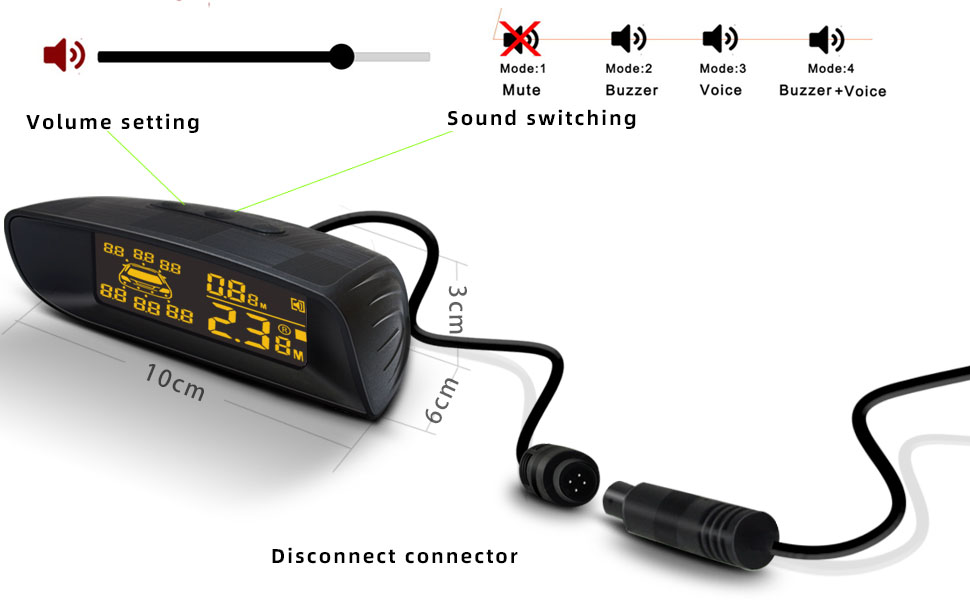

- The product has 4 alarm modes and 7 levels of volume can be adjusted. The alarm sounds are: mute, buzzer, voice, buzzer + voice, which can be easily switched through the buttons on the display.
- The display connection line adopts a separate connector, which makes the installation easier and more convenient
Front radar detection distance: 0.2~1.0m
Rear radar detection distance: 0.2~2.3m
- Smart start function:
When driving the vehicle to brake, the four sensors in front of the vehicle will be activated to prevent collisions and collisions. When you release the brake, the reversing radar will work for about 15 seconds and then stop to help you pass the obstacle environment smoothly
- The product uses flat dual-angle sensors to reduce false alarms and make the detection distance more accurate. We are professional, so we know how to make good sensors.

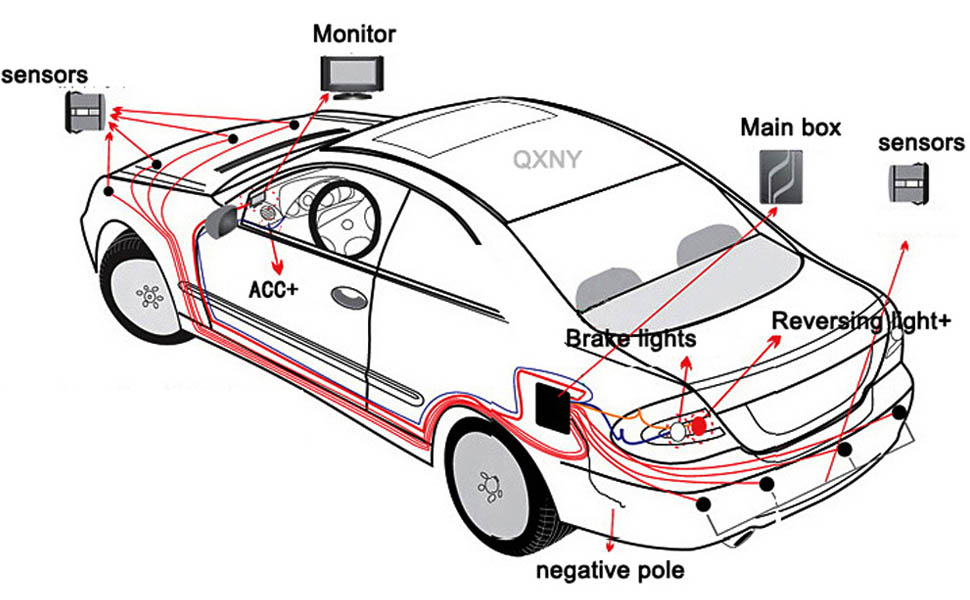

- Installation display:
- Red cable - ACC+
- Yellow cable - reversing light+
- White cable - brake light+
- Black cable - negative pole
A :Key Installation Points
1:Mounting Height(Purpose: To prevent ultrasound from detecting the ground and generating false alarms)
Rear Sensors: >50 cm | Above ground
Front Sensors: >45 cm | Above ground
2:Orientation Alignment
Sensor surface must be perpendicular to the ground; no tilting allowed.
generating false alarms))
3: Control Unit Placement
Keep away from electronic devices (e.g., dashboard screens, dashcams). Do NOT place inside the vehicle fuse box.
B:Troubleshooting Guidelines
Single Sensor Test
1:Connect only one sensor; disconnect others.Hold the sensor facing the sky or an open area.
Expected Result: No alarm triggered.
Fault Indication: If alarm triggers, replace the sensor.
