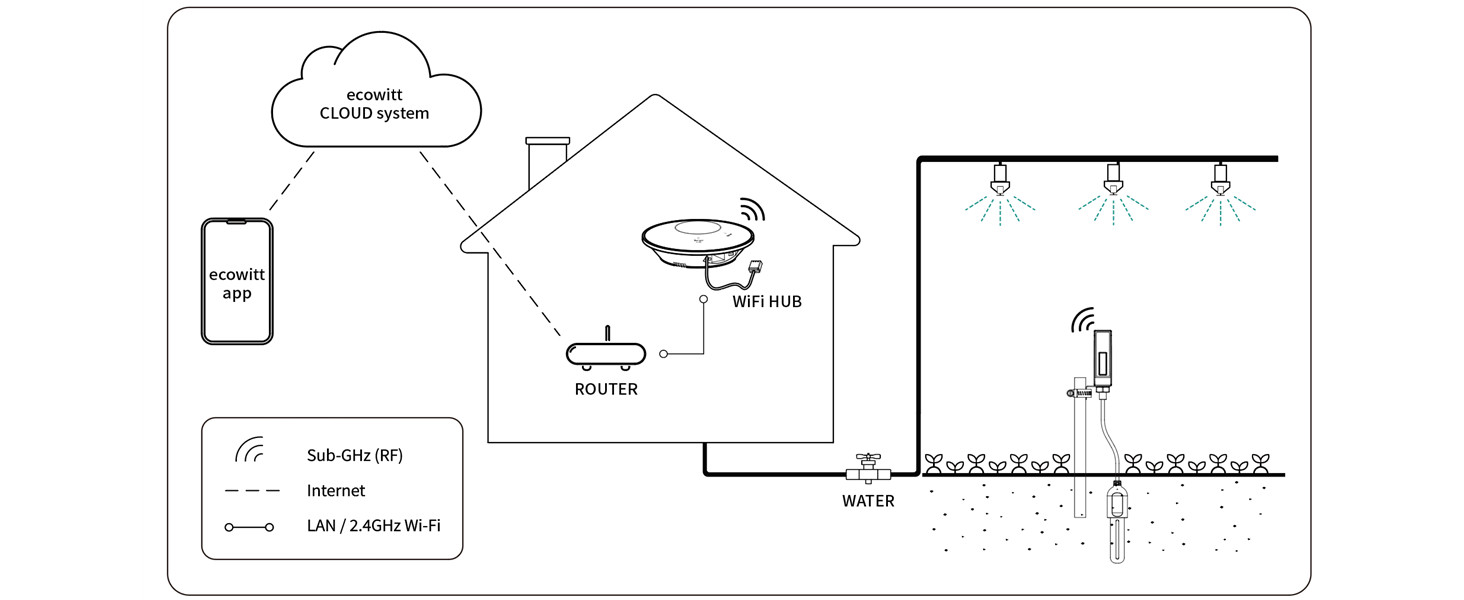

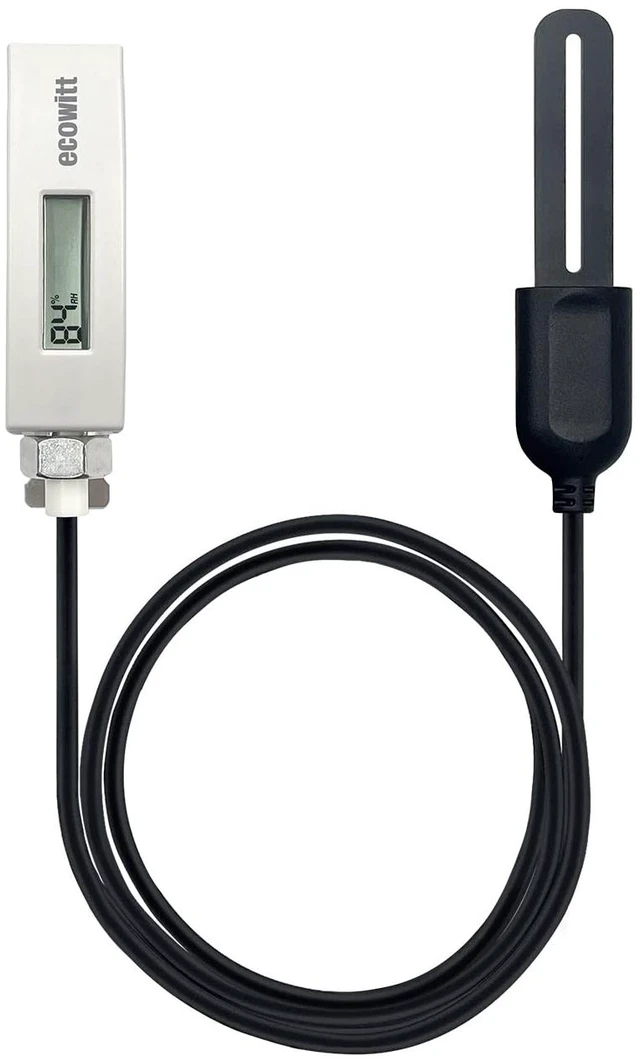

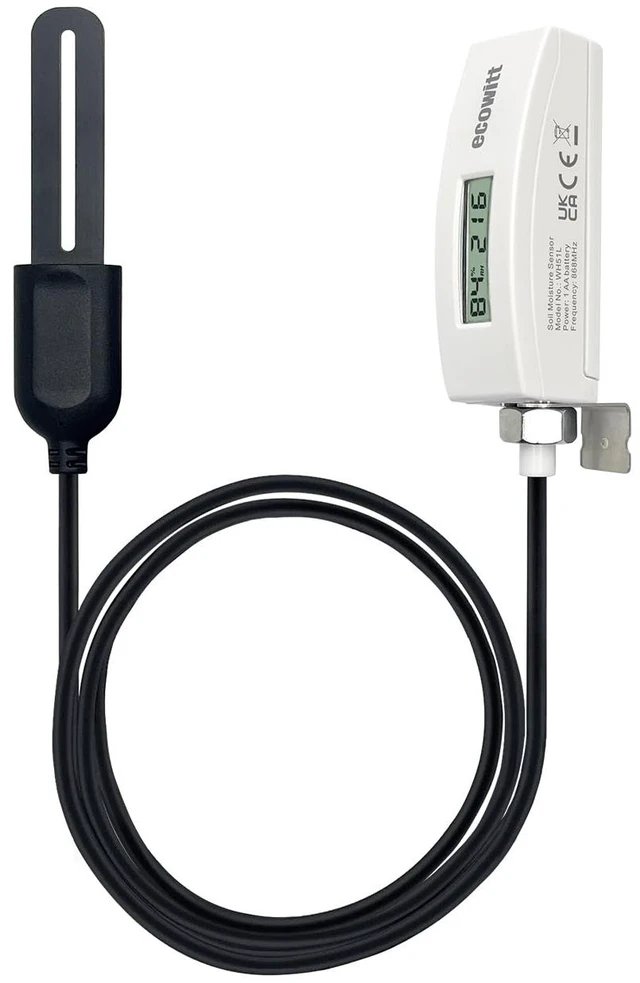

Ecowitt WH51L soil moisture sensor with 1m/3.28ft PVC sensor wire could measure soil moisture. The LCD screen could display the real-time data. The data can be streamed by Ecowitt Wi-Fi Gateway (sold separately) and they can be viewed on the Ecowitt APP after the Wi-Fi configuration is done.
1
2
Specification
WH51L
Comparision
0~100%(99% on LCD) | Moisture Range | 0~100% |
±5% | Accuracy | ±5% |
1% | Resolution | 1% |
LCD Display | Display | × |
1m/3.28ft PVC | Sensor Wire | × |
8 | Quantity of Channels | 8 |
v(work with gateway) | Upload to Internet | v(work with gateway) |
0~100%(99% on LCD) | Moisture Range | 0~100% |
±5% | Accuracy | ±5% |
1% | Resolution | 1% |
LCD Display | Display | × |
1m/3.28ft PVC | Sensor Wire | × |
8 | Quantity of Channels | 8 |
v(work with gateway) | Upload to Internet | v |
0~100%(99% on LCD) | Moisture Range | 0~100% |
±5% | Accuracy | ±5% |
1% | Resolution | 1% |
LCD Display | Display | LCD Display |
1m/3.28ft PVC | Sensor Wire | × |
8 | Quantity of Channels | 1 |
v(work with gateway) | Upload to Internet | × |
Package List
- 1 x Soil Moisture Sensor
- 1 x Screw ST D5.8*M3*15 Stainless Steel PA for Mounting
- 1 x Stainless Steel Loop 19~29 8mm for Mounting
- 1 x Fix Bracket 35.1*21*20mm Stainless Steel for WH51L
- 1 x User Manual
Ecowitt
Gateway
Weather Stations with Display
Weather Stations with Gateway
IoT Device
WS85 Weather Stations
Air Quality Sensor
Rain Gauge
Garden
Thermometer and Hygrometer
Detector
ECOWITT Ecosystem
Ecowitt WH51L soil moisture sensor with 1m/3.28ft PVC sensor wire could measure soil moisture. The LCD screen could display the real-time data. The data can be streamed by Ecowitt Wi-Fi Gateway (sold separately) and they can be viewed on the Ecowitt APP after the Wi-Fi configuration is done.
Ecowitt GW1200 WiFi Gateway

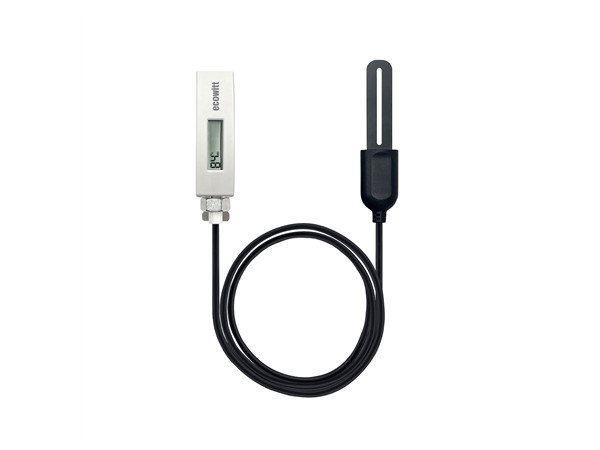

ecowitt WH51L soil moisture sensor
Specification
| Dimensions of Housing | 102.5×49×24(mm) |
|---|---|
| Dimensions of Sensor Probe | 122×29×14(mm) |
| Length of Sensor Wire | 100(mm) |
| Weight | 122(g) |
| Material of Housing | ABS+PC |
| Material of Sensor Wire | PVC |
| Material of Probe | FR-4(Glass Fiber Reinforced Epoxy) |
| Measurement Principle | Frequency Domain Reflectometry |
| Moisture Range | 0~100%(Ecowitt APP/display consoles/website); 0~99%(WH51L’s LCD screen) |
| Accuracy | ±5% |
| Resolution | 1% |
| Working Temperature Range | -10°C to 50°C(14? to 122?) |
| Sensor reporting interval | 70 seconds |
| Transmission distance | 100m(300 feet) in open field |
| Device Casing Waterproof Level | IP66 |
| Sensor Probe Waterproof Level | IP68 |
Comparision
WH51L
Moisture Range
0~100%(99% on LCD)
Accuracy
±5%
Resolution
1%
Display
LCD Display
Sensor Wire
1m/3.28ft PVC
Quantity of Channels
8
Upload to Internet
v(work with gateway)

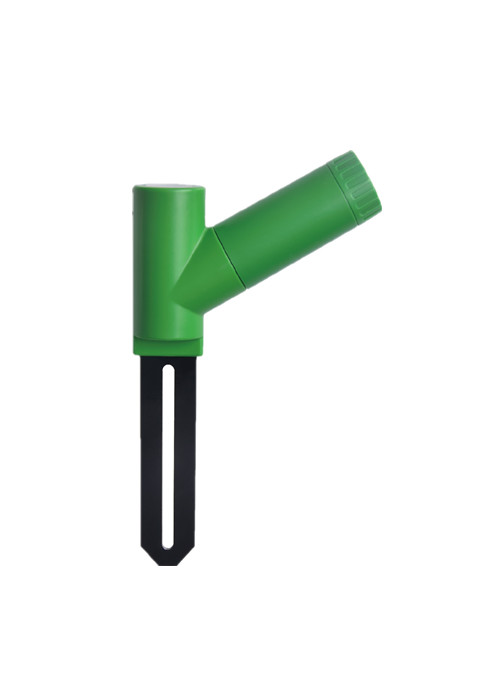

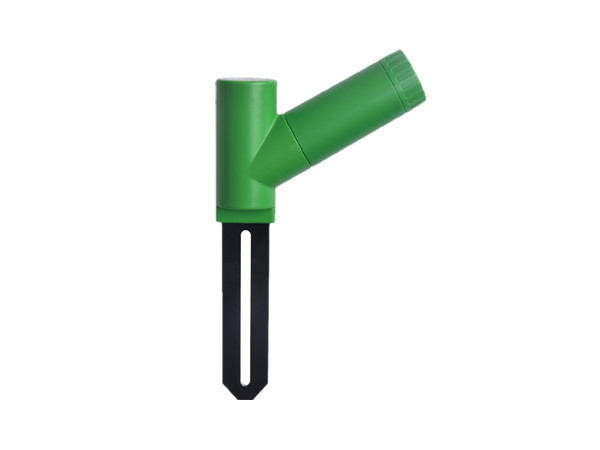

WH51
Moisture Range
0~100%
Accuracy
±5%
Resolution
1%
Display
×
Sensor Wire
×
Quantity of Channels
8
Upload to Internet
v(work with gateway)

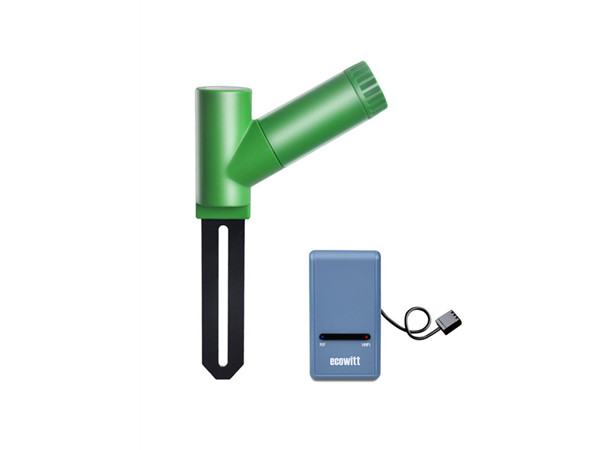

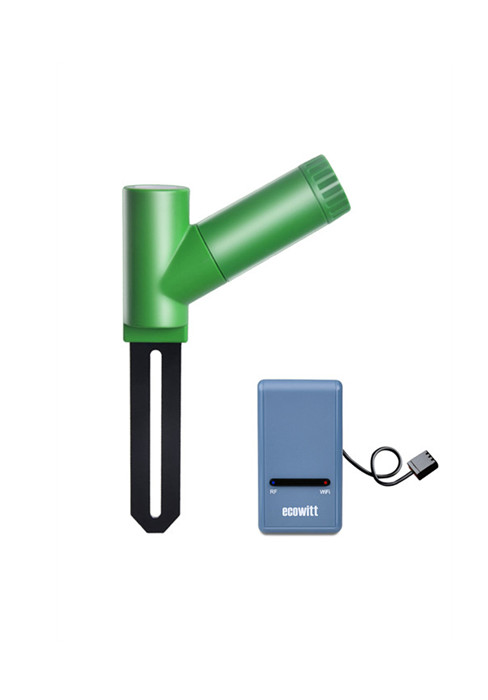

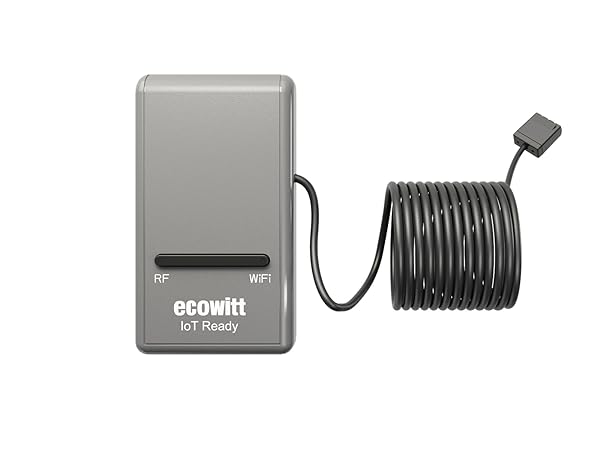

GW1106
Moisture Range
0~100%
Accuracy
±5%
Resolution
1%
Display
×
Sensor Wire
×
Quantity of Channels
8
Upload to Internet
v

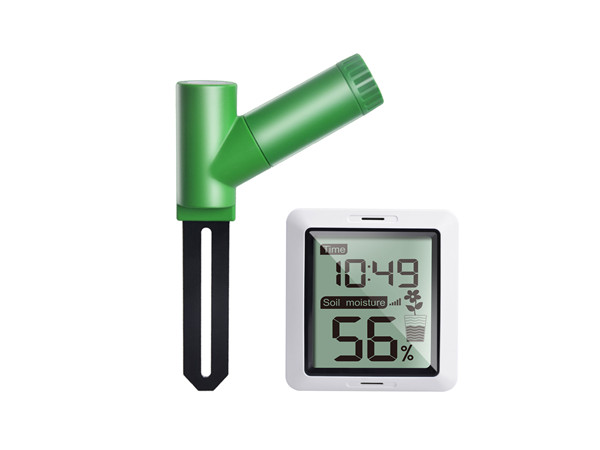

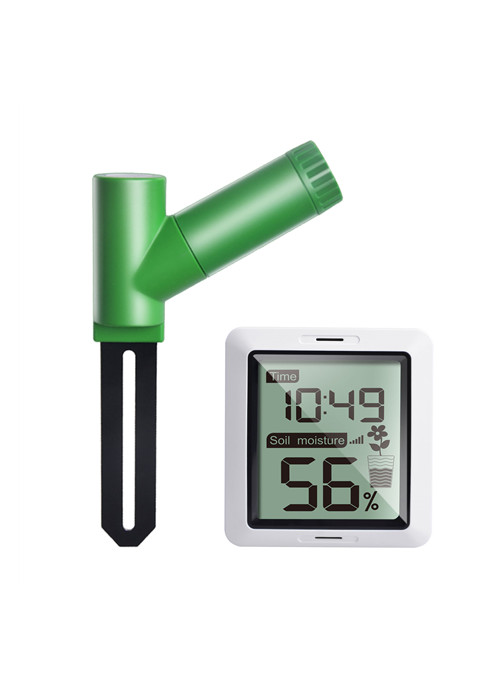

WH0291
Moisture Range
0~100%
Accuracy
±5%
Resolution
1%
Display
LCD Display
Sensor Wire
×
Quantity of Channels
1
Upload to Internet
×
Package List
- 1 x Soil Moisture Sensor
- 1 x Screw ST D5.8*M3*15 Stainless Steel PA for Mounting
- 1 x Stainless Steel Loop 19~29 8mm for Mounting
- 1 x Fix Bracket 35.1*21*20mm Stainless Steel for WH51L
- 1 x User Manual
