MICS-4514 Air Quality Gas Sensor Module - CO, NO2, NH3, CH4 Concentration Detection, 5V Dual Channel Analog Output for MCU Development
- [Advanced Dual-Sensor Technology] Equipped with the highly sensitive MICS-4514 chip, which integrates two independent sensing elements on one package. Designed to detect both reducing gases (like Carbon Monoxide) and oxidizing gases (like Nitrogen Dioxide) simultaneously.
- [Comprehensive Gas Detection] Highly responsive to a wide range of hazardous and environmental gases, including CO (1-1000ppm), NO2 (0.05-10ppm), NH3 (Ammonia), CH4 (Methane), and Ethanol. Ideal for indoor air quality monitoring.
- [Universal MCU Compatibility] Operates on a standard 5V DC power supply. Outputs dual-channel analog voltage signals (AOUT1 / AOUT2) that can be easily read by the ADC (Analog-to-Digital Converter) of any 8-bit or 32-bit Microcontroller (MCU, 8051, ARM, PIC).
- [Rapid Response & Stability] Features a built-in heating element to maintain optimum sensing temperature. Delivers fast response times, high sensitivity, and excellent long-term stability for continuous environmental monitoring projects.
- [Broad Application Scenarios] The perfect electronic component for DIY smart home ventilation systems, industrial leak detection alarms, air purifier upgrades, and environmental science engineering projects.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Professional MICS-4514 Gas Sensor Module for Air Quality Monitoring
Build highly reliable environmental monitoring systems with this compact MICS-4514 Gas Sensor Module.this sensor provides precise concentration detection of various toxic and flammable gases in the atmosphere.
Dual-Channel Detection Capability
the MICS-4514 features a dual-sensor architecture:
- Sensor 1 (RED): Optimized for reducing gases such as Carbon Monoxide (CO), Hydrogen (H2), Ammonia (NH3), Methane (CH4), and Ethanol.
- Sensor 2 (OX): Specifically optimized for oxidizing gases, primarily Nitrogen Dioxide (NO2).
Easy Hardware Integration

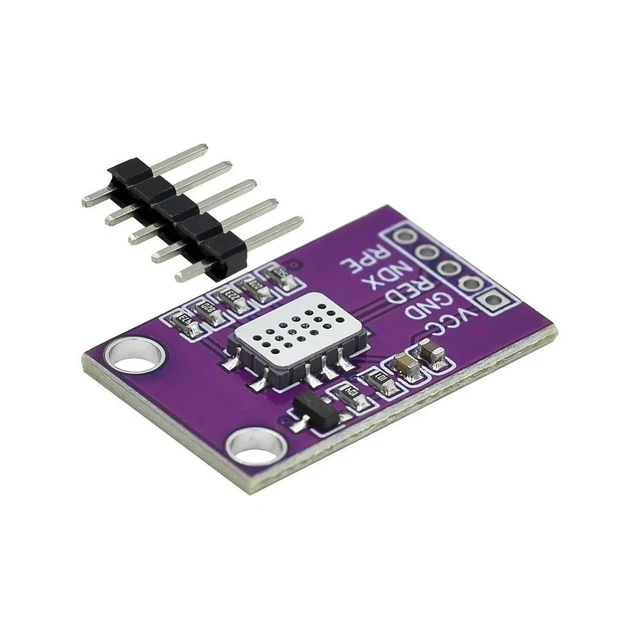

The module is mounted on a durable PCB with standard pin headers. By supplying a steady 5V DC, the module outputs analog voltage signals proportional to the gas concentration, making it exceptionally easy to integrate with the ADC pins of your custom development board.
Key Technical Specifications:
- Core Sensor: MICS-4514
- Operating Voltage (VCC): 5V DC
- Detectable Gases & Ranges:
- CO (Carbon Monoxide): 1 - 1000 ppm
- NO2 (Nitrogen Dioxide): 0.05 - 10 ppm
- NH3 (Ammonia): 1 - 500 ppm
- CH4 (Methane): >1000 ppm

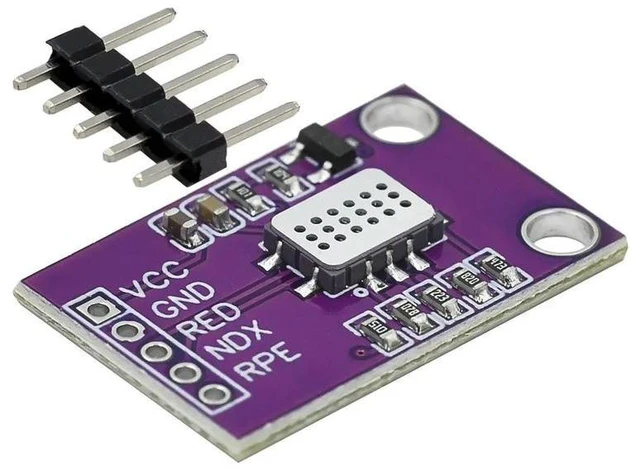

- Interface Pins: VCC, GND, AOUT1 (CO/Reducing), AOUT2 (NO2/Oxidizing)
- Operating Temperature: -30°C to +85°C
