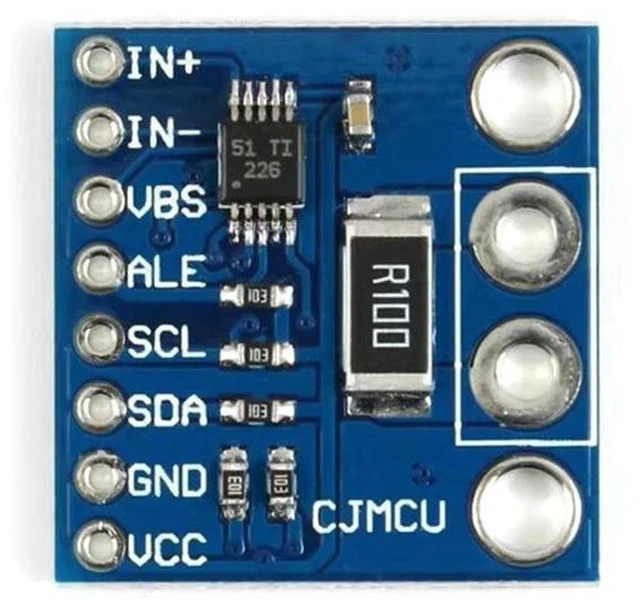

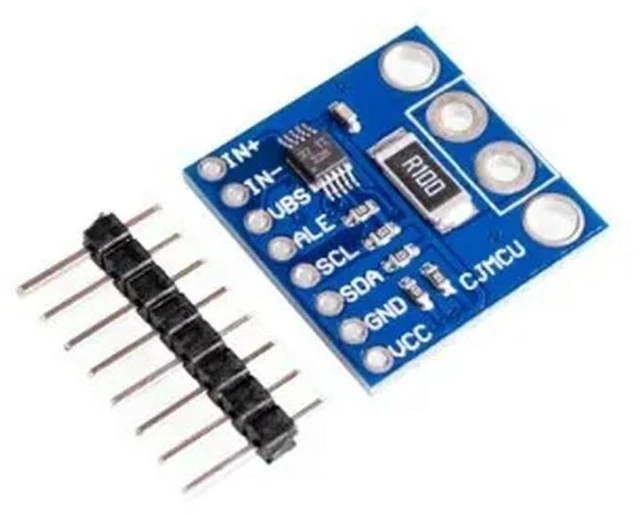

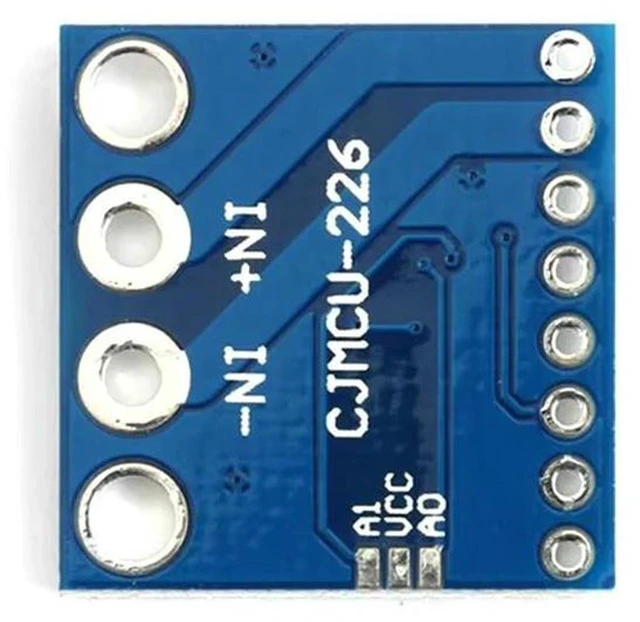

INA226 Bi-directional Current and Power Monitoring Module I2C IIC Voltage Sensor Board High Precision Electrical Measurement Meter for Battery Monitoring and Power Supply Testing
- Uses the INA226 high-precision power monitoring chip to measure bus voltage and shunt current for electrical parameter monitoring.
- Supports bi-directional measurement, monitoring both positive and negative current flow in electrical power systems.
- Monitors bus voltage, shunt current, and power, covering the electrical parameters specified for this module.
- Calculates power automatically from monitored electrical parameters, providing a power reading without a separate manual calculation.
- Communicates through an I2C/IIC interface, which connects to single-chip microcomputers for data reading.
- Enables real-time reading of electrical parameters through a connected single-chip microcomputer.
- Supports battery power detection and power supply testing, the monitoring applications specified in the product information.
- Can be used for electronic experiments and DIY power monitoring projects, as described for the module.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Description:
The INA226 sensor module monitors electrical parameters for battery monitoring, power supply testing, electronic experiments, and DIY power monitoring projects. It communicates with a microcontroller through an I2C/IIC interface for real-time readings.
Core Selling Points:
Supports bi-directional monitoring of bus voltage and shunt current, with power calculated automatically. The source describes high-precision measurement, simple wiring, and a compact PCB design for real-time testing.
Technical Specifications:
Model: INA226 Sensor Module. Chip: INA226. Communication interface: I2C/IIC. Function: bi-directional bus voltage, shunt current, and power monitoring.
Before Purchase:
Confirm that your microcontroller or development board supports an I2C/IIC connection.
