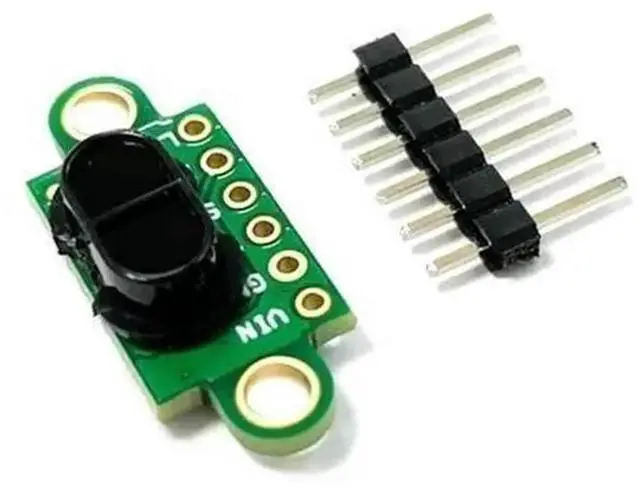

VL53L5X V2 TOF Time of Flight Multi-Area Ranging Sensor Module, VL53L5CX Wide Field View 8x8 Zones Distance Detection Module with Protective Cover, I2C Interface Laser Ranging Sensor for Robot Obstacl

This VL53L5X V2 TOF ranging sensor module adopts high-performance VL53L5CX FlightSense chip. It supports 8×8 multi-area matrix ranging, which can detect multiple targets simultaneously in the field of view. Featuring a wide 63° diagonal field of view and a maximum detection range of 4 meters, it supports up to 60Hz frame rate under 4×4 zone mode.

Different from ordinary infrared distance sensors, direct ToF technology achieves accurate absolute distance measurement without being affected by target color and surface reflectance. Equipped with a matched protective cover, the module restrains optical crosstalk and prevents dust from contaminating the optical window.

It communicates via standard I2C bus, works at 3.3V voltage, and supports low-power sleep mode with interrupt trigger function. Widely applied in robot obstacle avoidance, 3D space perception, gesture recognition, smart human presence detection, automatic equipment and various embedded DIY development projects.
