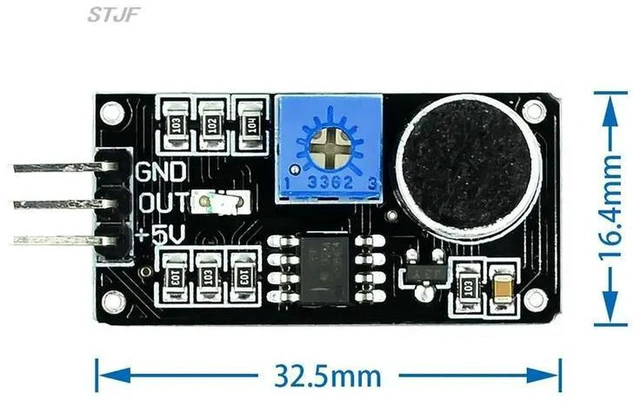

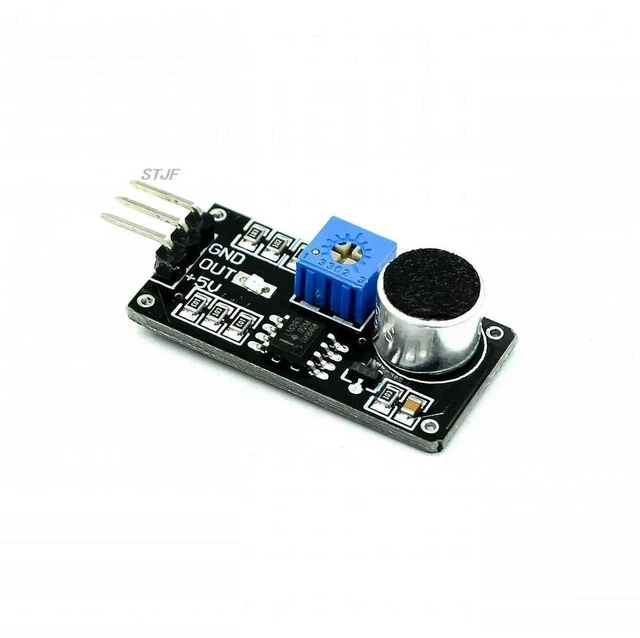

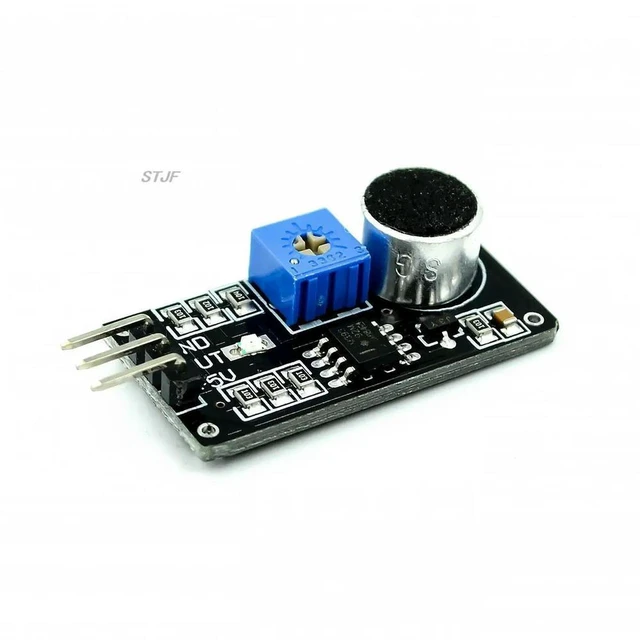

AJMRTC Sound Detection Sensor Module, Sound Sensor with Single Channel Signal Output, LM393 Microphone Sound Trigger Switch for Arduino Raspberry Pi Electronic DIY Projects
- - Single-channel sound signal output module with electret microphone for sound intensity detection
- - Onboard adjustable potentiometer to set sound trigger threshold for different usage scenarios
- - Built-in LM393 comparator and LED indicator for intuitive sound status observation
- - Wide working voltage DC3.3V-5V, easy wiring and compatible with MCU control boards
- - Compact size with mounting holes, great for voice trigger, sound alarm and smart DIY projects
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC sound detection sensor module adopts high-sensitivity electret microphone and LM393 comparator chip to capture ambient sound signals and output single-channel switching signal. Users can adjust detection sensitivity through the onboard potentiometer to set trigger volume threshold. The LED indicator lights up once sound exceeds the preset value, convenient for circuit debugging. Powered by DC3.3V-5V, it can be directly connected with Arduino, Raspberry Pi and other microcontrollers. Widely applied for sound-activated switches, noise monitoring, sound alarm, robot and other electronic prototype making.
- Brand: AJMRTC
- Product Name: Sound Detection Sensor Module
- Chip: LM393 Comparator
- Sensor: Electret Condenser Microphone
- Power Supply: DC 3.3V - 5V
- Signal Output: Single Channel Signal Output
- Adjustable Feature: Onboard Potentiometer for Sensitivity Tuning
- Application: Arduino, Raspberry Pi, Sound Trigger, Electronic DIY
