AJMRTC GY-271 QMC5883L Triple Axis Magnetic Field Compass Magnetometer Sensor Module, 3V-5V IIC Digital Electronic Compass for Arduino Raspberry Pi STM32, Navigation Robotics DIY Project
- - Built-in QMC5883L chip, 3-axis magnetic field detection to calculate compass heading
- - IIC (I2C) communication interface, simple connection with mainstream microcontrollers
- - Wide working voltage DC 3V-5V, low power consumption for long-running projects
- - Magnetic measurement range ±8 Gauss, high resolution for accurate orientation reading
- - Compact PCB design with DRDY pin, ideal for robot navigation and electronic experiments
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

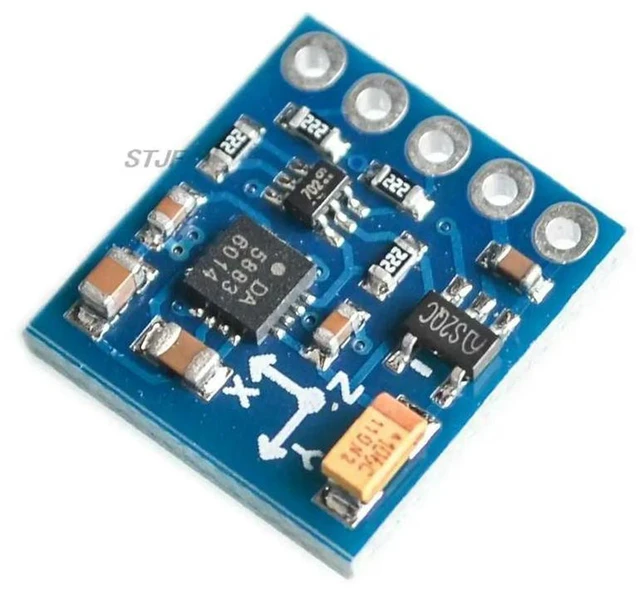

AJMRTC GY-271 magnetometer module adopts QMC5883L three-axis magnetic sensor chip, which can detect the magnetic field of X, Y and Z axes simultaneously to output direction data. It supports IIC communication protocol and works under DC 3V to 5V power supply, with ultra-low power consumption. The module features ±8 Gauss measuring range and high resolution, and the DRDY data ready pin helps users quickly capture valid data.
It can be directly connected to Arduino, Raspberry Pi, STM32 and other development boards. Widely used for robot navigation, drone orientation, electronic compass, magnetic field detection and various DIY electronic projects. The small size saves space on your circuit design. Please keep away from strong magnetic interference during use to guarantee stable measurement results.
- Brand: AJMRTC
- Model: GY-271
- Sensor Chip: QMC5883L
- Axis: 3-Axis (X,Y,Z)
- Operating Voltage: DC 3V ~ 5V
- Communication: IIC(I2C)
- Magnetic Measuring Range: ±8 Gauss
- Resolution: 12-bit
- Data Ready Pin: DRDY
- Operating Temperature: -40 ~ 85

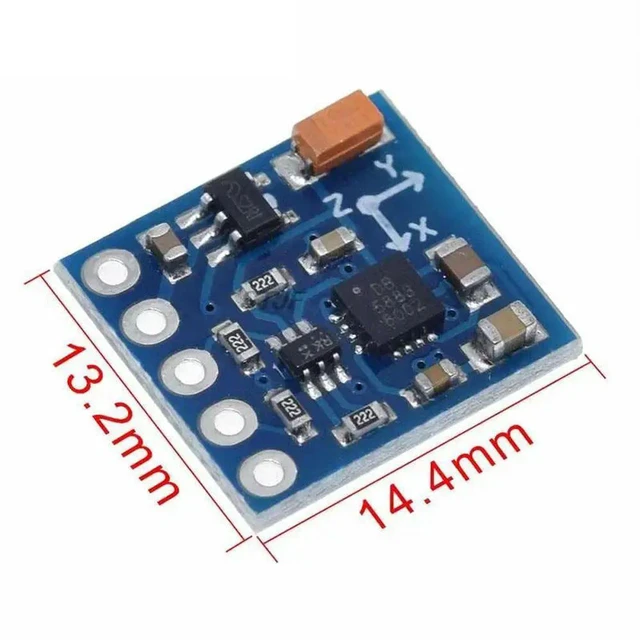

- PCB Size: 15mm ×13mm

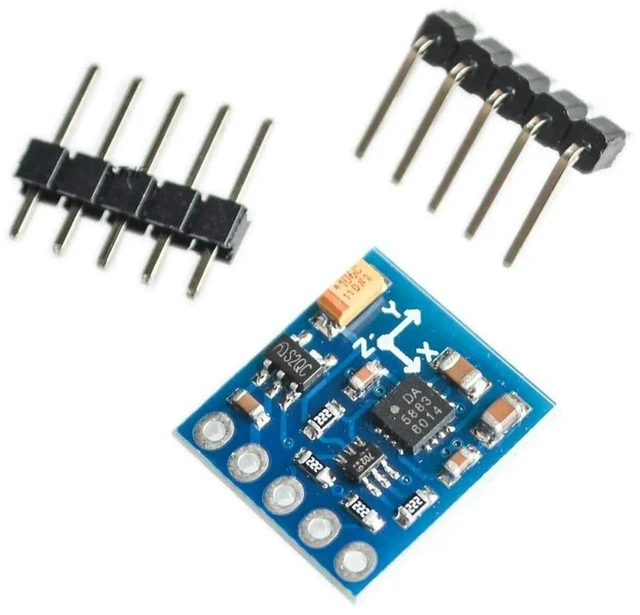

- Package Include: 1 × GY-271 QMC5883L Sensor Module
