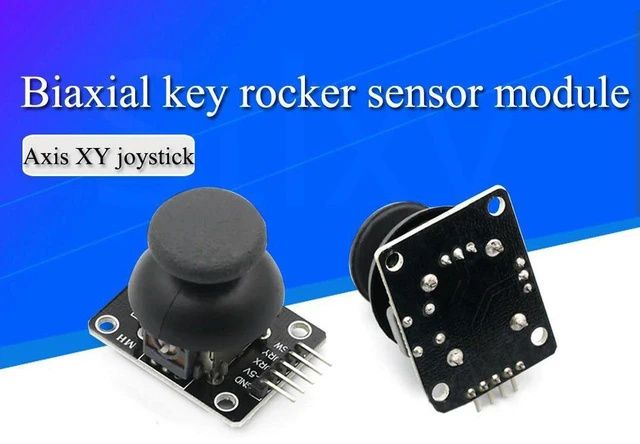

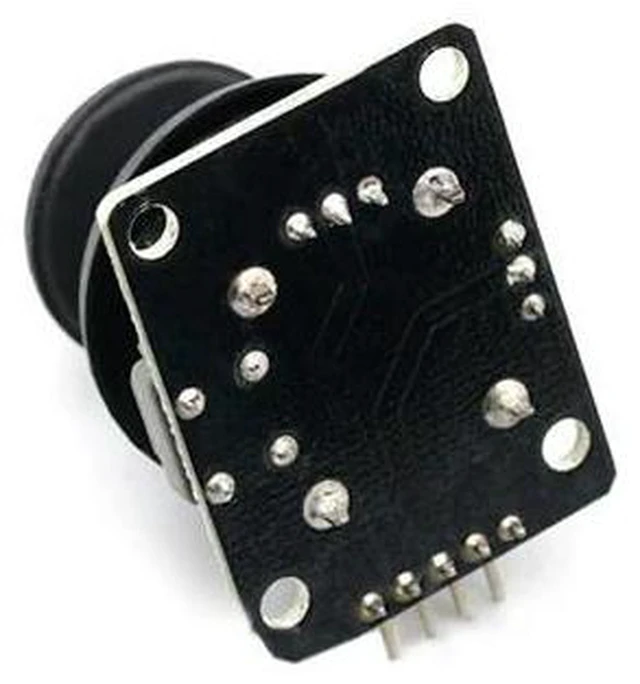

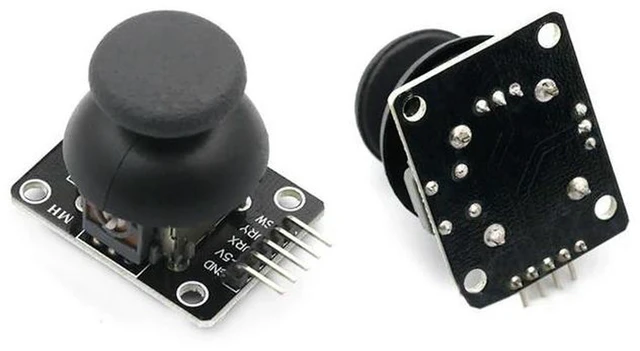

AJMRTC KY-023 Dual-axis XY Joystick Module, PS2 Analog Control Lever Sensor with Z-axis Push Button, 3.3V-5V Game Controller Joystick Breakout Board for Arduino, ESP32, Raspberry Pi, DIY Electronic
- - Dual X/Y analog axis joystick with built-in Z-axis momentary push button for multi-direction control and trigger input
- - 3.3V to 5V wide operating voltage, 2 analog signals plus 1 digital switch output for easy MCU reading
- - Standard 5-pin 2.54mm header, clearly labeled pins for fast wiring and prototyping setup
- - PS2-style joystick design with two 10K potentiometers, smooth operation and stable analog signal output
- - Compact breakout sensor board, ideal for game controller, robot movement, camera pan-tilt and maker experiments
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC KY-023 Dual-axis XY Joystick Module is a PS2-style analog joystick breakout sensor for microcontroller projects. It integrates two 10K linear potentiometers to detect X and Y axis movement and includes a Z-axis push button activated by pressing down the joystick lever. This joystick module outputs two analog signals for position detection and one digital switch signal, operating at DC 3.3V5V. With standard 2.54mm pin headers, it is fully compatible with Arduino, ESP32, Raspberry Pi and other common development boards. Perfect for building DIY game controllers, robot motion control, camera gimbal adjustment, remote control systems and electronic learning experiments. The sturdy PCB structure and reliable joystick mechanism deliver consistent performance for hobbyists, students and prototype developers.
- Brand: AJMRTC
- Model: KY-023 Dual-axis XY Joystick Module
- Operating Voltage: DC 3.3V ~ 5V
- Potentiometer Resistance: 10K per axis
- Output: 2 Analog (X/Y) + 1 Digital Push Button (Z-axis)
- Pin Pitch: 2.54mm, 5 pins (VCC, GND, VRX, VRY, SW)
- Dimension: 34 x 26 x 32 mm
- Weight: Approx 11g
- Application: Robot control, game handle, pan-tilt, electronic DIY projects
