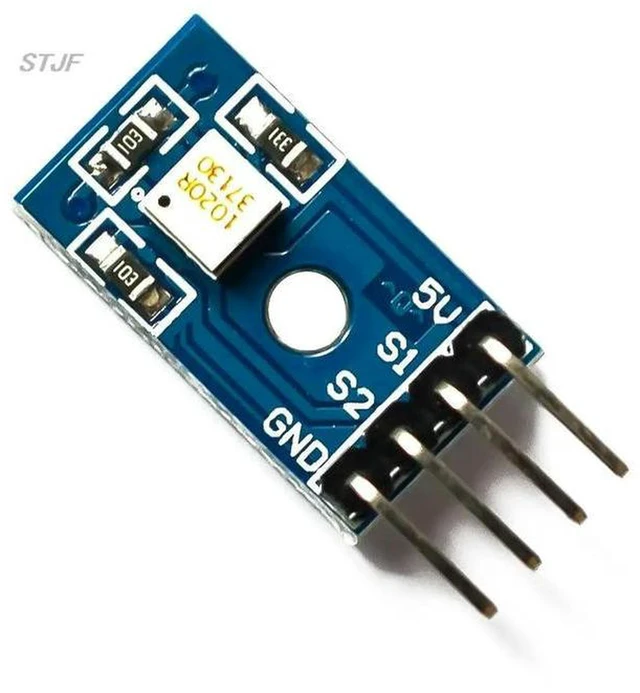

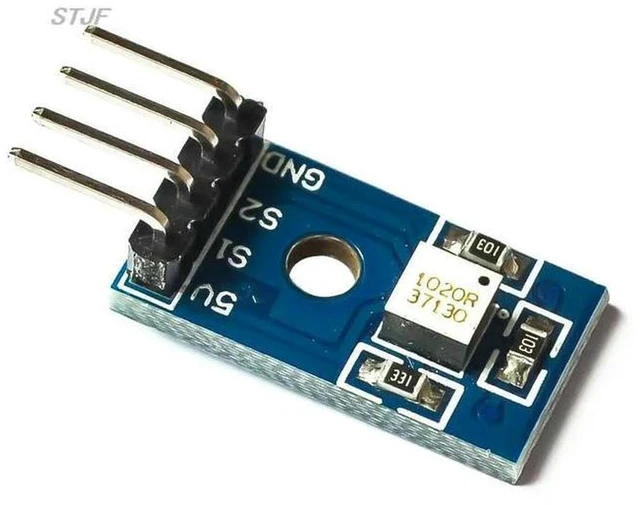

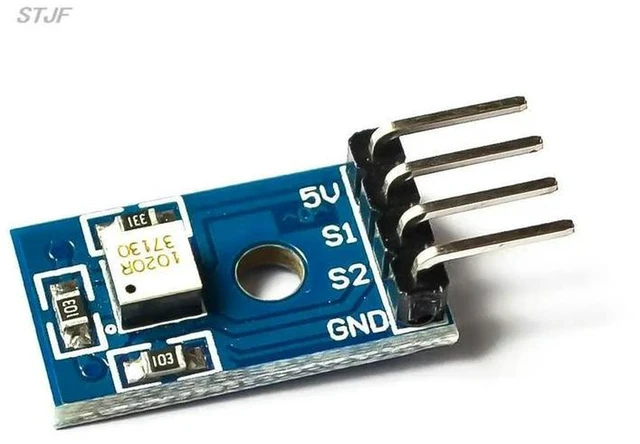

AJMRTC RPI-1031 4DOF Angle Sensor Module, 4 Direction Tilt Attitude HM Sensor Breakout Board, Digital Inclination Detection Module for Arduino Raspberry Pi DIY Robot Motion Projects
- - RPI-1031 optical tilt sensor detects four-direction tilt, outputs digital S1 & S2 signal for attitude judgment
- - Supports 3.3V / 5V wide working voltage, compatible with Arduino, Raspberry Pi and most MCU boards
- - Compact PCB breakout design with standard 2.54mm pin header for easy wiring and breadboard prototyping
- - Stable optical sensing principle, fast response for tilt trigger, anti-interference for small robot projects
- - Widely used for robot balance, orientation alarm, toy attitude control and DIY tilt detection experiments
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC RPI-1031 4DOF 4-direction attitude tilt sensor module adopts optical induction principle, built with infrared LED and dual phototransistor receivers to identify forward, backward, left and right tilt status. It outputs digital logic signals via S1 and S2 pins, helping microcontrollers judge the objects tilt direction quickly. The module works under 3.3V or 5V power supply, perfectly compatible with Arduino, Raspberry Pi and other common single-chip microcontrollers. Small size and 2.54mm standard pin header make it convenient for breadboard assembly and embedded installation. Suitable for robot balance control, tilt alarm device, intelligent toy, motion detection and various electronic DIY experimental projects. It only detects tilt direction instead of precise angle value, ideal for simple gravity orientation sensing tasks.
- Brand: AJMRTC
- Model: RPI-1031
- Sensing Type: Optical 4-direction tilt sensor
- Operating Voltage: DC 3.3V ~ 5V
- Output Signal: Digital S1, S2 logic signal
- Pin Pitch: 2.54mm standard header
- Dimension: 20 x 12 x 4mm
- Operating Temperature: -25 ~ +85
- Application: Arduino, Raspberry Pi, Robot, DIY electronic experiments
