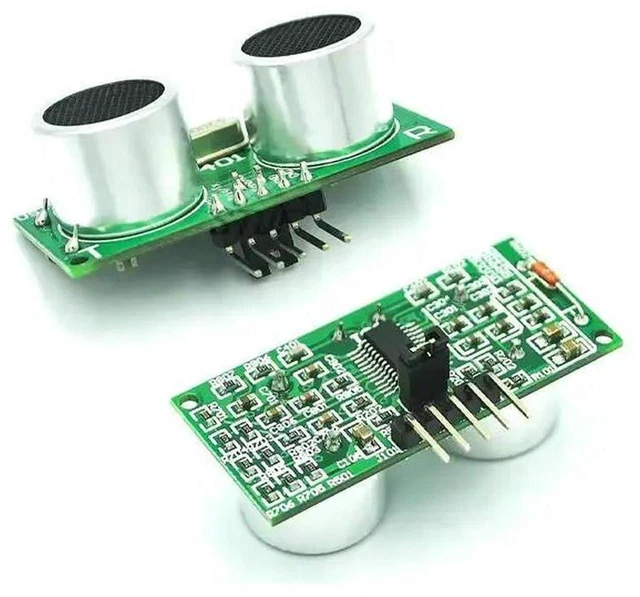

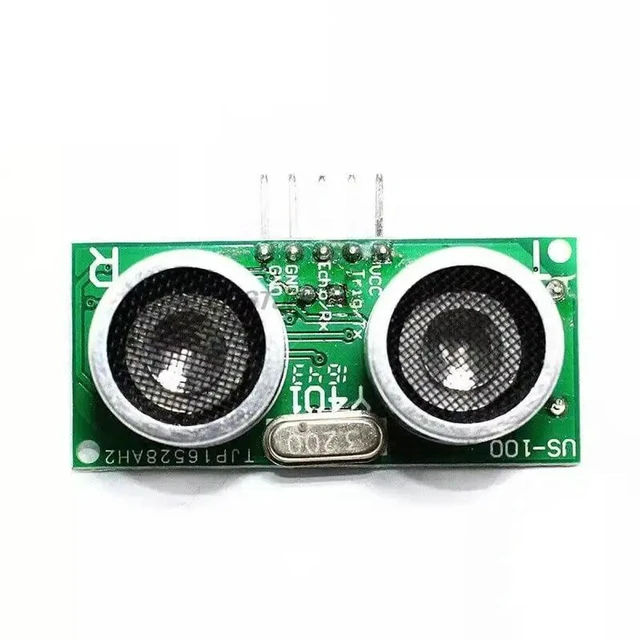

AJMRTC US-100 Ultrasonic Ranging Sensor Module, DC 2.4V~5.5V Ultrasonic Distance Detector with Temperature Compensation, 2cm~450cm Measuring Range for Arduino ESP32 STM32 DIY Projects
- - US-100 ultrasonic ranging module with built-in temperature compensation for higher measuring accuracy
- - Wide operating voltage DC 2.4V~5.5V, low power consumption for battery-powered applications
- - Supports serial and digital dual output modes to meet different MCU reading requirements
- - Non-contact distance measurement, stable performance for object detection and obstacle sensing
- - Compact module design with pin headers, easy wiring for DIY electronic and robot projects
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC US-100 ultrasonic distance sensor module adopts ultrasonic ranging technology and integrates temperature compensation function to reduce measurement error caused by ambient temperature changes. It works with DC 2.4V to 5.5V power supply and supports both serial and digital signal output. It realizes non-contact distance detection, which can detect obstacles and measure object distance reliably. Equipped with pin headers for simple wiring, it is fully compatible with Arduino, ESP32, ESP8266 and other mainstream microcontrollers. Widely used for robot obstacle avoidance, automatic induction devices, intelligent toys and various distance measurement DIY experiments.

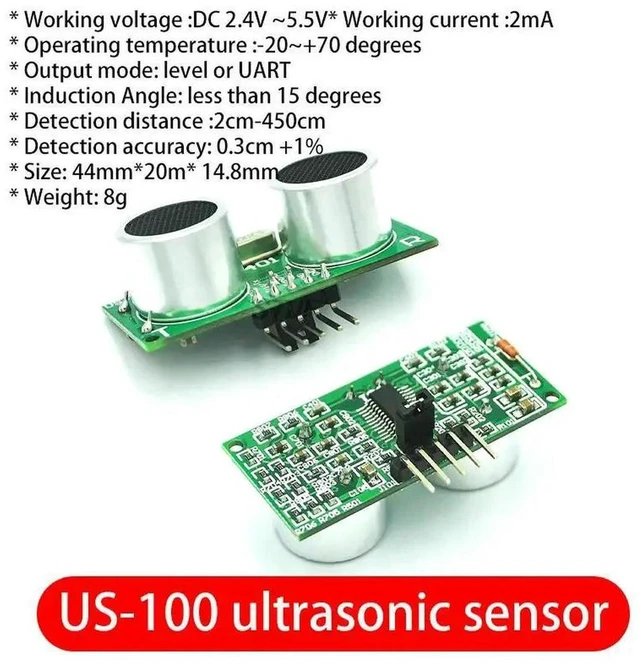

- Brand: AJMRTC
- Model: US-100
- Operating Voltage: DC 2.4V ~ 5.5V
- Function: Ultrasonic distance measurement + temperature compensation
- Output Mode: Serial / Digital dual output
- Measuring Range: 2cm ~ 450cm
- Working Current: <15mA
- Application: Distance detection, robot obstacle avoidance, object sensing
- Compatible: Arduino, ESP32, ESP8266, Raspberry Pi
