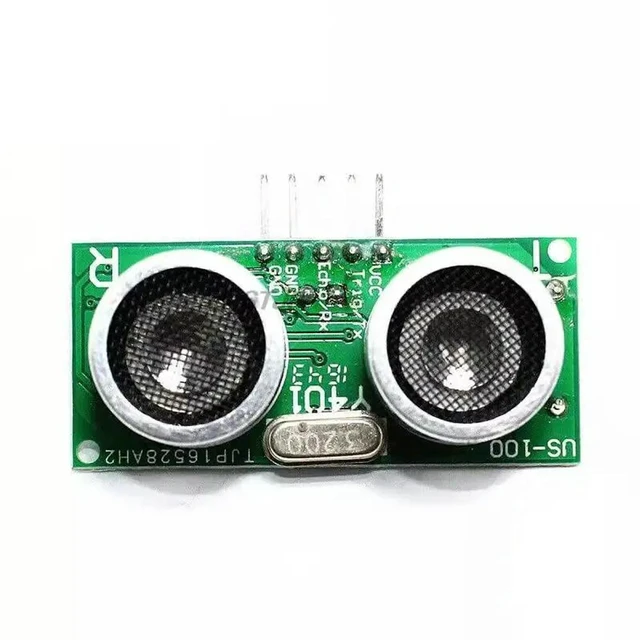

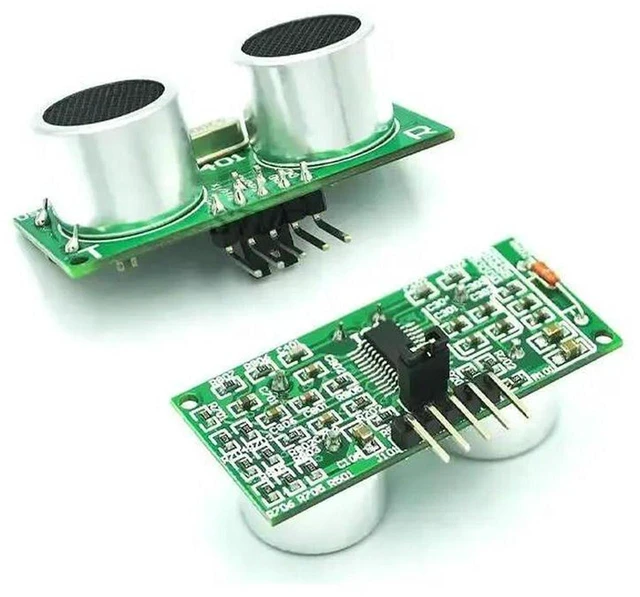

AJMRTC US-100 Ultrasonic Ranging Sensor Module with Temperature Compensation, DC 2.4V~5.5V Distance Measuring Detector, Dual Mode Serial Port & GPIO Output for Arduino Raspberry Pi DIY Projects
- - US-100 ultrasonic ranging module built-in temperature compensation function for higher measurement accuracy
- - Wide operating voltage DC 2.4V~5.5V, compatible with 3.3V and 5V main control boards directly
- - Supports dual output modes: serial port UART and GPIO trigger-echo for flexible programming selection
- - Stable detection range from 2cm to 450cm, high anti-interference ability for obstacle detection
- - Compact size, simple wiring, widely used for robot obstacle avoidance, liquid level and distance measurement
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC US-100 ultrasonic ranging sensor module is a non-contact distance measurement device with built-in temperature compensation chip, which can automatically correct the measurement error caused by ambient temperature change to obtain more reliable data. It supports DC 2.4V~5.5V wide voltage input, can work with 3.3V and 5V microcontrollers without level conversion. Two communication modes are available: UART serial port mode and GPIO trigger echo mode to meet different development needs. The effective measuring range is 2cm to 450cm. This module is suitable for robot obstacle avoidance, smart car, liquid level detection, parking sensor and other DIY electronic projects. It is easy to install and connect, no complex calibration required.

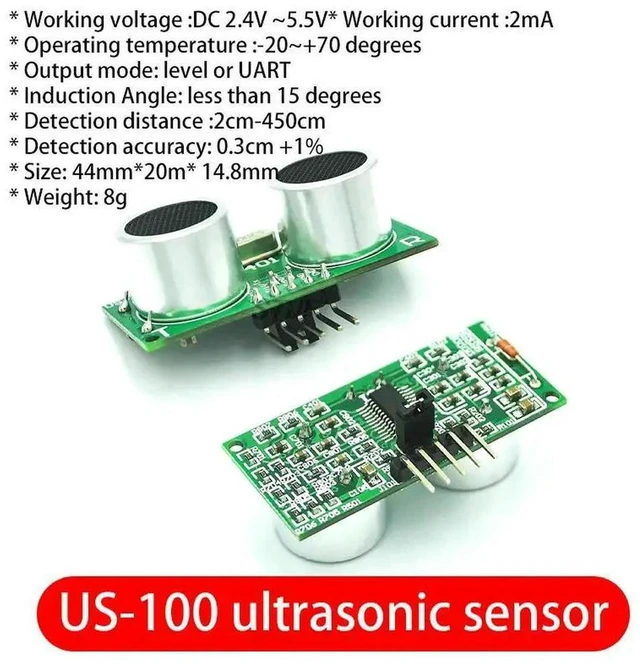

- Brand: AJMRTC
- Model: US-100
- Working Voltage: DC 2.4V ~ 5.5V
- Measuring Range: 2cm ~ 450cm
- Output Mode: UART Serial Port / GPIO Trigger-Echo
- Built-in Function: Temperature Compensation
- Ultrasonic Frequency: 40KHz
- Working Current: <15mA
- Operating Temperature: -20 ~ +70
- Size: 45mm × 20mm × 12mm
- Application: Robot Obstacle Avoidance, Distance Measurement, Smart Car
- Package Contents: 1 × US-100 Ultrasonic Sensor Module
