AJMRTC MT6826S High Precision Magnetic Encoder Module 1024 PPR ABZ UVW SPI PWM Output Rotary Angle Position Sensor for BLDC Servo Closed-Loop Motor, Robotics, CNC, Motion Control Projects

AJMRTC MT6826S magnetic encoder module adopts advanced AMR anisotropic magnetoresistive technology to achieve high-precision 0°-360° absolute angle acquisition. It is equipped with 15-bit core resolution and programmable ABZ incremental output, preset to 1024 PPR. This magnetic encoder supports ultra-high rotation speed up to 120000 RPM with low signal delay. Unlike optical encoders, magnetic sensing resists vibration and dust interference for stable operation in complex environments. It provides ABZ, SPI and PWM multi-type signal interfaces, compatible with most closed-loop stepper, servo motor control systems. Suitable for robot joint, CNC equipment, industrial motion control, DIY motor feedback and FTC technology challenge projects. The compact PCB module requires simple assembly with matched magnet, convenient for embedded development and engineering prototype testing.

1. Brand: AJMRTC
2. Model: MT6826S
3. Sensing Technology: AMR Anisotropic Magnetoresistive
4. Core Resolution: 15-bit
5. ABZ Resolution: 1024 PPR (programmable 1~4096 PPR)
6. Max Rotation Speed: 120000 RPM
7. Supply Voltage: 3V ~ 5.5V DC
8. Output Interface: ABZ, SPI, PWM
9. Measuring Range: 0° ~ 360°
10. Application: Closed-loop stepper motor, Servo, Robot, CNC, Motion Control, FTC Challenge
11. Working Temperature: -40 ~ +85

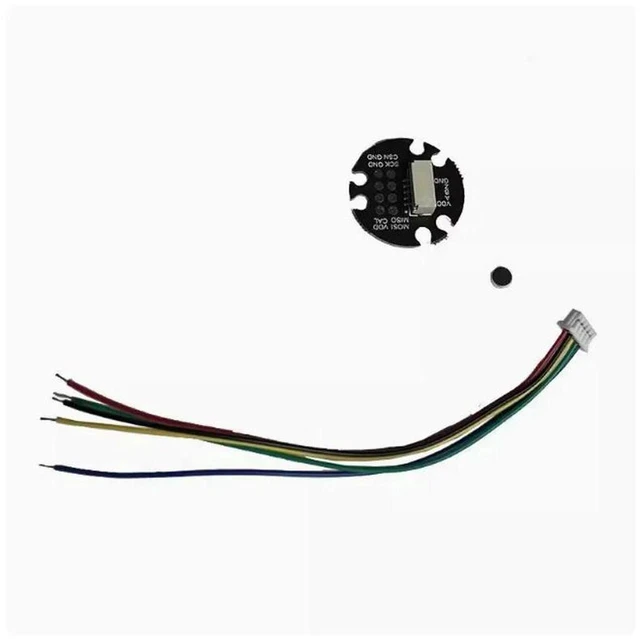

12. Includes: MT6826S module, matching magnet, pin headers
