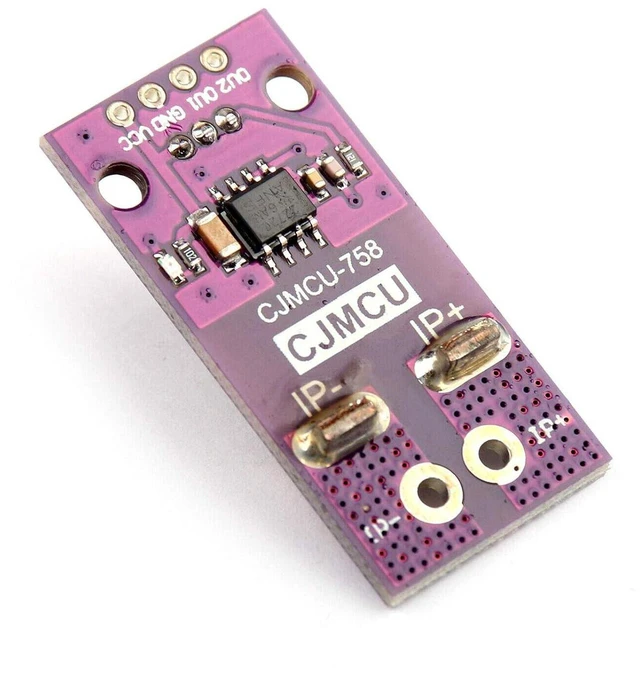

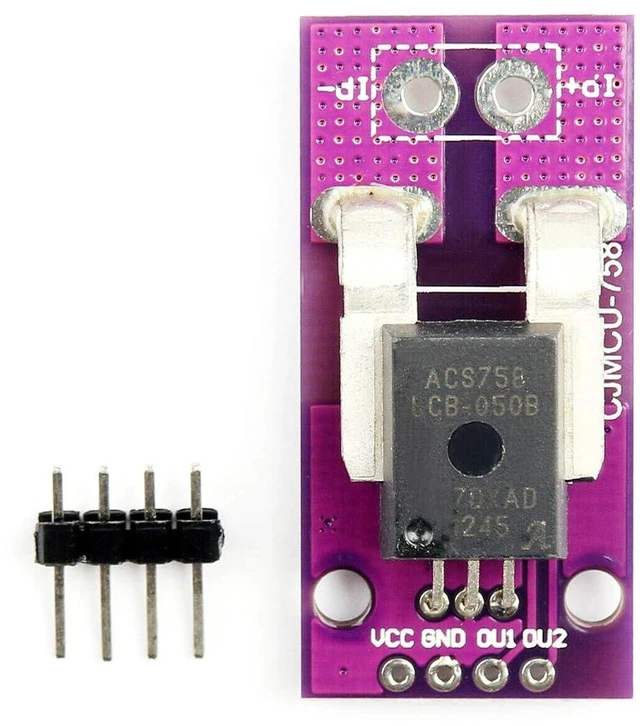

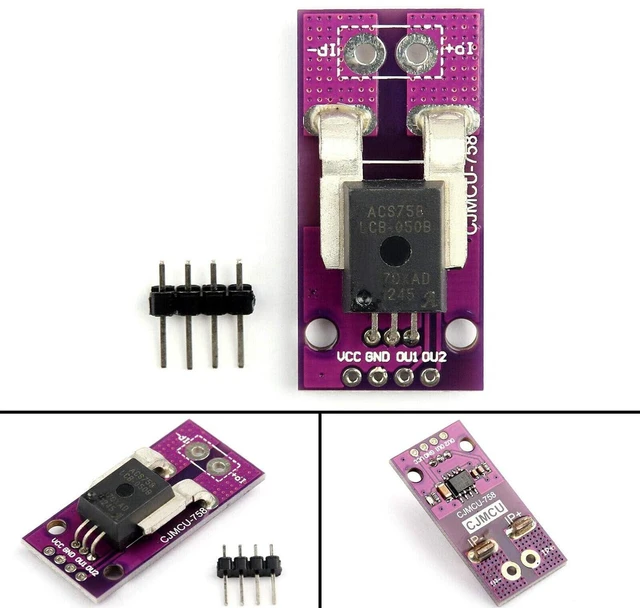

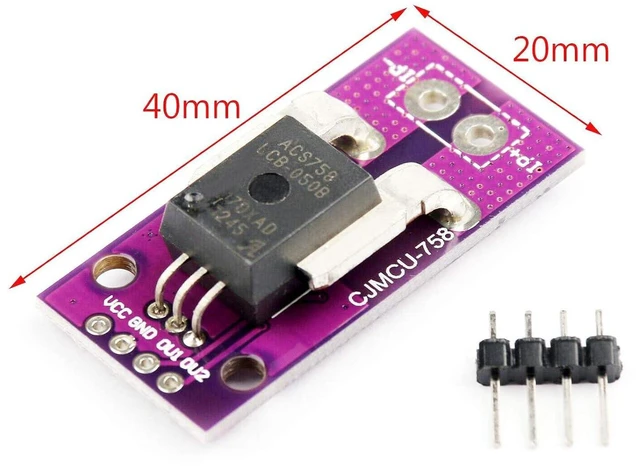

AJMRTC ACS758LCB-050B-PFF-T 50A Hall Effect Linear Current Sensor Module, Bidirectional AC DC Current Detection Analog Output for Arduino Power Monitoring
- - Bidirectional sensing supports both AC and DC current up to 50A
- - Hall open-loop design with galvanic isolation for high safety
- - Ultra-low internal resistance 100, low power consumption and less heat
- - 120kHz bandwidth and fast 4s response time for real-time monitoring
- - Analog ratiometric output, easy to connect with MCU, STM32 and Arduino
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
ACS758LCB-050B-PFF-T current sensor module adopts Hall effect open-loop principle. It can measure bidirectional AC and DC current within ±50A, outputs linear analog voltage signal proportional to current value. It features galvanic isolation between high current path and signal side, effectively protecting control circuits. With tiny conduction resistance, it brings minimal power loss. Widely used for battery management, inverter, motor drive, overcurrent protection and power supply current detection projects.
Specifications
- Brand: AJMRTC
- Model: ACS758LCB-050B-PFF-T
- Detection Range: ±50A
- Sensor Type: Hall Effect Open Loop
- Measurable Current: AC / DC Bidirectional
- Sensitivity: 40mV/A
- Bandwidth: 120kHz
- Response Time: 4s
- Supply Voltage: 3.0V - 5.5V
- Internal Conductor Resistance: 100
- Output: Analog Ratiometric Voltage
- Operating Temperature: -40 ~ +150
- Application: Current Monitoring, Overcurrent Protection, Motor Control, BMS
