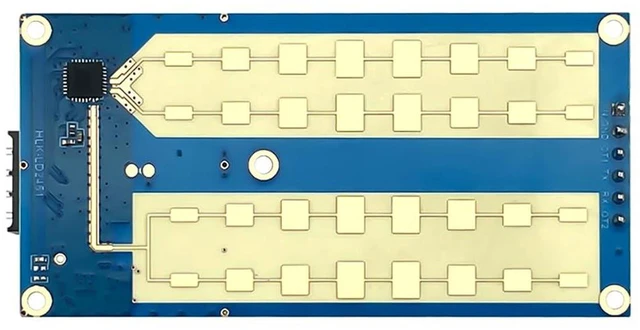

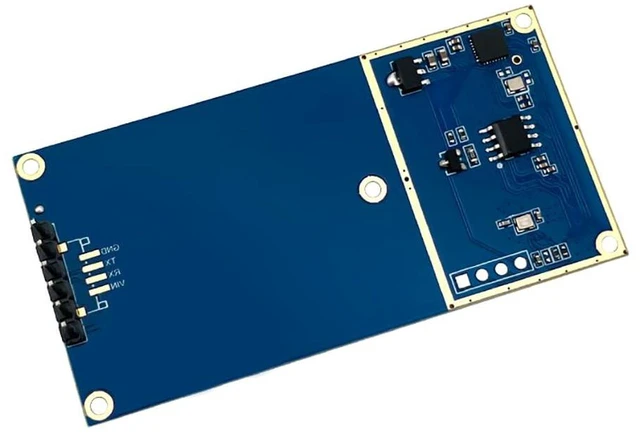

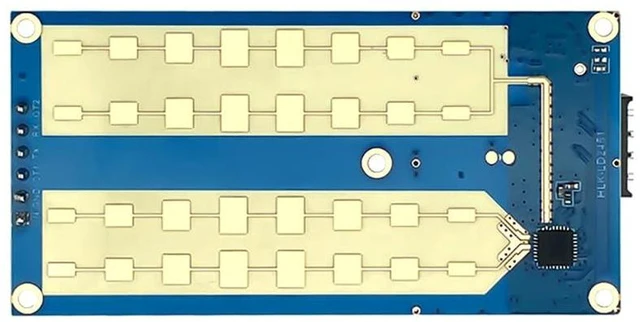

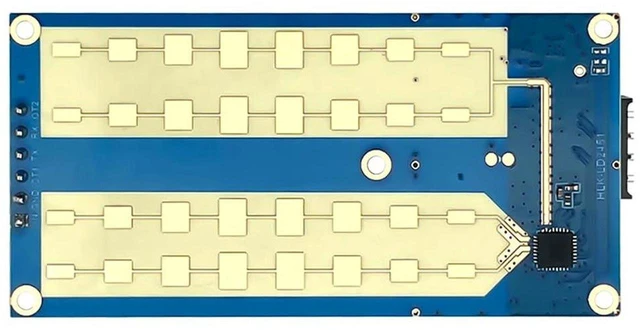

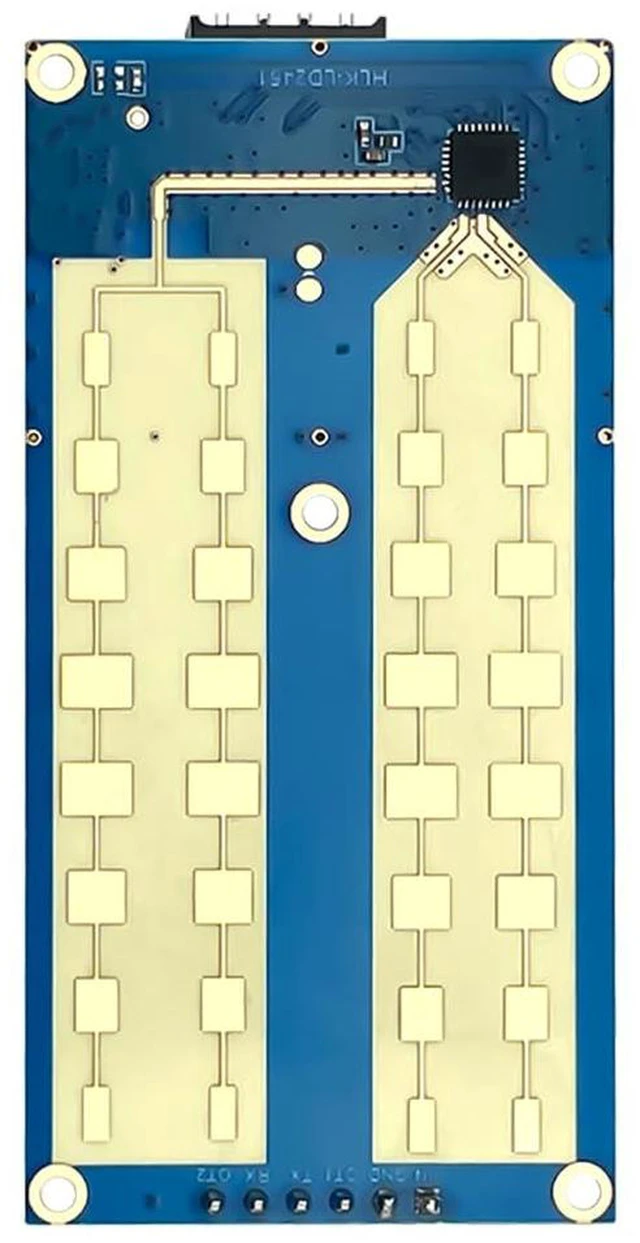

AJMRTC LD2451 24GHz Millimeter Wave Radar Sensor Module, Vehicle Status Monitoring, Ranging & Speed Measurement FMCW Radar Adapter for Blind Spot Detection Traffic Project, Module Only
- 1. 24GHz FMCW millimeter wave radar, supports vehicle ranging, speed and azimuth detection up to 100m
- 2. 1T2R radar architecture, adjustable ±15° sensing angle, detects moving vehicles 0120km/h
- 3. Dual output options: UART serial port + 3.3V GPIO for easy MCU and embedded system integration
- 4. Wide working temperature -40 ~ +85, stable performance for outdoor roadside and automotive projects
- 5. Bare sensor module only, ideal for blind spot alert, traffic monitoring, smart road DIY development
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
AJMRTC LD2451 24G millimeter wave radar module adopts FMCW technology to capture vehicle distance, speed and direction data. It works reliably under rain, fog and poor light conditions unlike optical cameras. You can tune sensitivity, speed threshold and delay via supporting radar software. Perfect for vehicle blind spot warning, traffic flow statistics and intelligent transportation IoT projects. No housing or accessory included.
Specifications
- Brand: AJMRTC
- Model: LD2451
- Radar Frequency: 24GHz ~ 24.25GHz
- Radar Type: FMCW, 1T2R
- Max Detection Distance: 100m
- Detectable Speed Range: 0 ~ 120 km/h
- Detection Angle: ±15° adjustable
- Interface: UART + 2-channel GPIO (3.3V level)
- Supply Voltage: DC 5V
- Working Current: >200mA
- Operating Temp: -40 ~ +85
- Package Content: Radar module only
- Application: Vehicle blind spot monitoring, traffic speed detection, smart roadside sensing, IoT project
