AJMRTC MAX17043 LiPo Fuel Gauge Module, 1S Lithium Battery SOC Voltage Detector Sensor, I2C A/D Converter with Programmable Low Power Alarm for Arduino ESP32 DIY Project
- 1. Adopts MAX17043 chip with ModelGauge algorithm to calculate accurate battery remaining capacity (SOC)
- 2. I2C 2-wire communication interface, easy to connect with MCU like ESP32, Arduino, Raspberry Pi
- 3. Built-in A/D converter for precise voltage sampling, ±12.5mV measurement accuracy
- 4. Configurable low-battery alarm interrupt pin for power shortage warning trigger
- 5. No sense resistor required, compact breakout for single-cell 3.7V Li-ion / LiPo monitoring
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

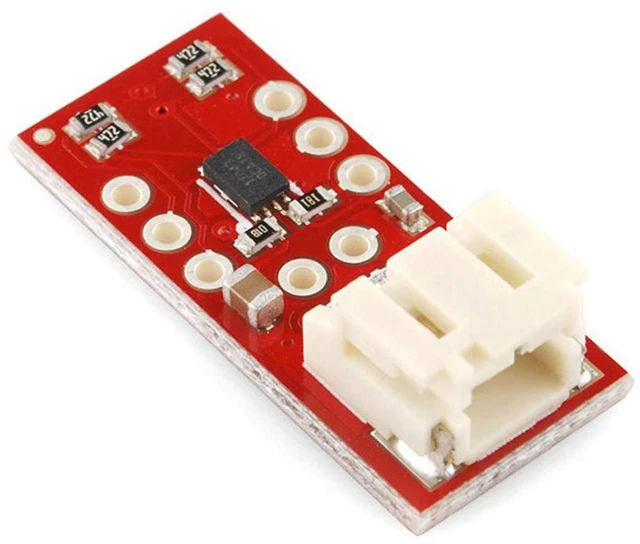

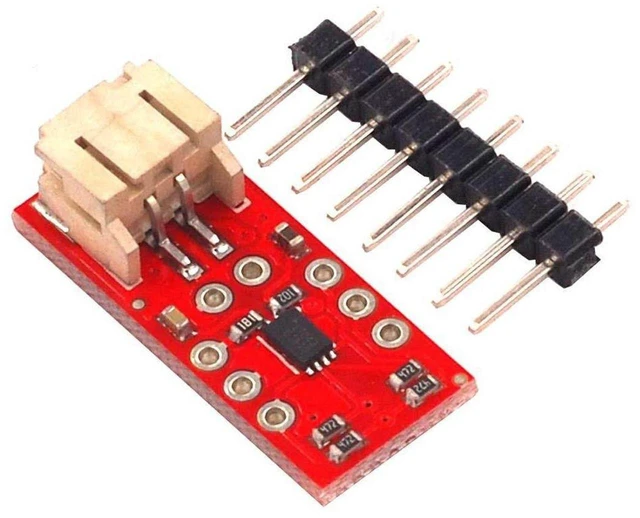

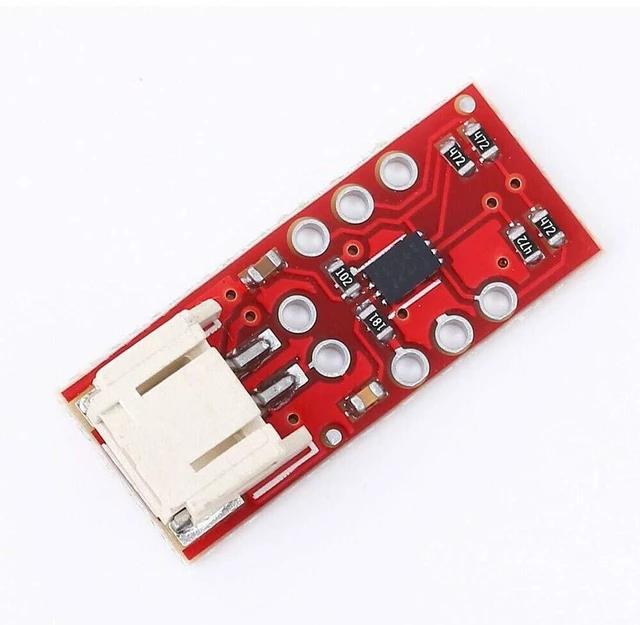

MAX17043 fuel gauge breakout module monitors 1-cell lithium polymer and lithium-ion batteries. It reports real-time battery voltage and state of charge without mandatory full-charge to empty discharge relearning. It supports programmable low-power alert threshold, and outputs interrupt signal through ALRT pin when battery capacity drops below setting value. Low quiescent current design avoids extra battery drain. It is widely used for portable devices, battery-powered IoT sensors, wearable electronics and DIY power monitoring projects.
Specifications
- Brand: AJMRTC
- Chip: MAX17043 Single-Cell Fuel Gauge
- Interface: I2C (2-Wire)
- Supported Battery: 1S 3.7V LiPo / Li-ion (2.5V ~ 4.2V)
- Measurement: Battery Voltage + SOC Remaining Capacity
- Accuracy: ±12.5mV voltage precision
- Alarm: Programmable low SOC interrupt alert
- Working Voltage: 3.3V
- No Shunt Resistor Needed
- Compatible MCU: Arduino, ESP32, STM32, Raspberry Pi
- Application: IoT sensor, portable device, battery power detection
- Note: Only for 1S lithium battery, not for 2S or higher series battery packs
