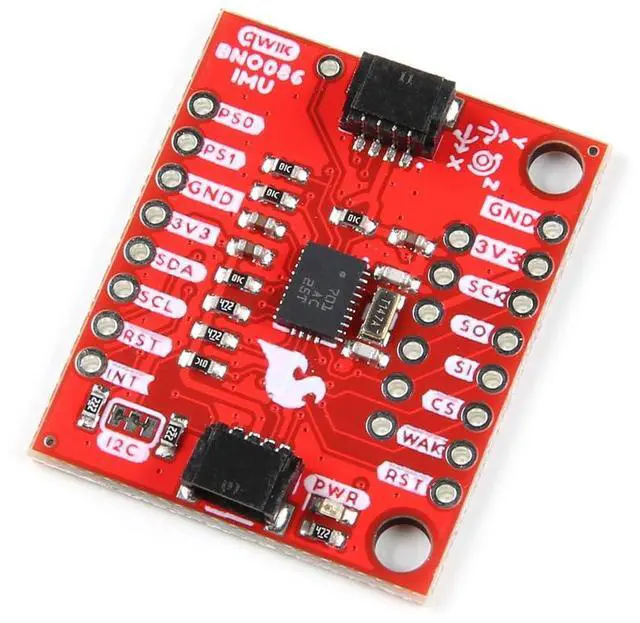

VR IMU Breakout - BNO086 (Qwiic) Combination Triple-axis Accelerometer/gyro/Magnetometer, 32-bit M0+, Board Dimensions: 1.0in. x 1.2in. (25.4mm x 30.48mm)

Virtual reality is in, but you shouldn't have to drop hundreds of dollars to gain access to the technology behind it. Luckily, that's where the SparkFun VR IMU Breakout comes in. At its heart is CEVAs BNO086, a combination triple-axis accelerometer/gyro/magnetometer System in Package (SiP) with a 32-bit ARM Cortex M0+. The BNO086 Inertial Measurement Unit (IMU) produces accurate rotation vector headings, excellently suited for VR and other heading applications, with a two-degree or less static rotation error. The VR IMU is exactly what weve been waiting for; all the sensor data is combined and drift-corrected into meaningful, accurate IMU information.

Its perfect for any project that needs to sense orientation or motion. This IMU breakout board has also been equipped with two I2C Qwiic connectors to make interfacing with the tiny QFN package a bit easier. Its part of SparkFuns Qwiic connect system, so you wont have to do any soldering to figure out how things are oriented. However, we still have broken out 0.1" -spaced pins if you prefer to use a breadboard. The BNO080 was designed to be implemented in Android-based cellular phones to handle all the computations necessary for virtual reality goggles using only your phone.

With the BNO080 EOL, CEVA offers the drop-in replacement BNO086 with enhanced features (14-bit accelerometer fusion, reduced idle state power, and Interactive Calibration). The sensor is quite powerful, and with power comes a complex interface. Thanks
