Micro Temperature Sensor - STTS22H (Qwiic) Configurable Peripheral addresses, NIST traceability, Qwiic Micro Form Factor, Operating Voltage: 1.5V to 3.6V
- Thanks to its factory calibration the STTS22H offers high-end accuracy performance over the entire operating temperature range, reaching as low as ±0.5°C.; The Micro STTS22H features: Ultralow current: 1.75 µA in one-shot mode, Programmable thresholds with interrupt pin, Programmable operating modes, Freerun, one-shot, and Low-ODR, NIST traceability, Qwiic Micro Form Factor.; Thanks to its factory calibration the STTS22H offers high-end accuracy performance over the entire operating temperature range, reaching as low as ±0.5°C without requiring any further calibration at the application level.; The sensor operating mode is user-configurable and allows selecting between different ODRs (down to 1Hz) or the one-shot mode for battery saving. In one-shot mode, the sensor current consumption falls to 1.75µA.; Peripheral addresses are also user-configurable and allow two different addresses to be specified by manipulating the jumper on the back of the breakout. In addition, an interrupt pin is available to signal the application whenever the user-selectable high or low threshold has been exceeded.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

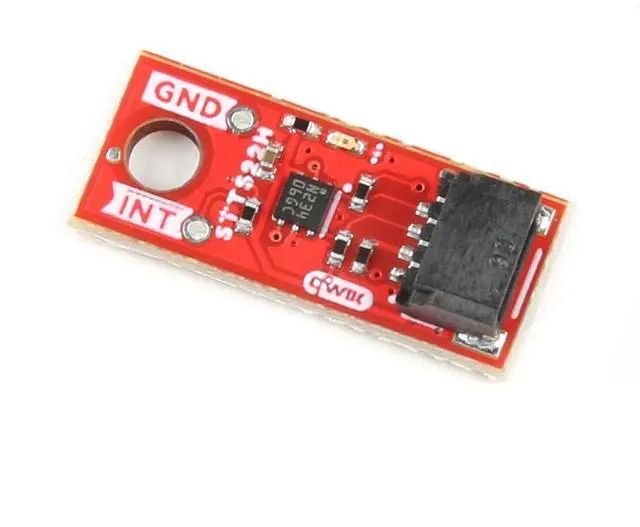

The SparkFun STTS22H Micro Temperature Sensor is a Qwiic-enabled breakout board based on the ultralow-power, high-accuracy, digital temperature sensor STTS22H from ST Microelectronics and housed in our Qwiic Micro form factor. Thanks to its factory calibration the STTS22H offers high-end accuracy performance over the entire operating temperature range, reaching as low as ± 0.5 °C without requiring any further calibration at the application level. The sensor operating mode is user-configurable and allows selecting between different ODRs (down to 1Hz) or the one-shot mode for battery saving. In one-shot mode, the sensor current consumption falls to 1.75 µA.
Peripheral addresses are also user-configurable and allow two different addresses to be specified by manipulating the jumper on the back of the breakout. In addition, an interrupt pin is available to signal the application whenever the user-selectable high or low threshold has been exceeded. Hook-up is a breeze as the breakout board uses the Qwiic Connect System. The breakout board has built-in 2.2 k pullup resistors for I2C communications. If youre hooking up multiple I2C devices on the same bus, you may want to disable these resistors.
Peripheral addresses are also user-configurable and allow two different addresses to be specified by manipulating the jumper on the back of the breakout. In addition, an interrupt pin is available to signal the application whenever the user-selectable high or low threshold has been exceeded. Hook-up is a breeze as the breakout board uses the Qwiic Connect System. The breakout board has built-in 2.2 k pullup resistors for I2C communications. If youre hooking up multiple I2C devices on the same bus, you may want to disable these resistors.
