NGW-1pc Grove-Wio-E5 Wireless Module - STM32WLE5JC, ARM Cortex-M4 and SX126x embedded, supports LoRaWAN on EU868 & US915
Limited time offer, ends 07/18 By TERRA HAVEN
- Excellent performance: With the support of STM32WLE5JC. It has an adaptive real-time accelerator and allows 0-wait-state execution from Flash memory, frequency of up to 48 MHz.; Plug and Play: With the Grove Unified Socket, it can easily be utilized in a variety of applications.; Wireless Connectivity: Embedded Long Range protocol, AT command, support global Long Range frequency plan.; Great Flexibility: For users who want to develop software on the MCU of the module, other GPIOs of the MCU can be easily manipulated, including UART, I2C, ADC, etc. These rich GPIO interfaces are useful for users who need to expand peripherals.; FCC, CE, Telec Certified
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

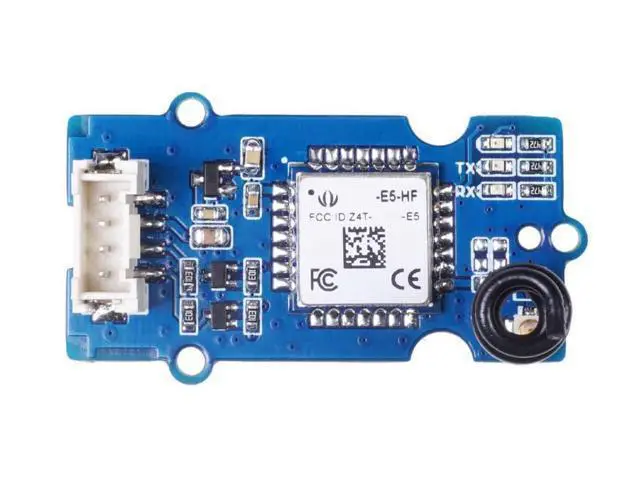

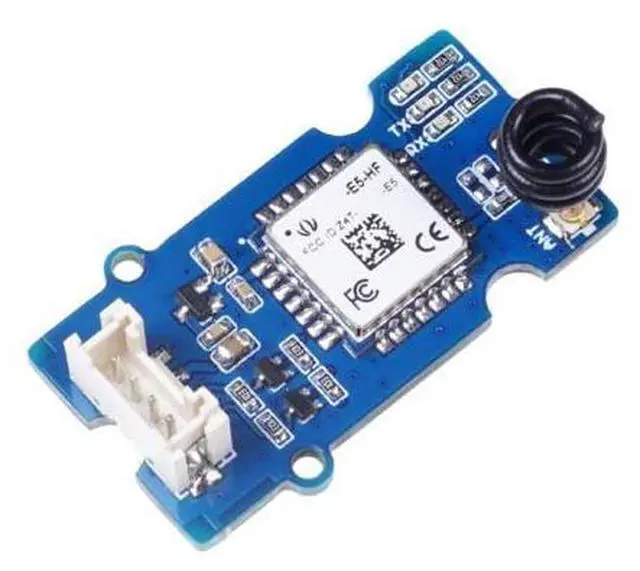

Description The Grove - Wio-E5 is a high-performance wireless radio module that supports LoRaWAN protocol and is incredibly easy to use. At its core is the Wio-E5 LoRaWAN STM32WLE5JC module, which integrates the ARM Cortex M4 ultra-low-power MCU core and Wio SX126x. This world-first combo of LoRa® RF and MCU chip into one single tiny module supports various modulations, including (G) FSK, BPSK, (G) MSK, and LoRa® modulations. The Wio-E5 series is a powerful Long Range module that features built-in AT command firmware, making it ideal for developers looking to build their prototypes or applications.
The module supports LoRaWAN® Class A/B/C protocol and a wide frequency plan, including EU868/US915/AU915/AS923/KR920/IN865, making it highly versatile and adaptable to various low-power wide-area IoT scenarios like smart agriculture, wireless meter reading, and smart city applications. Additionally, the module is certified, so the devices integrated with this module can be certified and approved by any agency cheaply and rapidly.

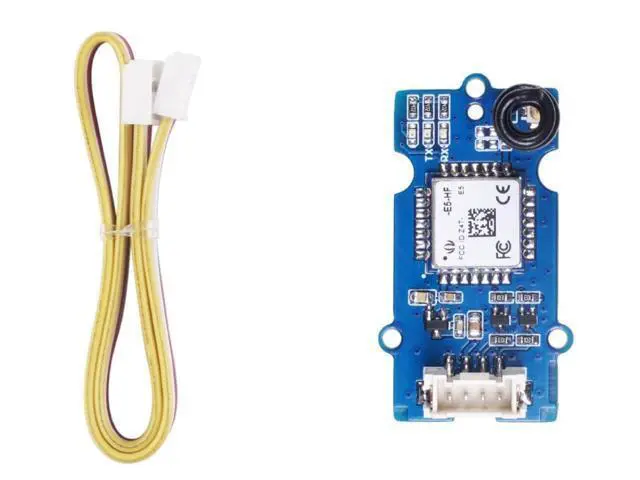

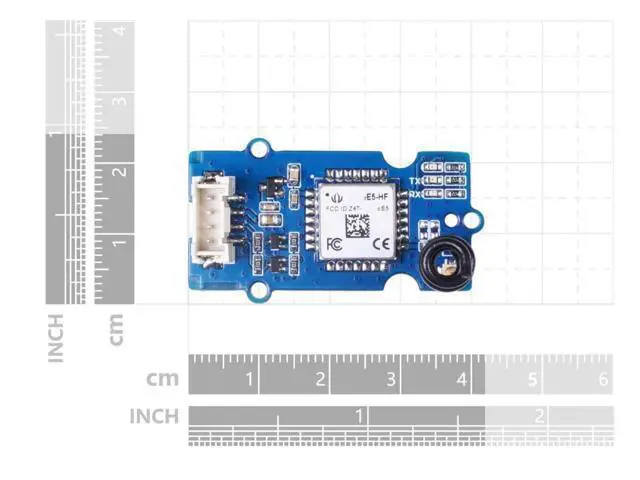

Power Output: Up to +20 dBm at 3.3V Working Frequency 868MHz / 915MHz Protocol LoRaWAN Sensitivity - 116.5 dBm ~ -136dBm Modulation LoRa®, (G) FSK, (G) MSK and BPSK Current Only 60uA in sleep mode Size 20*40mm Working Temperature -40 ~ 85 Part List Grove - Wio-E5 PCBA *1 Grove Universal Cable *1
The module supports LoRaWAN® Class A/B/C protocol and a wide frequency plan, including EU868/US915/AU915/AS923/KR920/IN865, making it highly versatile and adaptable to various low-power wide-area IoT scenarios like smart agriculture, wireless meter reading, and smart city applications. Additionally, the module is certified, so the devices integrated with this module can be certified and approved by any agency cheaply and rapidly.
Specifications
Voltage Supply: 3.3V / 5VPower Output: Up to +20 dBm at 3.3V Working Frequency 868MHz / 915MHz Protocol LoRaWAN Sensitivity - 116.5 dBm ~ -136dBm Modulation LoRa®, (G) FSK, (G) MSK and BPSK Current Only 60uA in sleep mode Size 20*40mm Working Temperature -40 ~ 85 Part List Grove - Wio-E5 PCBA *1 Grove Universal Cable *1
