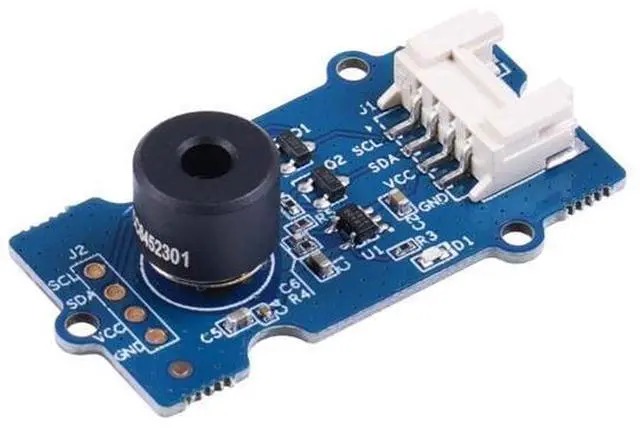

NGW-1pc Grove - Single-Point Infrared Thermometer - MLX90614 DCC with 35° FOV

Description This infrared thermometer module has a single-point medical-grade infrared temperature sensor (MLX90641), which can detect the temperature of objects with an accuracy of ± 0.2 °C in the body temperature range. At room temperature, the surface temperature of the measured object can reach an accuracy of ± 0.5 °C in a wide range. The module can use the I2C protocol to obtain data from the camera. The field of view (FOV) of this sensor is 35°, the temperature measurement range is -70°C~380°C, and the working temperature is that the sensor's Ta value is between -40°~85°.

Specifications

Specification

Details

FOV 35° Measurement accuracy ± 0.2 °C (body temperature range) / ± 0.5 °C Measuring range -70°C~380°C (object temperature) Senser operating temperature Ta is between -40°~85° Refresh Rate 0.5H z ~ 64Hz Interface I2C Voltage 3.3V -5V Current ~18mA Part List 1 x Grove - Single-Point Infrared Thermometer - MLX90614 DCC with 35° FOV
