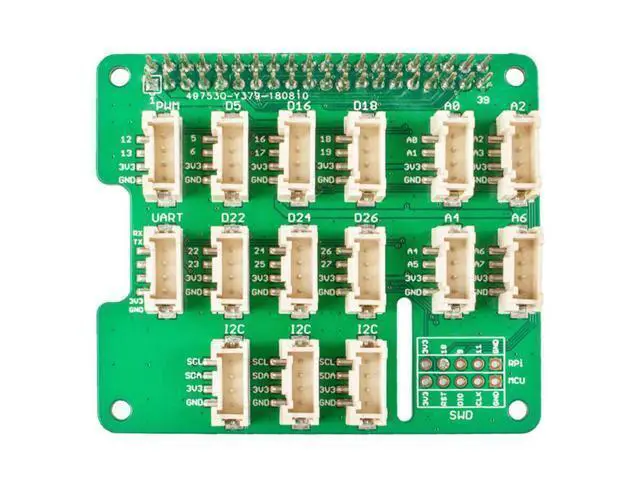

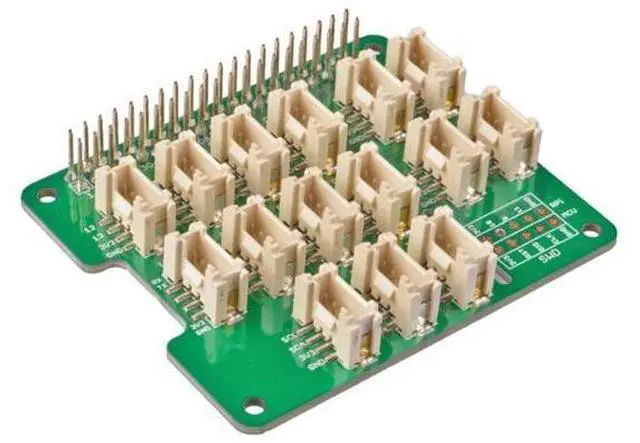

NGW-1pc Grove Base Hat for Raspberry Pi - 24-Pin GPIO maintain, Grove interface for 3× I2C, 1× UART, 6× Digital, 4× Analog, SWD Debug interface, 1x PWM Port

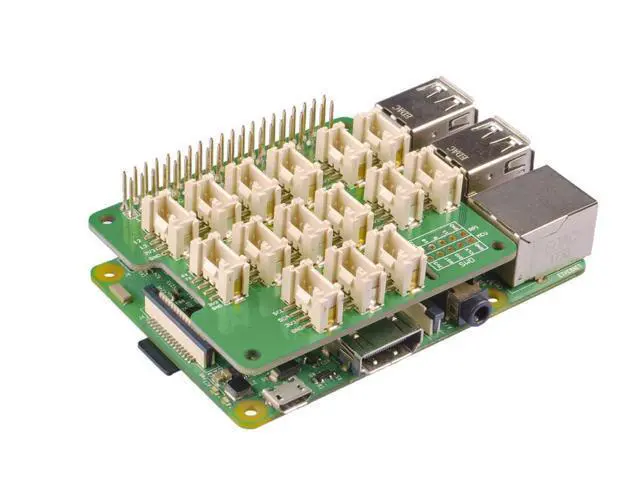

Grove Shield for Raspberry Pi is an expansion board for Raspberry Pi, designed by Seeed Studio, for the orderliness of your connected sensors when you develop projects with Pi. It maintains 24-Pin GPIO and provides 15 additional Grove ports based on the MM32 chip, along with other interfaces, giving you a great and quick development experience. This is the enhanced Grove Pi Hat for Raspberry Pi 2 / 3B / 3B+ / 4 / Zero, represented by Seeed Studio, where it breaks out all the pins and power of the board to produce 15 multi-function Grove ports and led out the compatible Pi 24-Pin GPIO, SWD debug interface.

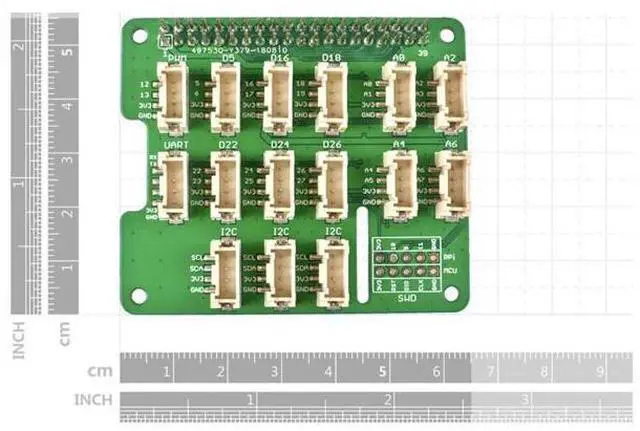

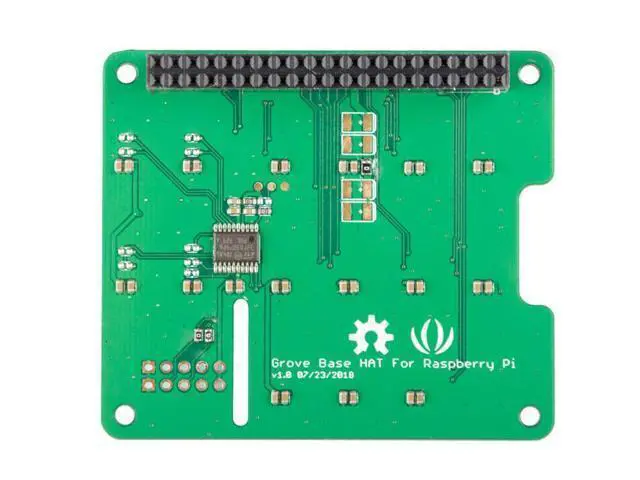

With its convenient feature and the entire Grove system supported, it will be your good assistant when you try to start your projects with Raspberry Pi. Powered by the MM32F031F6P6 chip, the 15 onboard Grove connectors are designed as 3*I2C, 1*UART communication ports, 1* PWM port, and 4*Analog with 6*Digital transmitted ports, where it supports more than 60 related Grove modules. This Pi Hat also comes up with the Raspberry Pi compatible 24-Pin GPIO and the SWD debug interface for further usage at the same time without pulling out. Application Projects with Grove sensors Electronics beginning SWD debug Rapid prototyping Intelligent control Specification Parameter Description MCU MM32F031F6P6 Operating Voltage 3.3V Dimensions 55mm x65mm x20mm Weight G.

W 24.5 g Battery Exclude Note Please note that we have changed the chip from the original one STM32 to the new one MM32, wh
