NGW-1pc Grove - Tilt Switch

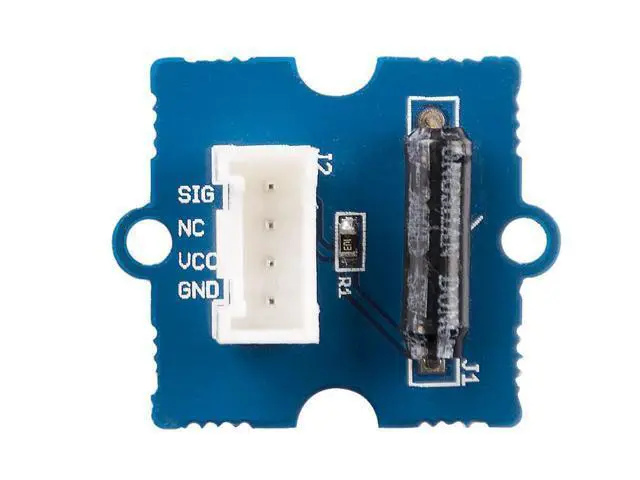

Description The Grove-Tilt Switch is the equivalent of a button, base on SW-200D, which is a two balls type single direction tilt sensitive trigger switch. It is used as a digital input. Inside the tilt switch is a pair of balls that make contact with the pins when the case is upright. Tilt the case over and the balls don't touch, thus not making a connection. It is wired to the SIG line, NC is not used on this Grove. How does the SW-200D work? When the products tilt to the conductive terminal (silver-feet pin end A) and the tilt angle more than 10degree, it will be a opened circuit OFF-stated.

When the products of horizontal placed tilt change, the trigger terminal (gold-feet pin end C) is below the horizontal tilt angle and more than 10degree, It will be a closed circuit ON-stated. Application Automotive devices Home electrical devices automatic power-off function for household appliances Air warm blower fall prevention protect switches Communication devices Toys

Specifications

Dimensions 130mm x90mm x10mm Weight G. W 9g Battery Exclude Input Voltage 3V to 5.25V Connecting Angle 10° ~170° Disconnect angle 190° ~350° Electrical Life 100, 000 Cycle Part List Grove - Tilt Switch *1
