NGW-1pc MR60FDA1 60GHz mmWave Sensor - Fall Detection Pro Module | FMCW, Sync Sense, Privacy Protect, high stability, support secondary development
Limited time offer, ends 07/18 By TERRA HAVEN
- Enhanced detecting algorithm: Output simultaneously human activities including moving, falling, and stationary in the self-adaption environment; High measured accuracy: Achieve fall detection accuracy 90% and achieve presence awareness function accuracy 90 %; Privacy Protection: More secure identification than the vision-based devices, with no concern about privacy leakage; High Immunity against Interferences: Independ on temperature, humidity, noise, airflow, dust, light, and other environmental influences; Support Secondary Development: Adapt to various scenarios and applications
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

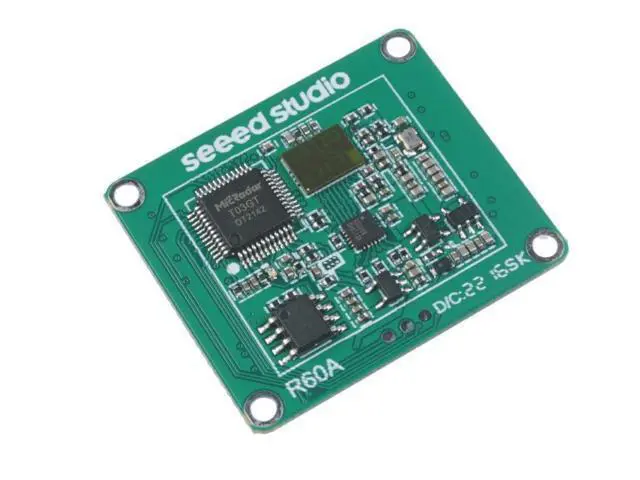

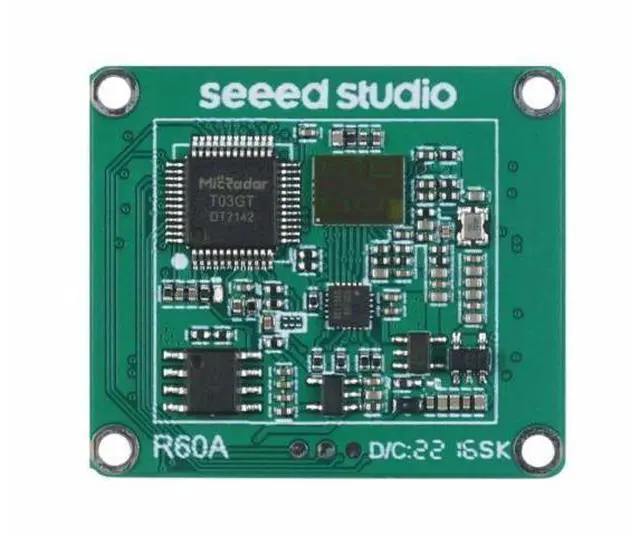

Description The R60AFD1 radar module uses 60GHz mmWave radar technology to achieve the functions of human activity detection including moving, falling, and stationary. Based on the FMCW radar system and 1 transmit 3 receive (1T3R) antenna, the radar through the algorithm accurately scans the body tomography, achieving the fall detection function by height difference and speed change of the human body. The module is suitable for top installation, and the detected area is a three-dimensional sector of 60° horizontally and 60° tilted and the measured distance is between 0.4 -3 m. The radar supports secondary development and it adapts to various scenarios and applications.
Using a universal UART communication interface provides an extra common protocol as 4 groups of I/O are reserved by the users definition. It can also be equipped with a host computer to output detection status and data, and its several groups of GPI Os can be customized and developed by users.
Note: 1. The radar is designed to be used for individual (human body) in the environment, if there are multiple targets, it will affect the accuracy and precision of the radar. 2. The LED on the module has been removed. 3. The 60GHz radar baud rate is 115200. Applications Elderly Care Home Security Smart Home Pinout

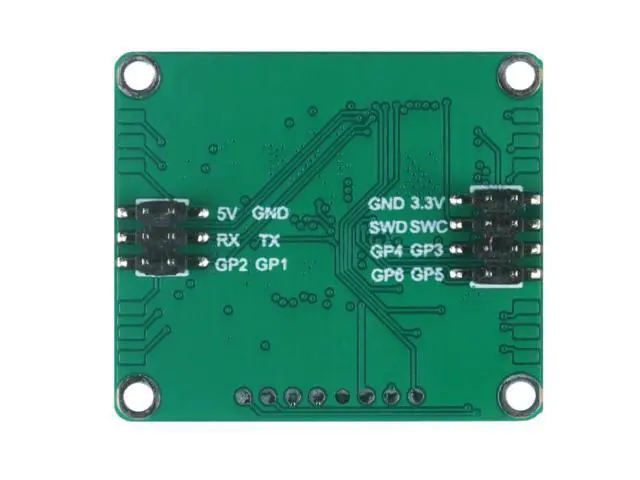

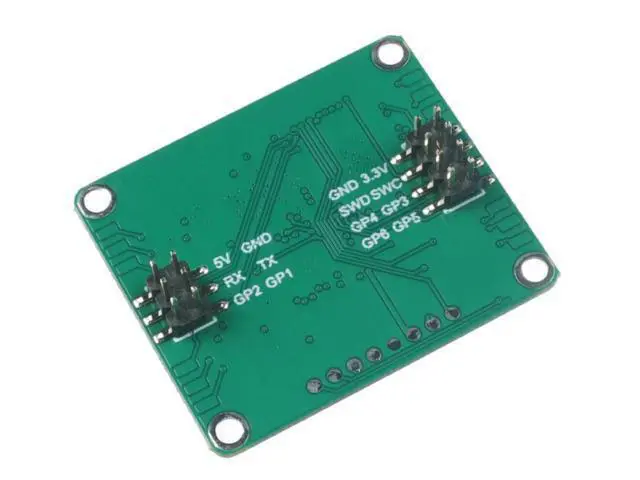

Interface 1: The 5V pin is the power supply interface for the sensor. RX and TX are the data transmission interfaces for the sensor. RX means serial receive and TX means serial transmit. The human presence
Using a universal UART communication interface provides an extra common protocol as 4 groups of I/O are reserved by the users definition. It can also be equipped with a host computer to output detection status and data, and its several groups of GPI Os can be customized and developed by users.
Note: 1. The radar is designed to be used for individual (human body) in the environment, if there are multiple targets, it will affect the accuracy and precision of the radar. 2. The LED on the module has been removed. 3. The 60GHz radar baud rate is 115200. Applications Elderly Care Home Security Smart Home Pinout
Interface 1: The 5V pin is the power supply interface for the sensor. RX and TX are the data transmission interfaces for the sensor. RX means serial receive and TX means serial transmit. The human presence
