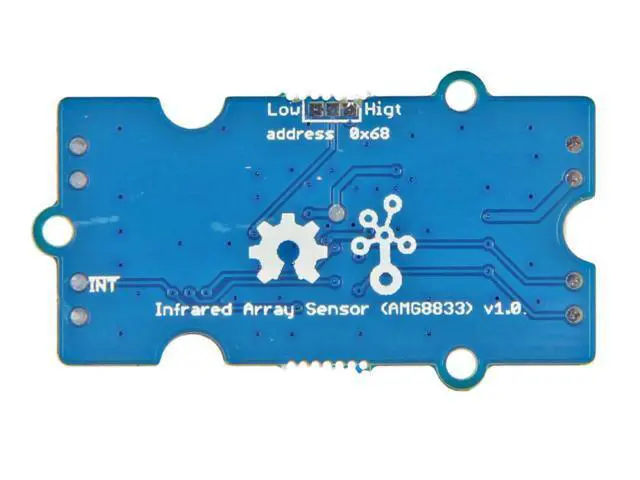

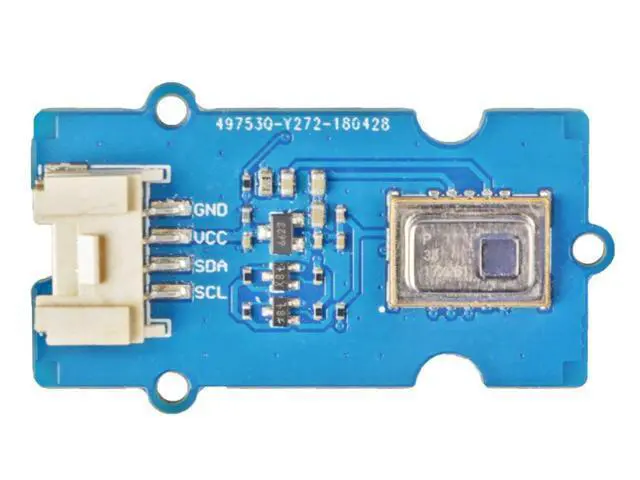

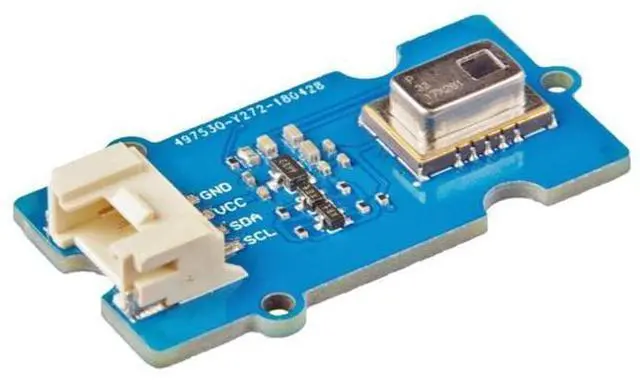

NGW-1pc Grove - AMG8833 8x8 Infrared Thermal Temperature Sensor Array
- Features; Compact and simple: Temperature detection of the two-dimensional area: 8 × 8 (64 pixels); Wide temperature range: Temperature range of measuring object: 0 °C to 80 °C +32 °F to +176 °F; High precision: Accuracy ± 2.5°C (4.5°F); Long detection distance: It can detect people from a distance of up to 7 meters (23) feet; Grove unified socket: The sensor ensures "Plug and Play" and could be versatile for various applications
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description Grove - AMG8833 8x8 Infrared Thermal Temperature Sensor Array is a high precision infrared array sensor based on advanced MEMS technology. This sensor can measure temperatures ranging from 0°C to 80°C (32°F to 176°F) and provide the accuracy of +- 2.5 °C ( 4.5 °F). It can support temperature detection of the two-dimensional area of 8 × 8 (64 pixels) and a maximum 7 meters detection distance. This is a high precision infrared array sensor based on advanced MEMS technology, which can measure temperatures ranging from 0°C to 80°C (32°F to 176°F) and provide the accuracy of +- 2.5 °C ( 4.5 °F).
It can support temperature detection of the two-dimensional area of 8 × 8 (64 pixels) and a maximum 7 meters detection distance. Applications High function home appliances (microwaves and air-conditioners) Energy saving (air-conditioning/lighting control) Digital signage Automatic doors/elevators
It can support temperature detection of the two-dimensional area of 8 × 8 (64 pixels) and a maximum 7 meters detection distance. Applications High function home appliances (microwaves and air-conditioners) Energy saving (air-conditioning/lighting control) Digital signage Automatic doors/elevators
Specifications

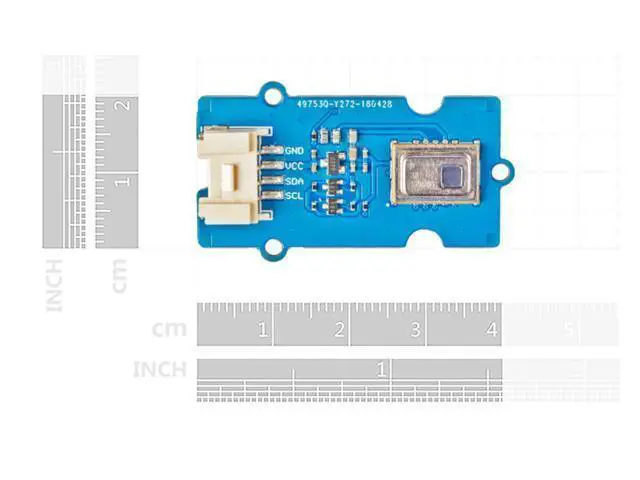

Dimensions 40mm x20mm x6mm Weight G. W 10g Battery Exclude Operating Voltage 3.3V / 5V Temperature range of measuring object 0 °C to 80 °C +32 °F to +176 °F Operating temperature range 0 °C to 80 °C +32 °F to +176 °F Storage temperature range 20 °C to 80 °C 4 °F to +176 °F Temperature accuracy Typical ± 2.5 °C ± 4.5 °F Viewing angle Typical 60 ° Optical axis gap Within Typical ± 5.6 ° Number of pixel 64 (Vertical 8 × Horizontal 8 Matrix) External interface I2C I2C Address 0x68 (default) \ 0x69 (optional) Hardware Overview Part List Grove - Infrared Temperature Sensor ArWarranty & Returns
