NGW-1pc Grove - Step Counter (BMA456)
Limited time offer, ends 07/18 By TERRA HAVEN
- Features; High sensitivity: With the support of BMA456, it has high sensitivity even in any acceleration range.; Excellent performance: Metadata can be processed quickly and the results obtained are more accurate.; Grove unified socket: The sensor ensures "Plug and Play" and could be versatile for various applications.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

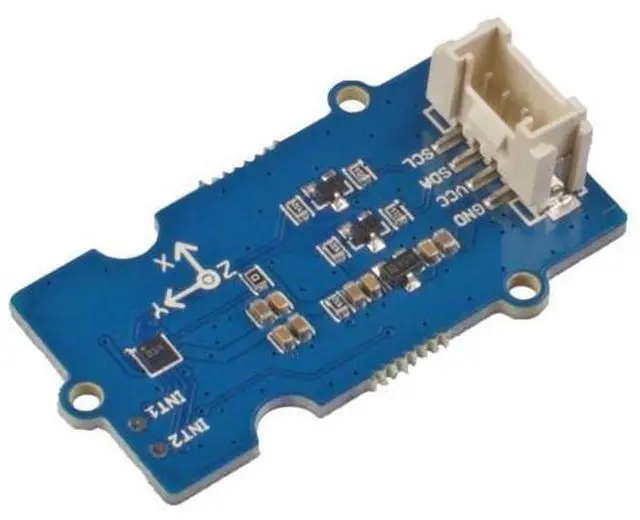

Description The Grove - Step Counter (BMA456) is based on BMA456, which is an exetremely small, triaxial, low-g high performance accelerations module. Thanks to the special algorithm of BOSCH, we made this module a portable pedometer. Relaiable, cost-effective, on top of that, it's very easy to use, you can easily add this plug and play module on your wearable devices. Application Applications with height constrains Plug and Play Step-Counter solution with watermark functionality Fitness applications / Activity Tracking Power management for wearable applications Display on/off and profile switching User interface without hardware buttons E-compass tilt compensation and data synchronization High performance angle measurements

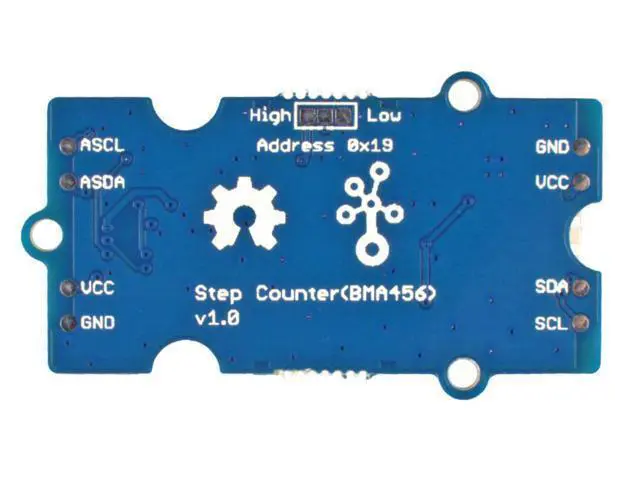

W 3.2 g Battery Exclude Operating Voltage 3.3V / 5V Acceleration Range ±2g, ±4g, ±8g, ±16g Sensitivity 16384 @±2g 8192 @±4g 4096 @±8g 2048 @±16g Interface I2C I2C Address 0x19 (default) / 0x18 (optional)
Package size L: 140mm
W: 90mm

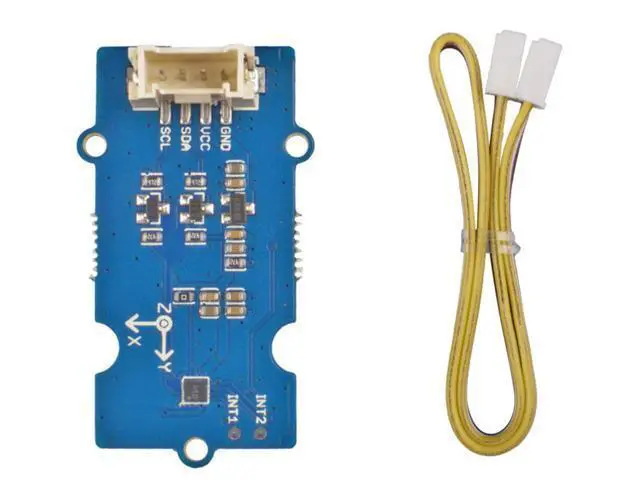

H: 10mm Hardware Overview Part List Grove - Step Counter (BMA456) *1 Grove Cable*1
Specifications

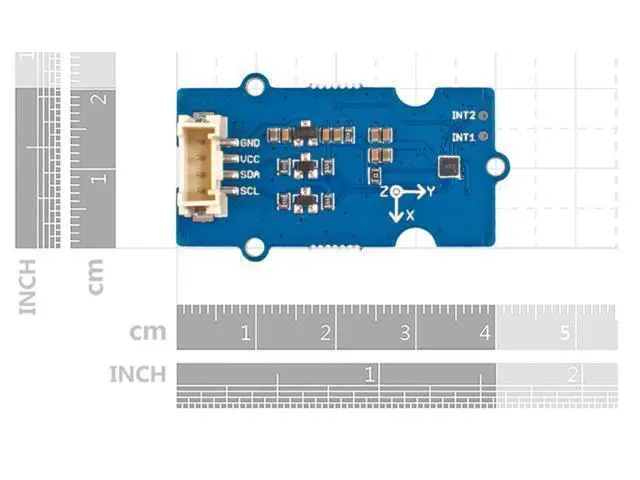

Dimensions 40mm x20mm x7mm Weight G.W 3.2 g Battery Exclude Operating Voltage 3.3V / 5V Acceleration Range ±2g, ±4g, ±8g, ±16g Sensitivity 16384 @±2g 8192 @±4g 4096 @±8g 2048 @±16g Interface I2C I2C Address 0x19 (default) / 0x18 (optional)
Package size L: 140mm
W: 90mm
H: 10mm Hardware Overview Part List Grove - Step Counter (BMA456) *1 Grove Cable*1
