NGW-1pc Grove - SEN54 All-in-one environmental sensor - VOC, RH, Temp, PM1.0/2.5/4/10 with proprietary algorithms, HVAC, Air Purifier
Limited time offer, ends 07/18 By TERRA HAVEN
- All-in-one enviromental sensor: providing accurate measurement of particulate matter, volatile organic compounds (VOCs), humidity and temperature.; Easy integration into various applications: the proprietary algorithms enable straightforward integration into Heating, Ventilation, Air Conditioning and Air Purifier; Adaptive algorithm: the STAR engine accelerates its response to ambient temperature which improves measurement accuracy and stability; Low power consumption: costs only 6.8 mA under RHT/Gas-Only Measurement Mode and 2.6 mA for Idle Mode; Superior sensing accuracy and lifetime: provide fully calibrated outputs with a digital interface and the high robustness enable fine performance for up to 10 years
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

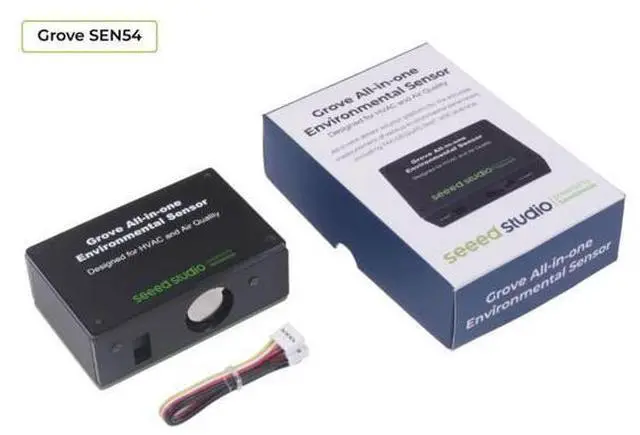

Grove-all in one environmental sensor SEN54 powered is an integrated, superior Grove IIC ambient sensor, assembling PM, VOC, RH, Temperature sensing functionality, delivering up to 7 types of environmental data signal, sensing in high accuracy and operating for long terms, born for HVAC(Heating, Ventilation and Air Conditioning) and air quality long years detecting applications. Powered by Sensirion, it represents fine sensing performance, and there will be only one Grove cable needed between the sensor and the single board, such as Wio terminal, Seeeduino, Arduino expansion board, Raspberry Pi expansion board, and XIAO expansion board, as simplifying the edge in the wild.
The sensor is equipped with sensing components that can change the magnitude of the current corresponding to a specific gas to measure VOC (Volatile Organic Compounds), where applies the same principle to sense Temp (Temperature), RH (Relative Humidity). There is a laser generator and a filter on the sensor as it utilizes the laser scattering method to calculate the particle size of the gas passing the sensor for precise PM 1.0, PM 2.5, PM4, and PM10 detection. It will continuously output 7 signals above and the sampling interval will be just 1 second.
Based on the complex mathematical algorithm and model, the sensor has been designed to output calibrated digital signals to ensure superior sensing accuracy. Meanwhile, the sensing components on it possess high robustness which makes it cable of operating 24
The sensor is equipped with sensing components that can change the magnitude of the current corresponding to a specific gas to measure VOC (Volatile Organic Compounds), where applies the same principle to sense Temp (Temperature), RH (Relative Humidity). There is a laser generator and a filter on the sensor as it utilizes the laser scattering method to calculate the particle size of the gas passing the sensor for precise PM 1.0, PM 2.5, PM4, and PM10 detection. It will continuously output 7 signals above and the sampling interval will be just 1 second.
Based on the complex mathematical algorithm and model, the sensor has been designed to output calibrated digital signals to ensure superior sensing accuracy. Meanwhile, the sensing components on it possess high robustness which makes it cable of operating 24
