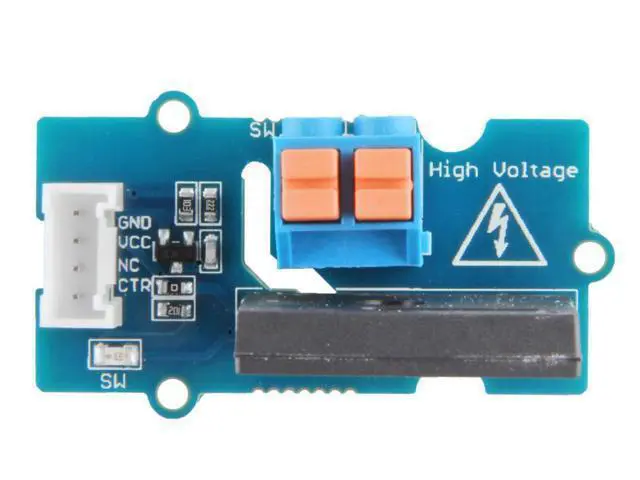

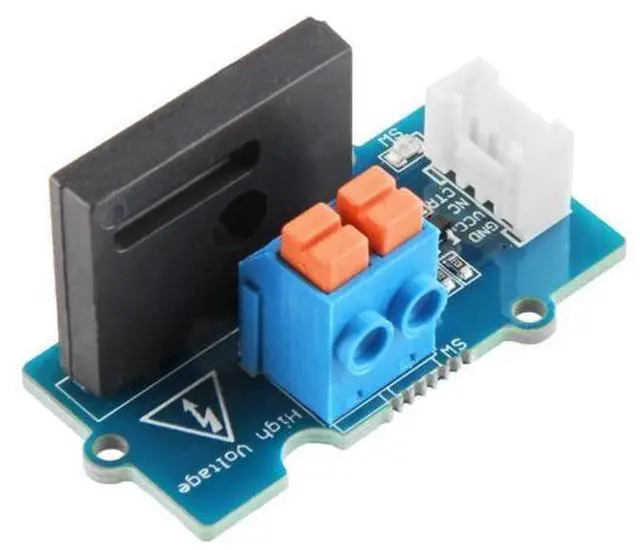

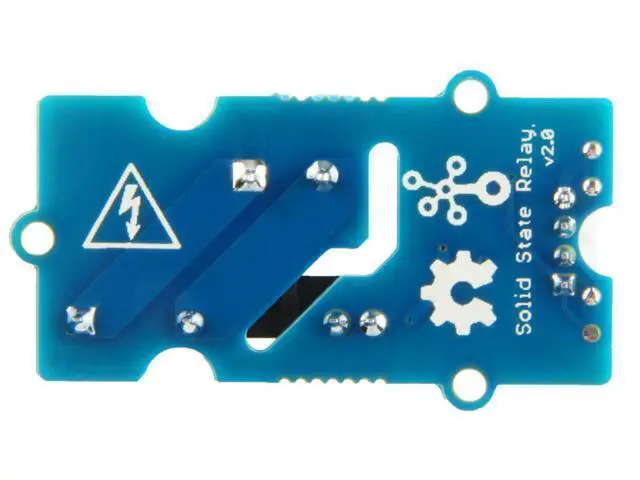

NGW-1pc Grove - Solid State Relay V2
- Advantages over mechanical relays:; 1-Solid-state relays have much faster switching speeds compared with electromechanical relays, and have no physical contacts to wear out.; 2-Totally silent operation.; 3-No physical contacts means no sparking, allows it to be used in explosive environments, where it is critical that no spark is generated during switching.; 4-Increased lifetime, even if it is activated many times, as there are no moving parts to wear and no contacts to pit or build up carbon.; 5-Compact, thin-profile SSR of monoblock construction with an all-in-one lead frame incorporates a PCB, terminals and heat sink, which is much smaller than mechanical relays, and can integrate more channels.; Disadvantages:; 1-When closed, higher resistance (generating heat), and increased electrical noise.; 2-When open, lower resistance, and reverse leakage current.; 3-Only works for AC laod.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Instead of using coil, packaged solid-state relays (SSR) use power semiconductor devices such as thyristors and transistors, which provide a much faster switching speed than the mechanical relays. The Grove - Solid State Relay V2 is based on the high-quality G3MC202P module, which allows you to use a 5VDC to control MAX. 240VAC. With the help of Grove interface, it becomes very convenient to use the SSR with your arduino. 1*Please be careful when working with high voltage AC load, please do not operate with power on. 2*This relay only works with AC load, if you use DC load, once the relay is turned on, it will always stay on.

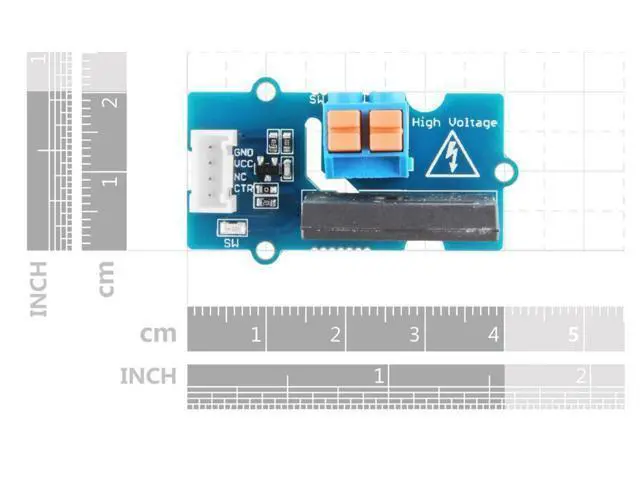

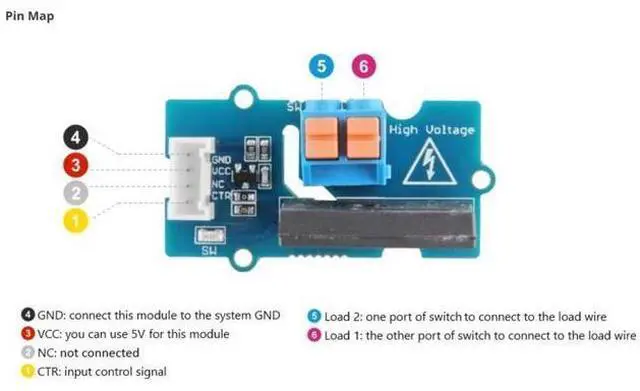

3*Due to the leakage current, we do not recommend you to use this relay with low power appliance. Typical Applications Operations that require low-latency switching, e. g. stage light control. Devices that require high stability, e. g. medical devices, traffic signals. Situations that require explosion-proof, anticorrosion, moisture-proof, e. g. coal, chemical industries. Pin Map Technical details Dimensions 40mm x20mm x25mm Weight G. W 131g Battery Exclude Operating Input Voltage 4~6V Rated Input Voltage 5V Load Voltage Range 75 to 264 VAC 50/60 Hz Rated Load Voltage 100 to 240 VAC 50/60 Hz Load Current 0.1 to 2 A Leakage Current 1.5 mA max.

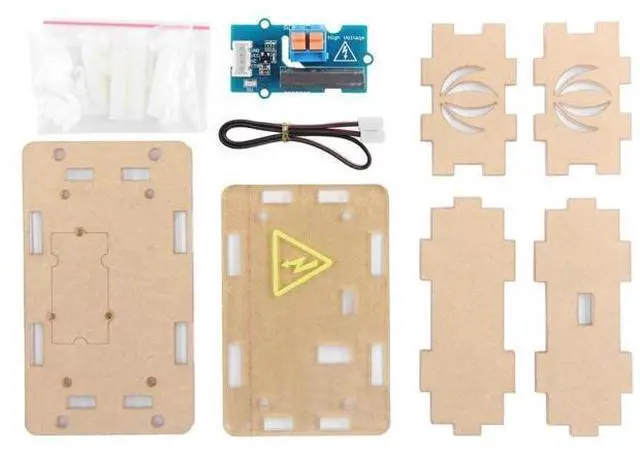

(at 200 VAC) Insulation Resistance 1, 000 M min. (at 500 VDC) Operating Temperature -30°C to 80°C (with no icing or condensation) Operating Humidity 45% to 85%RH Zero Cross support Part List Grove - Solid State Rel
3*Due to the leakage current, we do not recommend you to use this relay with low power appliance. Typical Applications Operations that require low-latency switching, e. g. stage light control. Devices that require high stability, e. g. medical devices, traffic signals. Situations that require explosion-proof, anticorrosion, moisture-proof, e. g. coal, chemical industries. Pin Map Technical details Dimensions 40mm x20mm x25mm Weight G. W 131g Battery Exclude Operating Input Voltage 4~6V Rated Input Voltage 5V Load Voltage Range 75 to 264 VAC 50/60 Hz Rated Load Voltage 100 to 240 VAC 50/60 Hz Load Current 0.1 to 2 A Leakage Current 1.5 mA max.
(at 200 VAC) Insulation Resistance 1, 000 M min. (at 500 VDC) Operating Temperature -30°C to 80°C (with no icing or condensation) Operating Humidity 45% to 85%RH Zero Cross support Part List Grove - Solid State Rel
