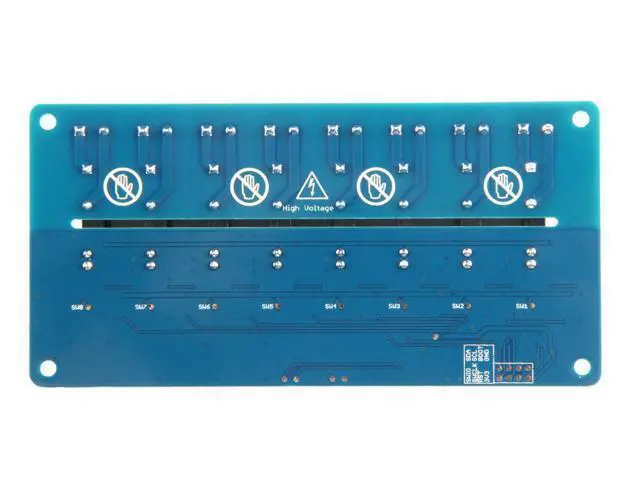

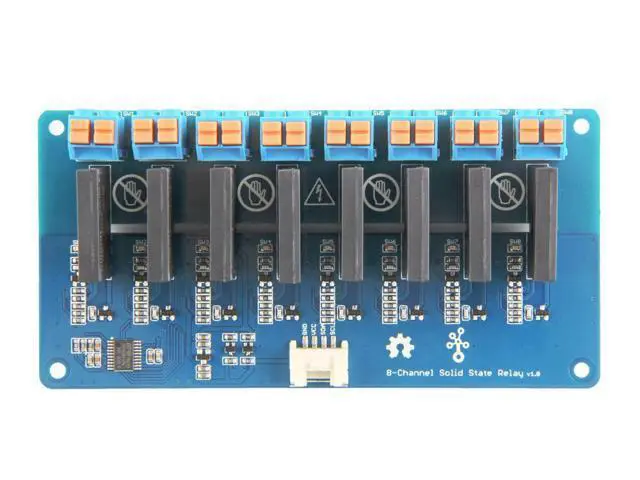

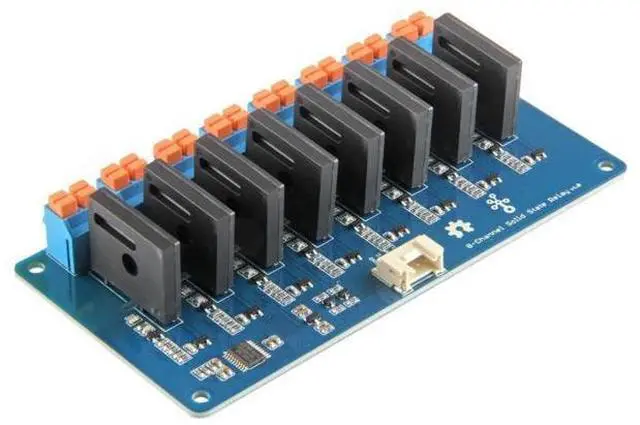

NGW-1pc Grove - 8-Channel Solid State Relay
Limited time offer, ends 07/18 By TERRA HAVEN
- High durability: Solid-state relays have much faster switching speeds compared with electromechanical relays, and have no physical contacts to wear out.; Outstanding safety: No physical contacts means no sparking, allows it to be used in explosive environments, where it is critical that no spark is generated during switching.; Long lasting: Increased lifetime, even if it is activated many times, as there are no moving parts to wear and no contacts to pit or build up carbon.; Compact size: Much smaller than mechanical relays, and can integrate more channels.; Grove unified socket: The sensor ensures "Plug and Play" and could be versatile for various applications.; Description
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Attention 1*Please be careful when working with high voltage AC load, please do not operate with power on. 2*This relay only works with AC load, if you use DC load, once the relay is turned on, it will always stay on. 3*Due to the leakage current, we do not recommend you to use this relay with low power appliance. The Grove - 8-Channel Solid State Relay is based on the high-quality G3MC202P module, which allows you to use a 5VDC to control MAX. 240VAC. Instead of using coil, packaged solid-state relays (SSR) use power semiconductor devices such as thyristors and transistors, which provide a much faster switching speed than the mechanical relays.
The Grove - 8-Channel Solid State Relay is based on the high-quality G3MC202P module, which allows you to use a 5VDC to control MAX. 240VAC. With the help of Grove interface, it becomes very convenient to use the SSR with your arduino. We use an on-board STM32F030F4P6 to control the channels separately. The command from Arduino or other boards is transmit via the I2C interface, the on-board STM32F030F4P6 will parse the command, so that you can control the switch you want. Application Operations that require low-latency switching, e. g.
stage light control. Devices that require high stability, e. g. medical devices, traffic signals. Situations that require explosion-proof, anticorrosion, moisture-proof, e. g. coal, chemical industries.
The Grove - 8-Channel Solid State Relay is based on the high-quality G3MC202P module, which allows you to use a 5VDC to control MAX. 240VAC. With the help of Grove interface, it becomes very convenient to use the SSR with your arduino. We use an on-board STM32F030F4P6 to control the channels separately. The command from Arduino or other boards is transmit via the I2C interface, the on-board STM32F030F4P6 will parse the command, so that you can control the switch you want. Application Operations that require low-latency switching, e. g.
stage light control. Devices that require high stability, e. g. medical devices, traffic signals. Situations that require explosion-proof, anticorrosion, moisture-proof, e. g. coal, chemical industries.
Specifications

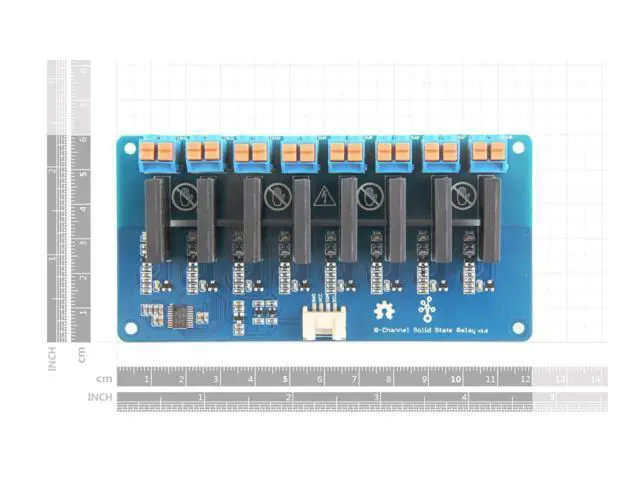

Dimensions 120mm x60mm x25mm Weight G. W 255g Battery Exclude Operating Input VoltageWarranty & Returns
