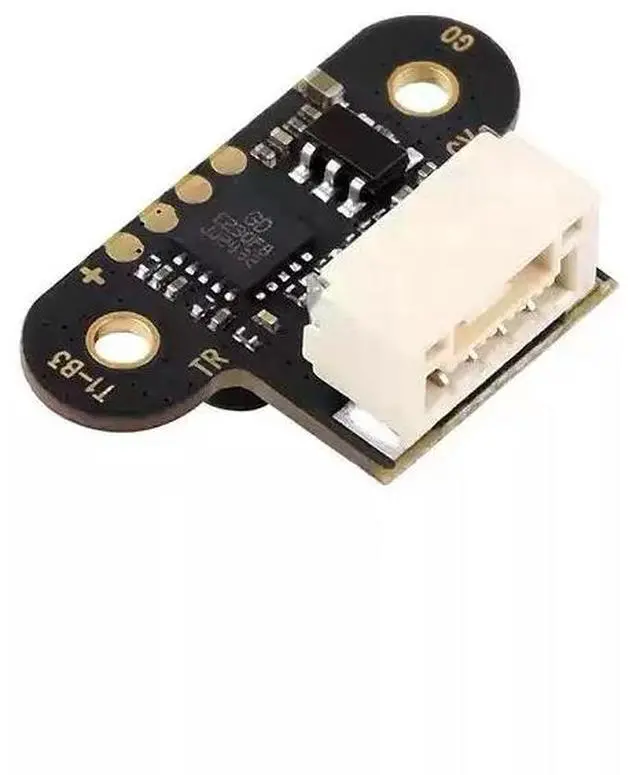

Miniature TOF Laser Range Sensor Module UART / I2C Serial Interface, LiDAR Distance Measurement for Robotics / Drones / Obstacle Avoidance
- Typical Ranging Range 0.02m ~ 7.8m
- Typical Ranging Accuracy 0.02m ~ 7.8m ± 4cm
- Wavelength 940nm
- Field of View (FOV) 2° ~ 3°
- Communication Interface Default: UART (TTL signal level 3.3V)
- I²C (supports parallel connection of multiple modules, slave address: 0x08 + Module ID)
- I/O complementary level output (this mode does not provide distance data)
- Communication Baud Rate UART: 4.8Kbps ~ 3000Kbps (default 921.6Kbps)
- I²C: up to 400Kbps
- Supply Voltage 4.3V ~ 5.2V
- Power Consumption 100mW (UART active output, supply voltage 5.0V, current 20mA)
- Product Weight 1g
- Operating Temperature -10°C ~ 60°C
- Product Dimensions 18.8 × 12 × 10.3 mm (L × W × H)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Typical Ranging Range 0.02m ~ 7.8m
Typical Ranging Accuracy 0.02m ~ 7.8m ± 4cm
Wavelength 940nm
Field of View (FOV) 2° ~ 3°
Communication Interface Default: UART (TTL signal level 3.3V)
I²C (supports parallel connection of multiple modules, slave address: 0x08 + Module ID)
I/O complementary level output (this mode does not provide distance data)
Communication Baud Rate UART: 4.8Kbps ~ 3000Kbps (default 921.6Kbps)
I²C: up to 400Kbps
Supply Voltage 4.3V ~ 5.2V
Power Consumption 100mW (UART active output, supply voltage 5.0V, current 20mA)
Product Weight 1g
Operating Temperature -10°C ~ 60°C
Product Dimensions 18.8 × 12 × 10.3 mm (L × W × H)
