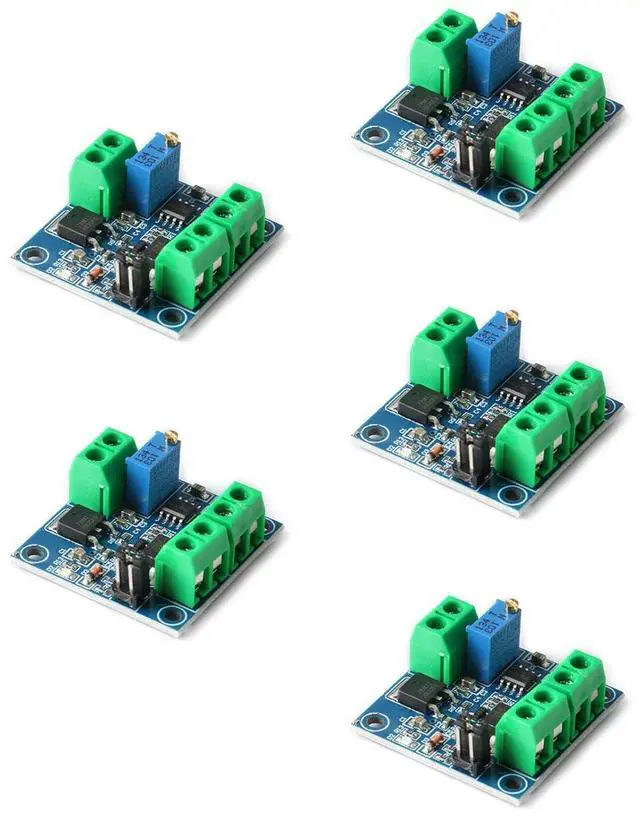

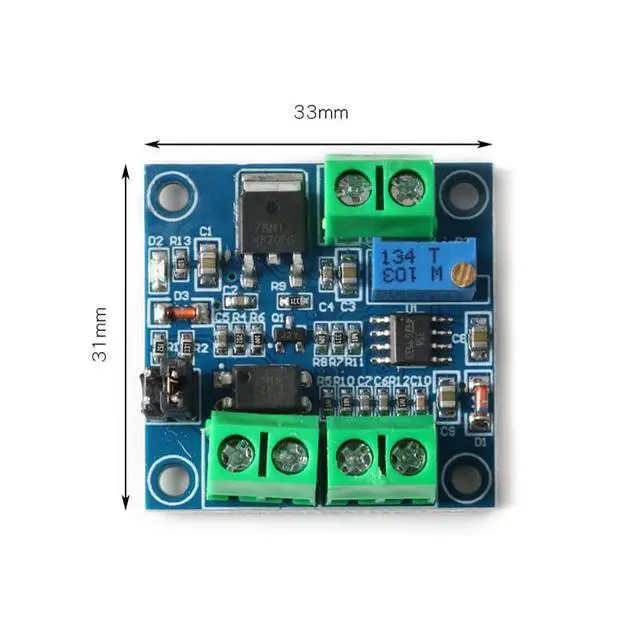

5Pcs PWM to Voltage Module 0%-100 PWM to 0-10V Voltage Signal Converter Voltage Converter Module for PWM Industrial Control

Product description We delivering products that are designed to elevate your projects to the next level. Whether you are a hardware engineer, hobbyist, student, or professional. Our development boards and components are here to help. Welcome to JESSINIE, for development boards and electronic components. At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets to meet your project needs. At JESSINIE, We focus on the importance of reliable and efficient products, we prioritize quality and performance in everything we offer.

Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE.
Conversion range: 0%-100% PWM to 0-10V voltage, allowable
error: 5%
Module operating voltage: DC
12V-30V; (power requirement: greater than 100MA), PWM
signal receiving frequency range: 1KHZ-3KHZ

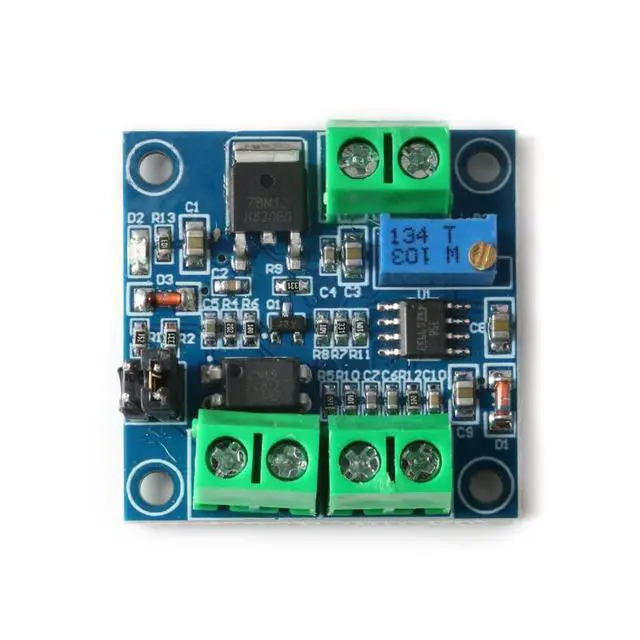

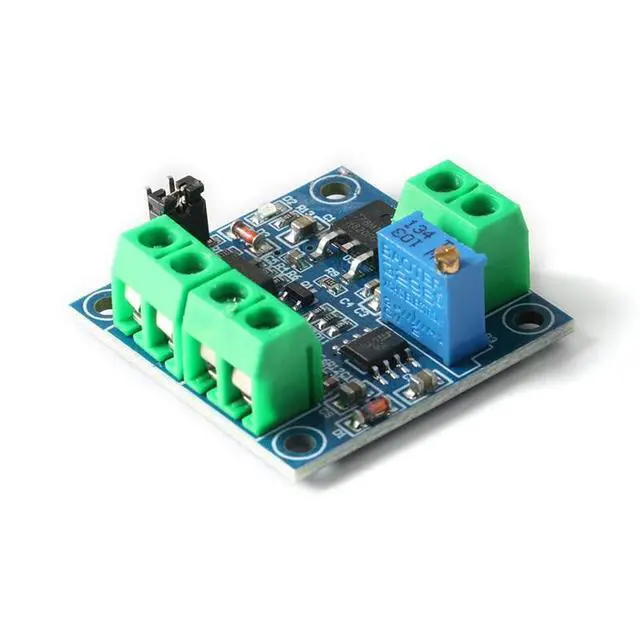

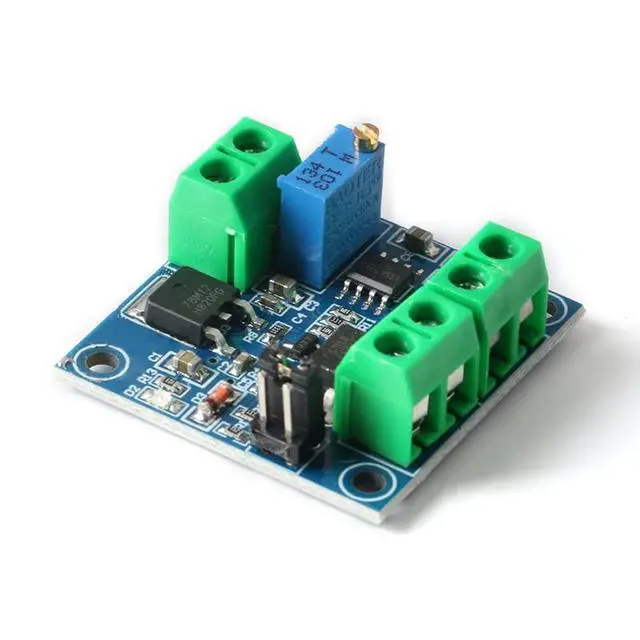

PWM signal input level range: peak 4.5V to 10V level, jump pin inserted at 5V. This kind of level signal is mainly aimed at the interface of conventional industrial control cards (such as MACH3 board) and 5V CPU. The peak value is 12 to 24V, and the jump pin is inserted at 24V. This kind of level signal is mainly aimed at the conventional PLC interface. Using single-chip embedded technology, easy to operate, can be fine-tuned by potentiometer By short-circuit risk selection of PWM signal input level range, the module is small, easy to carry and easy to use Product Description The PWM to voltage module LC-LM358-PWM2V can convert PWM digital signals into 0 to 10V analog signals. Can be used for signal interface switching of PLC or other industrial control boards. The output voltage is adjusted by adjusting the duty cycle of the PWM. The module size is small and easy to apply in different places
VCC: Working power 12V-30V
GND: Working power source
PWM: Input PWM signal positive end
GND: Negative end of input signal
VOUT: Output voltage 0-10V
GND: Output voltage ground
Operating instructions: After power-on, when there is no input signal, the output is 0V, and only when there is input can there be output. When powering on for the first time, it is better to do a calibration and debugging: find a signal with 50% duty ratio to connect to PWM, GND, and the amplitude corresponds to the relative jump needle. The frequency is 1KHZ-3KHZ, and the two ports of VOUT and GND are measured with a multimeter. At this time, the meter is displayed at about 5V. Adjust the potentiometer on the board to make the multimeter display at 5.00V. This calibrates the correspondence between your pulse signal and this module. When the frequency changes, the correspondence may shift and need to be recalibrated The output voltage can be adjusted by adjusting the duty cycle The accuracy can be controlled by adjusting the potentiometer. Voltage to PWM Module 0-5V 0-10V to 0%-100% V-PWM Module XY-GMOS High Power MOS Tube FET Trigger Switch Driver Module PWM 170W High Power H Bridge Motor Driver Module NMOS Brake Forward Reverse PWM CP2112 USB to Serial Adapter USB 2.0 USB to I2C Communication Module Signal Generator XY-KPWM 1-Channel PWM Generator 1Hz-150kHz Dual Mode PWM Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Price $ 14.95 $14. 95 $ 8.95 $8. 95 $ 17.95 $17.
