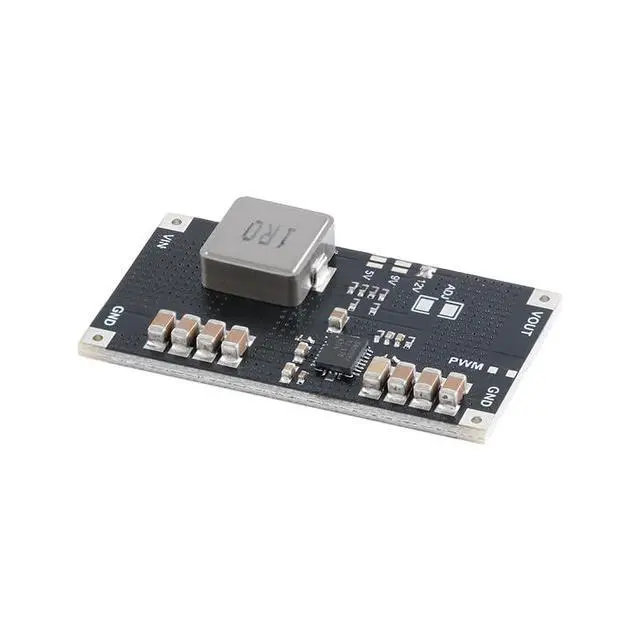

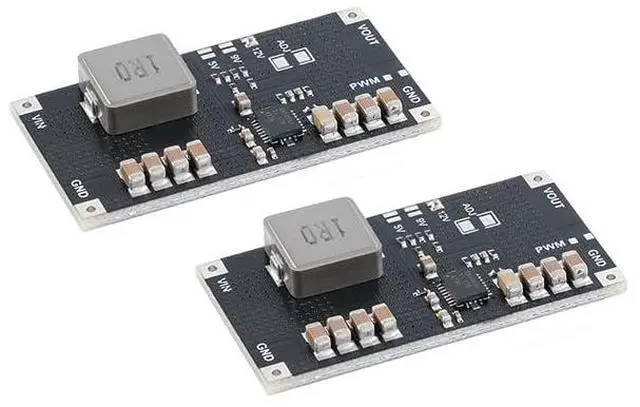

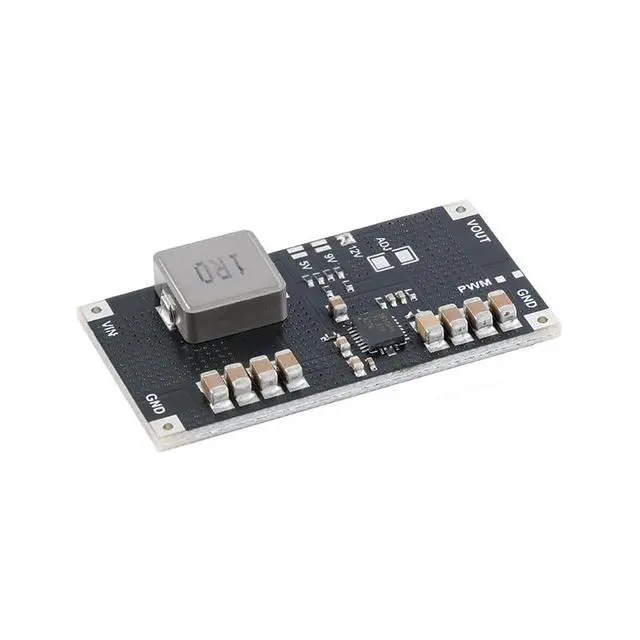

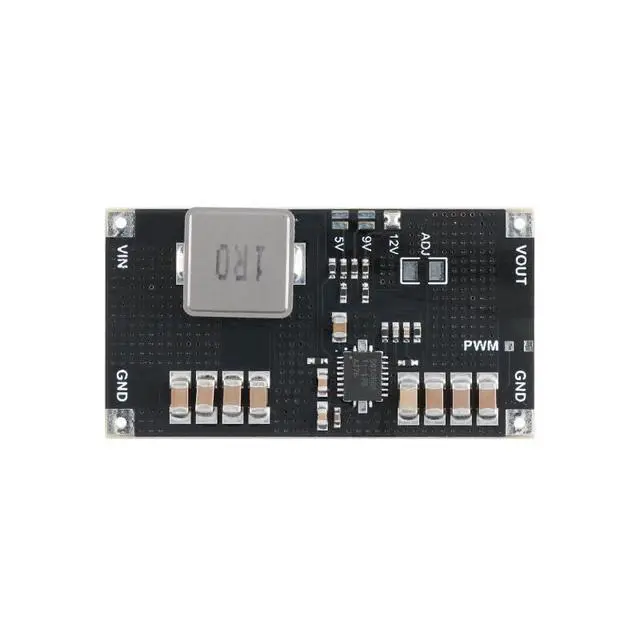

2PCS TPS61088 DC-DC Step Up Boost Power Converter 12V 10A 1MHz High Power Voltage Regulator Power Module Supply Module PWM PFM
- This module adopts the TI TPS61088 power chip scheme, with stable performance, small ripple, and 10A switching current capacity, with a switching frequency of about 1MHz; The module provides two operating modes: PWM and PFM, which can be adjusted by the user (default PFM low-power mode), high-quality tantalum capacitors on board (adjustable version), and high current inductors. The use of high-quality components further improves module performance and stability.; The module has stability that is unmatched by most other boost modules when outputting high power. It is a good choice for users to use multiple lithium batteries in parallel to supply boost voltage and apply it to high current output of 5V voltage 4A/5A; Similarly, boosting to a voltage of 9V/12V is not a problem. The output power can reach a Highest of 30W, with 9V and 12V voltage outputs. When outputting in high current situations, users only need to do a good job of heat dissipation to obtain good on-load output ripple.; Unless otherwise specified, the following parameters are all tested in PWM mode (recommended operating mode).
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description We delivering products that are designed to elevate your projects to the next level. Whether you are a hardware engineer, hobbyist, student, or professional. Our development boards and components are here to help. Welcome to JESSINIE, for development boards and electronic components. At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets to meet your project needs. At JESSINIE, We focus on the importance of reliable and efficient products, we prioritize quality and performance in everything we offer.
Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE.
Product parameter Module type: Switching power supply, boost power supply
Input voltage: DC2 7-12V
Input current: 9A (max)
Output current: determined by input
Output voltage: DC4 5- 12.6V
Output power: 30W (max), requiring heat dissipation measures
Switching frequency: approximately 1MHz
Working mode: PWM/PFM The following parameters are measured when the boost value is adjusted to 9V in PWM mode, for user reference
Static current: 15-65ma (PWM mode) 200ua -600ua (PFM mode)
Output ripple: 30mVpp (no-load)
Output efficiency: 92% (max)
Adjustment method: potentiometer, counterclockwise boost Jumper pad selection, 5/9/12V, ADJ pad adjustable
Module interface: KF301-5 08/Pad
Module weight: 10g/5 4g

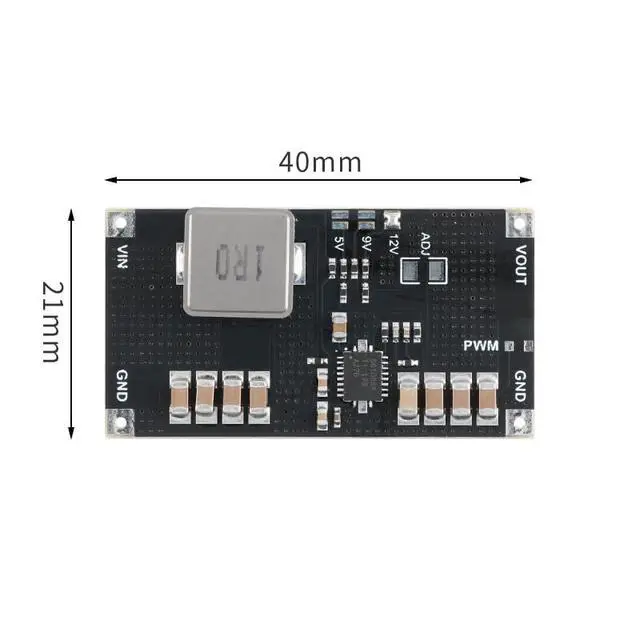

Module size: 40 x 22mm (measured manually, with deviations) See More
Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE.
Product parameter Module type: Switching power supply, boost power supply
Input voltage: DC2 7-12V
Input current: 9A (max)
Output current: determined by input
Output voltage: DC4 5- 12.6V
Output power: 30W (max), requiring heat dissipation measures
Switching frequency: approximately 1MHz
Working mode: PWM/PFM The following parameters are measured when the boost value is adjusted to 9V in PWM mode, for user reference
Static current: 15-65ma (PWM mode) 200ua -600ua (PFM mode)
Output ripple: 30mVpp (no-load)
Output efficiency: 92% (max)
Adjustment method: potentiometer, counterclockwise boost Jumper pad selection, 5/9/12V, ADJ pad adjustable
Module interface: KF301-5 08/Pad
Module weight: 10g/5 4g
Module size: 40 x 22mm (measured manually, with deviations) See More
