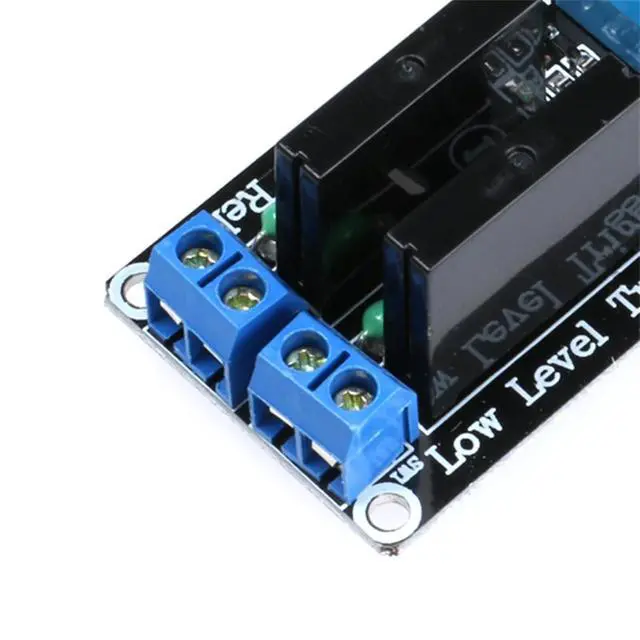

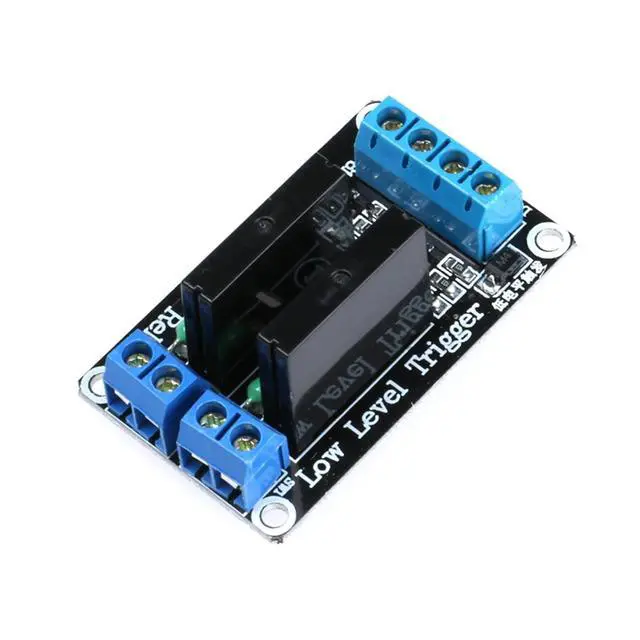

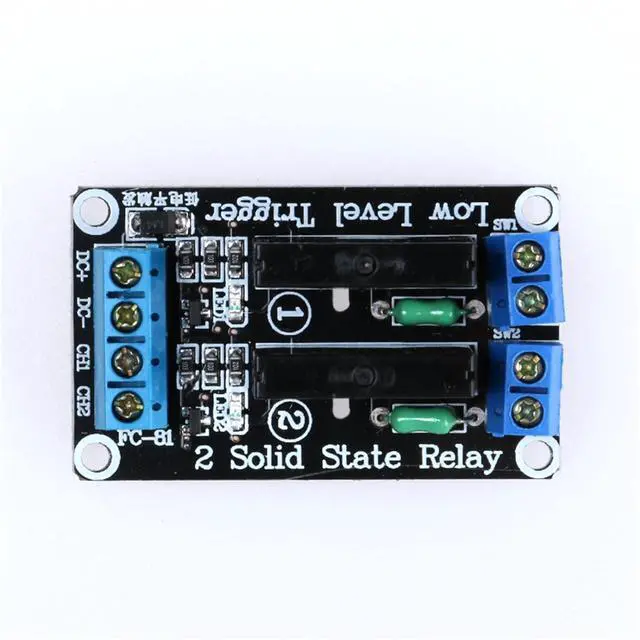

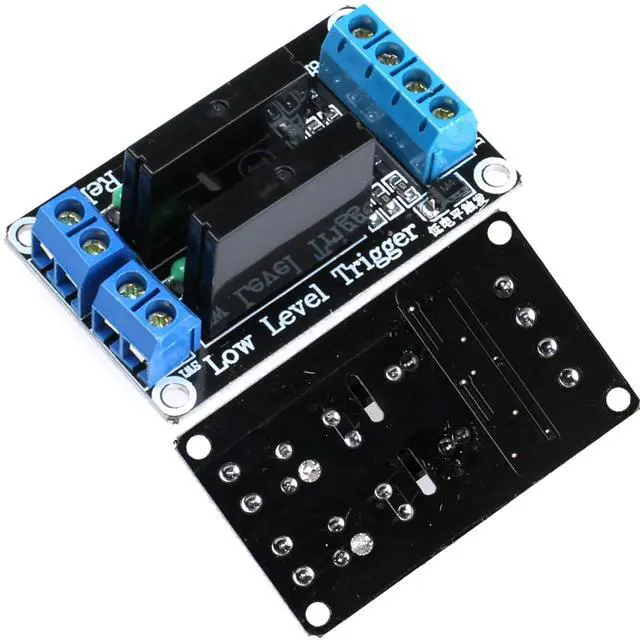

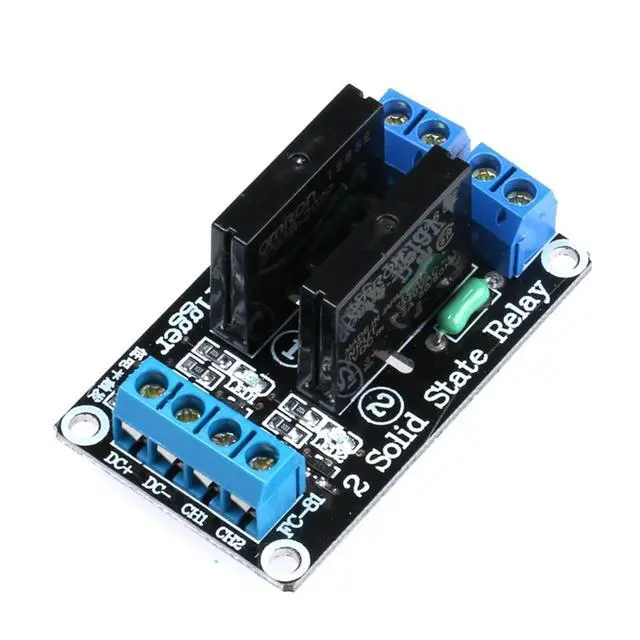

2 Channel 5V Low Level Trigger Solid State Relay Module with Fuse, 2 Way 250V 2A for Industrial Control Applications
- **Reliable Performance with OMRON Relay**: Equipped with a high-quality OMRON 5V solid state relay, handling up to 250V AC and 2A, ensuring stable and dependable operation for industrial control applications.; **Compact and Convenient Design**: With dimensions of 25.2mm x 34.4mm x 24.0mm, this module is designed to fit into tight spaces, while the blue KF301 terminal simplifies installation and connectivity.; **Low-Level Trigger Activation**: Operates efficiently with a low-level trigger voltage of 0-1.5V, providing seamless control of AC current devices, making it ideal for automation projects.; **Energy Efficient**: Requires only 5V DC input power, consuming less than 160mA, making it a cost-effective solution for continuous operation in industrial settings.; **Versatile Industrial Use**: Perfect for controlling AC devices in various applications, such as home automation, industrial machines, and safety systems, ensuring that your systems run smoothly and safely.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description Product characteristics OMRON 5V solid state relay 250V 2A, output live resistance fuse 250V 2A. The blue KF301 terminal is more convenient to connect to the control line. When the signal triggering terminal has a low level trigger, the relay will be connected, and the device will work with electricity. This module can only be used to control AC current, and can not control DC current. Power must be DC, 5V power supply.
Size: 25.2 mm* 34.4 mm* 24.0 mm (length * width * height)
Input power: 5V DC (<=160MA)
Low level: 0- 1.5V state low level relay
ON High level: 2.5 -5V state high level relay
OFF Instructions for use: Take 1 relay modules as an example, the same principle of other routes
Workspace: Input
power: 5V DC (<=160MA)
Trigger signal: 0- 1.5V state low level relay ON. 2.5 -5V state high level relay OFF
Control area: If the connection diagram is connected, this module can only be used to control AC current, but not DC current. Electronic OK Wire & Solder Wire 8-Color Wrapping Wire Add to Cart 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options Customer Reviews 4.5 out of 5 stars 315 4.6 out of 5 stars 104 4.9 out of 5 stars 22 4.6 out of 5 stars 104 4.9 out of 5 stars 9 4.6 out of 5 stars 104 4.8 out of 5 stars 15 Model P/N B-30-1000 P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 P/N B-30-1000 XH-100 External Wire Diameter 0.56 mm 0.56 mm 0.5 mm 0.56 mm 0.8 mm 0.56 mm 0.3 mm Core Sectional Area 0.2 mm² 0.2 mm² none 0.2 mm² none 0.2 mm² none Material PVC PVC solder PVC solder PVC solder Wire Gauge 30AWG 30AWG none 30AWG none 30AWG none Temperature 105 113 183 107 183 112 183
