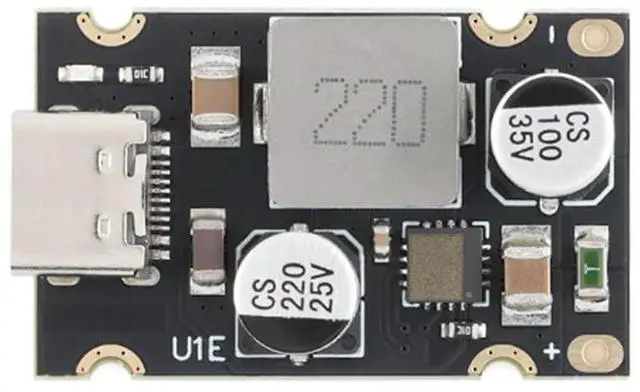

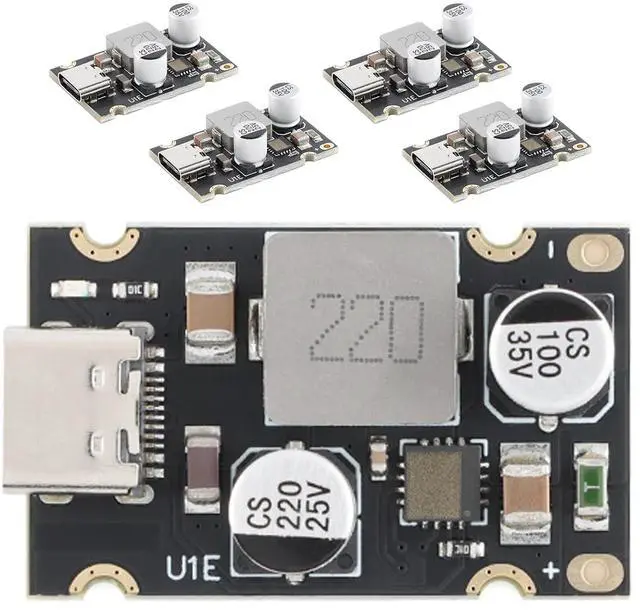

5Pcs PD65W Charging Module Type-C Interface PD3.1 PPS Fast Charge QC3.0 SCP Full Protocol Charger Board 65W DC8-30V
- High-Efficiency Charging with Versatile Compatibility Experience seamless charging with the JESSINIE PD65W Fast Charging Module, compatible with a wide range of devices through its Type-C interface. Its advanced technology supports multiple charging protocols like QC3.0 and PD3.1, ensuring efficient power delivery up to 65W. Perfect for all your fast-charging needs.; Robust Protection for Safe Charging Prioritize safety with built-in protections against overvoltage, undervoltage, overcurrent, and short circuits. The module also features overtemperature protection, making it a reliable choice for long-term use. Charge with confidence, knowing your devices are well-protected.; Wide Input Voltage Range for Flexibility With an input voltage range of DC 8~32V, this charging module offers flexibility in various power environments. Whether you're at home, in the office, or on the go, maintain consistent and efficient charging for all your devices.; Compact Design with Enhanced Compatibility The module's compact design, ensures easy integration into diverse setups. Its compatibility with tuning fork shrapnel plugs enhances its versatility, making it a practical addition to any charging station.; User-Friendly Operation and Installation Enjoy hassle-free operation with simple installation guidelines. For optimal performance, connect your power adapter before integrating the module. This user-centric design ensures you achieve maximum output without technical complications.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
When using a 20 ^ 24V power adapter as an input, it is recommended to power on the power supply before connecting to this module, otherwise it may occur that the power supply is powered on slowly This resulted in an error in the module matching power and the inability to output 65W. There are two types of
DC models: 5521 and 5525.

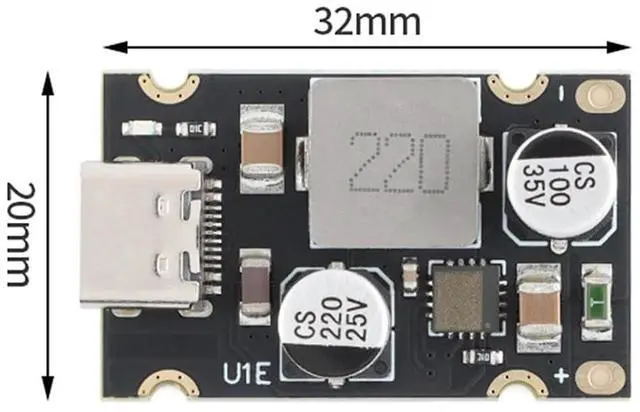

5521: Outer diameter 5.5 mm, inner diameter 2 1mm; 5525: Outer diameter 5.5 mm, inner diameter 2 5mm The length of the DC model is increased by 12mm compared to the standard model, which is 44mm. Both the Type-c mother seat and the DC seat protrude about 1mm from the plate edge. The 5521 model is also compatible with the 5525 plug with tuning fork shrapnel, as shown in the following figure Product characteristics
Input voltage: DC 8~32V
Output voltage: When connected to a power receiving device compatible with TYPE-C Automatic adjustment between 3.3V and - 21V after standby (input power The voltage should be higher than the output voltage. To trigger a 20V fast charge Input voltage should be higher than 20V)
Output power: maximum 65W (5V3A. 9V3A, 12V3A 20V 3.25A, etc. )
Conversion efficiency: 92% - 97%
Output voltage ripple: <200mV
No-load current: <3mA Input overvoltage and undervoltage protection Input overcurrent protection Output overcurrent and short circuit protection Overtemperature protection for harvester Supported charging protocols BC 1.2, Apple Protocol Qualcomm QC 2.0 and QC 3.0 Huawei Fast Charging Protocol FCP and SCP Samsung Fast Charging Protocol AFC MTK PE+ 1.1 and MTK PE+ 2.0 PD 2.0 /PD 3.1 (PPS) output protocol Product Application Various types of power transformation fast charging output
DC models: 5521 and 5525.
5521: Outer diameter 5.5 mm, inner diameter 2 1mm; 5525: Outer diameter 5.5 mm, inner diameter 2 5mm The length of the DC model is increased by 12mm compared to the standard model, which is 44mm. Both the Type-c mother seat and the DC seat protrude about 1mm from the plate edge. The 5521 model is also compatible with the 5525 plug with tuning fork shrapnel, as shown in the following figure Product characteristics
Input voltage: DC 8~32V
Output voltage: When connected to a power receiving device compatible with TYPE-C Automatic adjustment between 3.3V and - 21V after standby (input power The voltage should be higher than the output voltage. To trigger a 20V fast charge Input voltage should be higher than 20V)
Output power: maximum 65W (5V3A. 9V3A, 12V3A 20V 3.25A, etc. )
Conversion efficiency: 92% - 97%
Output voltage ripple: <200mV
No-load current: <3mA Input overvoltage and undervoltage protection Input overcurrent protection Output overcurrent and short circuit protection Overtemperature protection for harvester Supported charging protocols BC 1.2, Apple Protocol Qualcomm QC 2.0 and QC 3.0 Huawei Fast Charging Protocol FCP and SCP Samsung Fast Charging Protocol AFC MTK PE+ 1.1 and MTK PE+ 2.0 PD 2.0 /PD 3.1 (PPS) output protocol Product Application Various types of power transformation fast charging output
