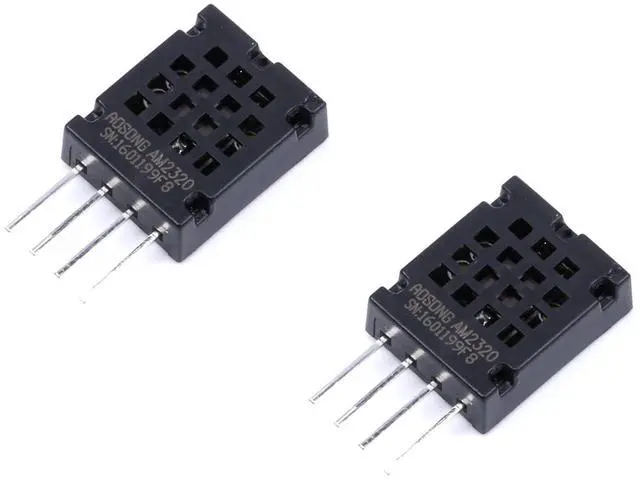

2Pcs AM2320 Temperature and Humidity Sensor Capacitive Temperature and Humidity Detector Humidity Sensor
- Supply voltage: DC: 3.3-5.5V; Measurement range: temperature: -40~+80°C, humidity: 0~99.9%RH; Accuracy: temperature: ± 0.5°C, humidity: ± 3% RH (25°C); Resolution: temperature: 0.1°C, humidity: 0.1%RH; Attenuation value: temperature:<0.1°C/year, humidity: <0.5%RH/year; sensor: capacitive humidity sensor; Output signal: single bus/12C signal; Shell material: ABS plastic; Excellent quality, ultra-fast response, strong anti-interference ability, extremely cost-effective
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AM2320 digital temperature and humidity sensor is a temperature and humidity composite sensor containing calibrated digital signal output. The special temperature and humidity collection technology is adopted to ensure the product has extremely high reliability and excellent long-term stability. The sensor includes a capacitive humidity sensing element and a high-precision integrated temperature measuring element, and is connected to a high-performance microprocessor. AM2320 communication mode adopts single bus and standard I2C communication mode. The standard single bus interface makes system integration easy and fast. The ultra-small size, extremely low power consumption, and the signal transmission distance can reach more than 20 meters, making it the best choice for various applications and even the most demanding applications.
The I2C communication mode adopts standard communication timing, and users can directly hang on the I2C communication bus without additional wiring and is simple to use. Both communication methods directly output digital information such as humidity, temperature and CRC verification after temperature compensation. Users do not need to perform secondary calculations on the digital output, nor do they need to perform temperature compensation on humidity, so they can obtain accurate temperature and humidity information. The two communication modes can be switched freely, and users can choose freely. It is convenient to use and should have a wide range of fields.
The product is 4-lead, easy to connect, and special packaging forms can be provided according to user needs.
The I2C communication mode adopts standard communication timing, and users can directly hang on the I2C communication bus without additional wiring and is simple to use. Both communication methods directly output digital information such as humidity, temperature and CRC verification after temperature compensation. Users do not need to perform secondary calculations on the digital output, nor do they need to perform temperature compensation on humidity, so they can obtain accurate temperature and humidity information. The two communication modes can be switched freely, and users can choose freely. It is convenient to use and should have a wide range of fields.
The product is 4-lead, easy to connect, and special packaging forms can be provided according to user needs.
