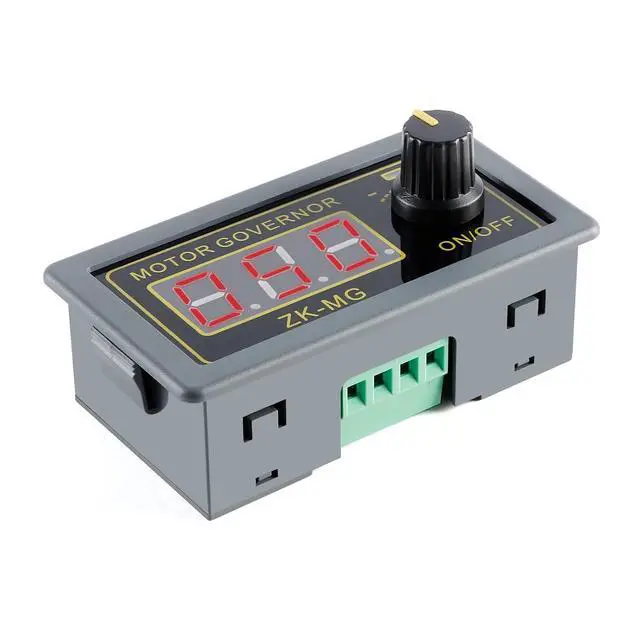

ZK-MG PWM Motor Speed Controller LED Digital Display Adjustable Signal Generator Driver Module 5V 12V 24V DC Motor Governor High Precision Speed Regulator with Shell
- ZK-MG PWM Motor Controller has its own soft start function. When starting the motor, the current increases slowly without inrush current, which effectively protects the motor and prolongs the service life of the motor.; The upper and lower limits of the duty cycle and the working frequency can be set by adjusting the knob, which is convenient for buyers to match and use according to the working characteristics of their own motors.; The encoder knob adjusts the motor speed and displays the actual percentage through the numerical value, which is more accurate and more efficient than ordinary potentiometers; Operating frequency: 1KHz ~ 99KHz adjustable, duty cycle: 0-100%, operating voltage: DC5V ~ 30V; The product comes with a start-stop button, and can also be controlled by an external switch; with a standard instrument housing, it is convenient for buyers to install and use
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description We delivering products that are designed to elevate your projects to the next level. Whether you are a hardware engineer, hobbyist, student, or professional. Our development boards and components are here to help. Welcome to JESSINIE, for development boards and electronic components. At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets to meet your project needs. At JESSINIE, We focus on the importance of reliable and efficient products, we prioritize quality and performance in everything we offer.
Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE.
Product Description Working voltage: DC5V ~ 30V, input anti-reverse connection protection
Rated current: 5A maximum current 15A
Maximum power: 150W
Operating frequency: 1KHz ~ 99KHz adjustable, 1KHz stepping, default frequency 20KHz, accuracy about 1%
Duty cycle: 0-100%, 1% step
Product size: 79mm * 43mm * 26mm
Product weight: 66g Power-down storage for all settable parameters. Digital encoder knob operation

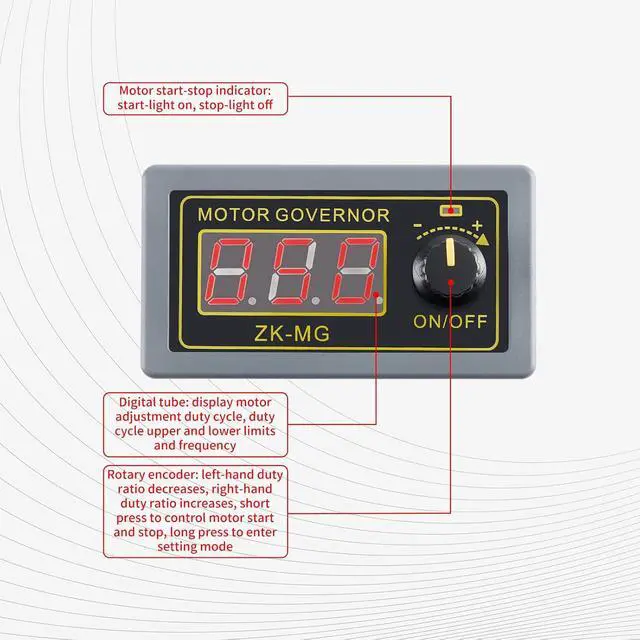

In the default interface: (the default is the duty cycle) Short Press-Switch Motor Start and Stop Counterclockwise rotation-duty cycle decreases Clockwise rotation-duty cycle increases Long press-enter the setting interface

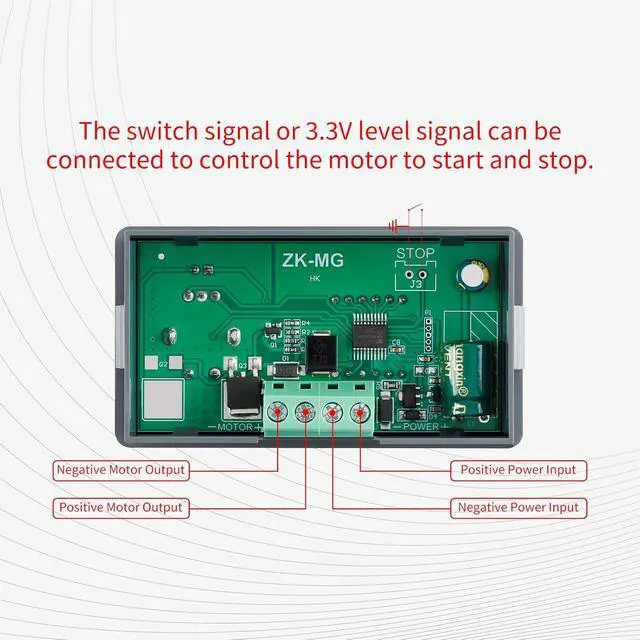

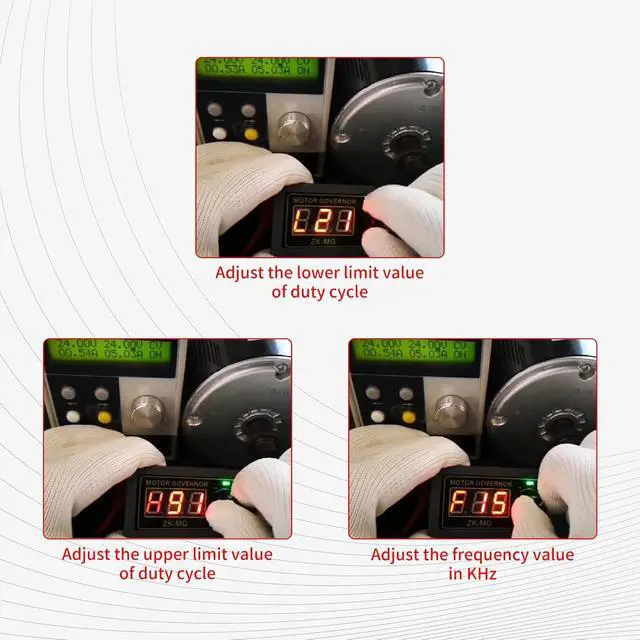

Under the setup interface: Short press-select the setting parameters, and the setting parameters are switched between the lower limit of the duty cycle, the upper limit of the duty cycle and the operating frequency. The display form of the lower duty cycle limit is "L" + two digits, the display form of the upper duty cycle limit is "H" + two digits or "100", and the display form of the working frequency is "F" + two digits. Counterclockwise rotation-corresponding setting parameters decrease Clockwise rotation-corresponding setting parameters increase Long Press-Exit Setup Interface Back STOP port The switch button or 3.3V level can be externally connected, and the start/stop state of the motor can be switched when the button is closed or the 3.3V level is lowered. PWM to Voltage Module 0%-100 PWM to 0-10V Voltage Signal Converter XY-GMOS MOS Tube FET Trigger Switch Driver Module PWM Electronic Switch ZK-MG PWM Motor Speed Controller LED Digital Display Adjustable Driver Module 3Channel PWM Pulse Signal Generator Frequency Adjustable Square Wave Rectangular XY-BLDC 3 Phase DC Brushless Hall Motor Controller Module 10KHz PWM 12V-30V 200W Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Price $ 14.95 $14.
95 $ 8.95 $8. 95 $ 9.95 $9. 95 $ 9.95 $9. 95 $ 13.93 $13. 93 PWM no data See More
Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE.
Product Description Working voltage: DC5V ~ 30V, input anti-reverse connection protection
Rated current: 5A maximum current 15A
Maximum power: 150W
Operating frequency: 1KHz ~ 99KHz adjustable, 1KHz stepping, default frequency 20KHz, accuracy about 1%
Duty cycle: 0-100%, 1% step
Product size: 79mm * 43mm * 26mm
Product weight: 66g Power-down storage for all settable parameters. Digital encoder knob operation
In the default interface: (the default is the duty cycle) Short Press-Switch Motor Start and Stop Counterclockwise rotation-duty cycle decreases Clockwise rotation-duty cycle increases Long press-enter the setting interface
Under the setup interface: Short press-select the setting parameters, and the setting parameters are switched between the lower limit of the duty cycle, the upper limit of the duty cycle and the operating frequency. The display form of the lower duty cycle limit is "L" + two digits, the display form of the upper duty cycle limit is "H" + two digits or "100", and the display form of the working frequency is "F" + two digits. Counterclockwise rotation-corresponding setting parameters decrease Clockwise rotation-corresponding setting parameters increase Long Press-Exit Setup Interface Back STOP port The switch button or 3.3V level can be externally connected, and the start/stop state of the motor can be switched when the button is closed or the 3.3V level is lowered. PWM to Voltage Module 0%-100 PWM to 0-10V Voltage Signal Converter XY-GMOS MOS Tube FET Trigger Switch Driver Module PWM Electronic Switch ZK-MG PWM Motor Speed Controller LED Digital Display Adjustable Driver Module 3Channel PWM Pulse Signal Generator Frequency Adjustable Square Wave Rectangular XY-BLDC 3 Phase DC Brushless Hall Motor Controller Module 10KHz PWM 12V-30V 200W Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Price $ 14.95 $14.
95 $ 8.95 $8. 95 $ 9.95 $9. 95 $ 9.95 $9. 95 $ 13.93 $13. 93 PWM no data See More
