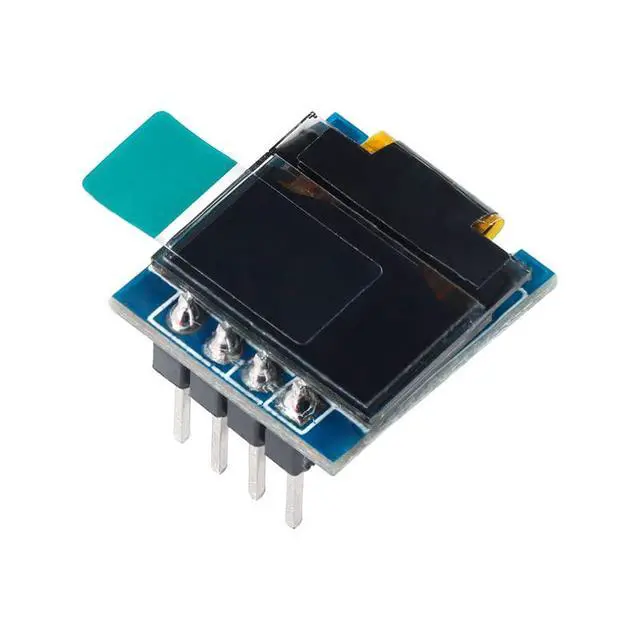

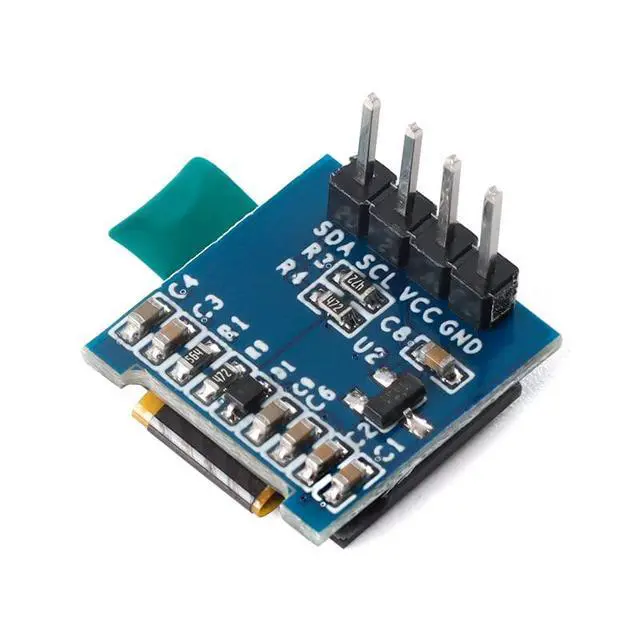

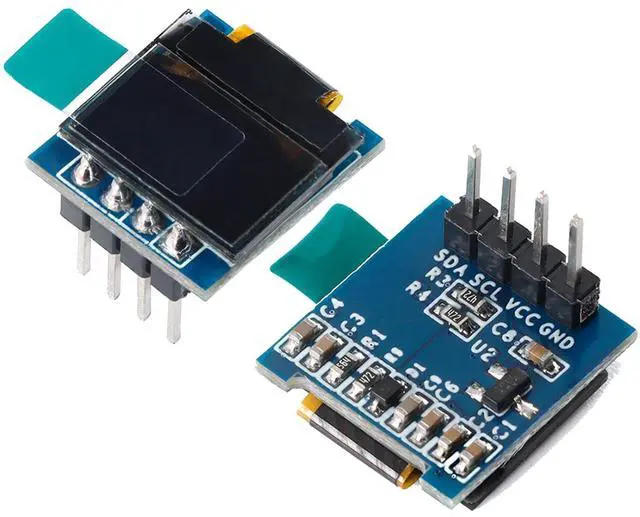

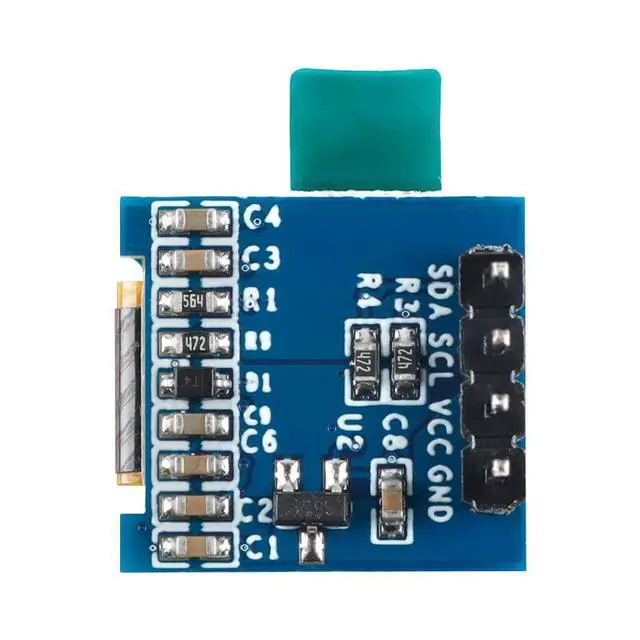

2pcs 0.49" OLED Display Module, IIC I2C 64x32 SSD1306 White Screen, for DIY Projects
- **High Compatibility for DIY Projects**: Perfect for Arduino, Raspberry Pi, and other microcontroller projects with its easy-to-use I2C interface.; **Super Bright White Display**: Features a 0.49" OLED screen with a high contrast 64x32 resolution, ensuring clear visibility even in low light conditions.; **Low Power Consumption**: Designed to operate efficiently between 3.0V to 5.5V, making it ideal for battery-powered applications.; **Robust and Durable**: Operates reliably over a wide temperature range from -40 to 70, suitable for various environments.; **Compact and Versatile Design**: With a display area of 11.18x5.58 mm, this OLED module is perfect for compact spaces without compromising on display quality.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Introduction: 1.
Specification: 0.49 inch 2.
Light Color: superlight white 3.
Resolution: 64*32 4.
Voltage: 3.0 - 5.5V 5.
Interface: IIC
Resolution: 64 * 32
Control chip: SSD1306
Display area: 11.18 x 5.58 (mm)
Panel size: 15x16 (mm)
Interface type: I2C
Display color: white
Working voltage: 3.3V
Pixel size: 0.175 x 0.175 (mm)
Pixel pitch: 0.155 x 0.155 (mm)
Number of pins: 4Pin
View direction: full view
Operating temperature: - 40~70 IIC interface 1.
GND: power ground 2.
VCC: power supply+ 3.3 -5V 3.
SCL: IIC clock line 4.
SDA: IIC data cable
Specification: 0.49 inch 2.
Light Color: superlight white 3.
Resolution: 64*32 4.
Voltage: 3.0 - 5.5V 5.
Interface: IIC
Resolution: 64 * 32
Control chip: SSD1306
Display area: 11.18 x 5.58 (mm)
Panel size: 15x16 (mm)
Interface type: I2C
Display color: white
Working voltage: 3.3V
Pixel size: 0.175 x 0.175 (mm)
Pixel pitch: 0.155 x 0.155 (mm)
Number of pins: 4Pin
View direction: full view
Operating temperature: - 40~70 IIC interface 1.
GND: power ground 2.
VCC: power supply+ 3.3 -5V 3.
SCL: IIC clock line 4.
SDA: IIC data cable
