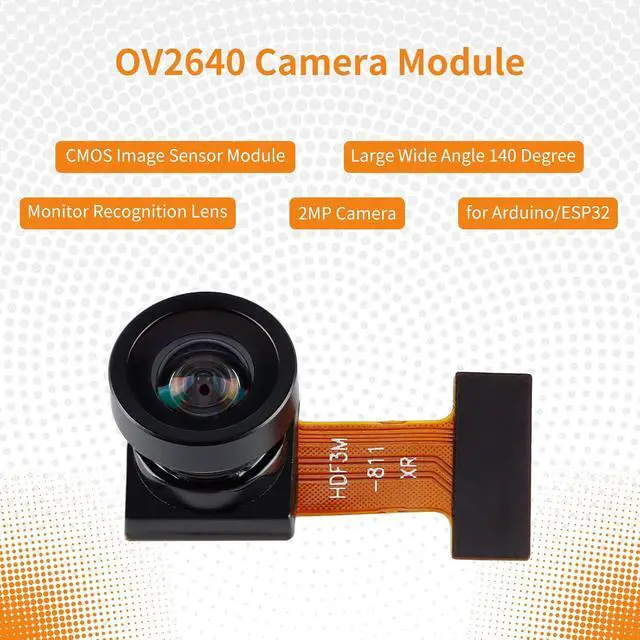

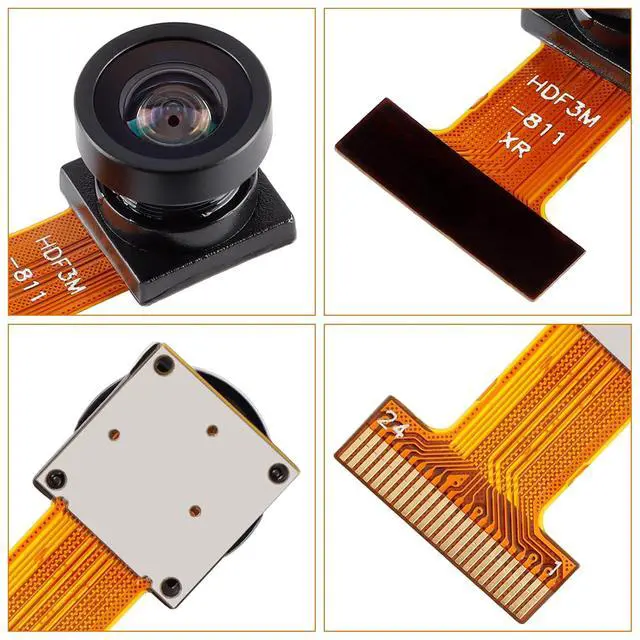

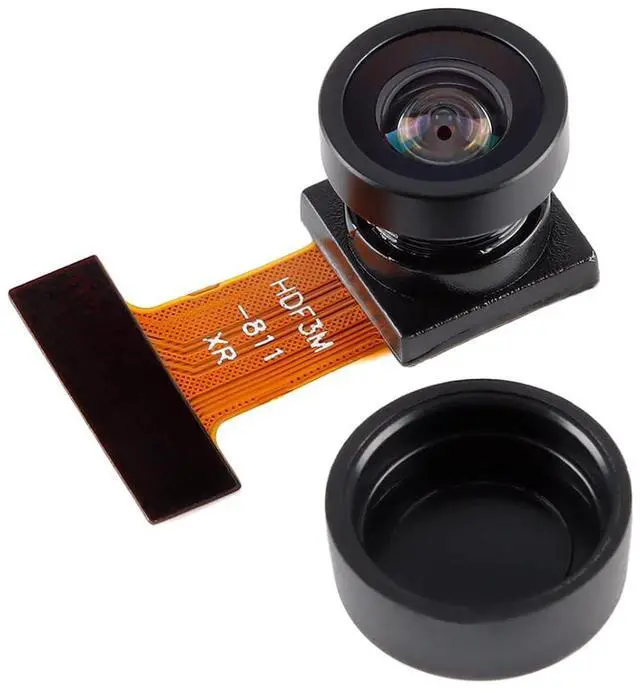

OV2640 Camera Module 200W Pixel Large Wide Angle 140 Degree Monitoring Identification Cam Module 2MP CMOS Mini Camera 24P Connector Support JPEG Output

Product description We delivering products that are designed to elevate your projects to the next level. Whether you are a hardware engineer, hobbyist, student, or professional. Our development boards and components are here to help. Welcome to JESSINIE, for development boards and electronic components. At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets to meet your project needs. At JESSINIE, We focus on the importance of reliable and efficient products, we prioritize quality and performance in everything we offer.

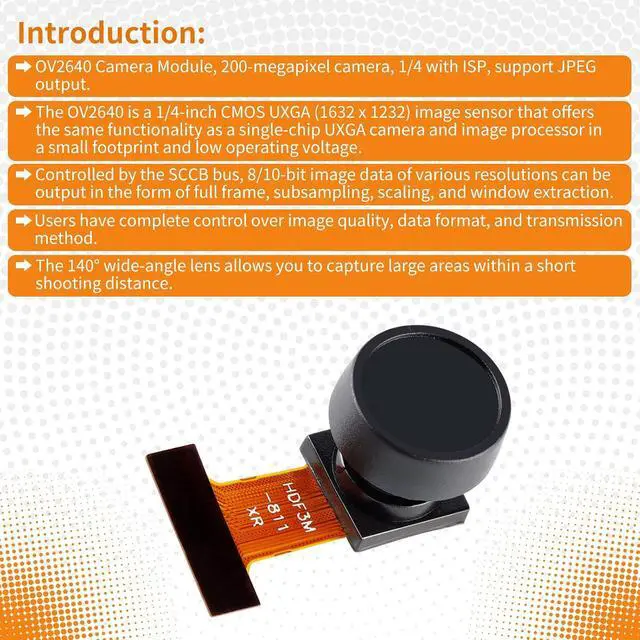

Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE. The OV2640 image sensor has 200W pixels, its small size and low working voltage, and provides all the functions of a single UXGA camera and image processor. Through SCCB bus control, it can output 10-bit sampling data with various resolutions such as whole frame, sub-sampling, window retrieval, etc. Users can fully control the image quality, data format and transmission mode. All image processing functions including gamma curve, white balance, saturation, chromaticity, etc.

Module features: High sensitivity and low voltage are suitable for embedded applications. Standard SCCB interface, compatible with I2C interface. JPEG, RawRGB, RGB
(GRB 4:2: 2, RGB565/555/444), YUV
( 4:2: 2) and
YCbCr ( 4:2: 2) output formats. Support UXGA, SXGA, VGA, QVGA, QQVGA, CIF, QCIF, etc. Support automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light stripes, automatic black level calibration. Image quality control includes settings such as color saturation, hue, gamma, sharpness ANTI_BLOOM, etc. Supports image scaling, panning and window settings. Support image compression, can output JPEG image data. With embedded microprocessor. Integrated active crystal oscillator 12M, no external clock required. Integrated LDO, only need to supply 3.3V to work normally.
Data interface: 8-bit data
Control interface: SCCB (IIC-like protocol)
Output formats: RawRGB, RGB(RGB565/RGB555), GRB422, YUV(422/420), YCbCr (422), JPEG data
Output bit width: 8 bits
Output pixels: UXGA (1600*1200) and any size below to 40*30
Maximum frame rate: UXGA (1600*1200) @ 15 frames SVGA (800*600) @ 30 frames CIF (352*288) @ 60 frames
Sensor size: 1/4 inch
Sensitivity: 0.6V /Lux-sec
Signal-to-noise ratio: 40dB
Dynamic range: 50dB
Lens aperture: F 2.0
Focal length of lens: 3.6 mm
Lens filter: 850nm, infrared sensing filter
Operating temperature: -30 ~ 70
