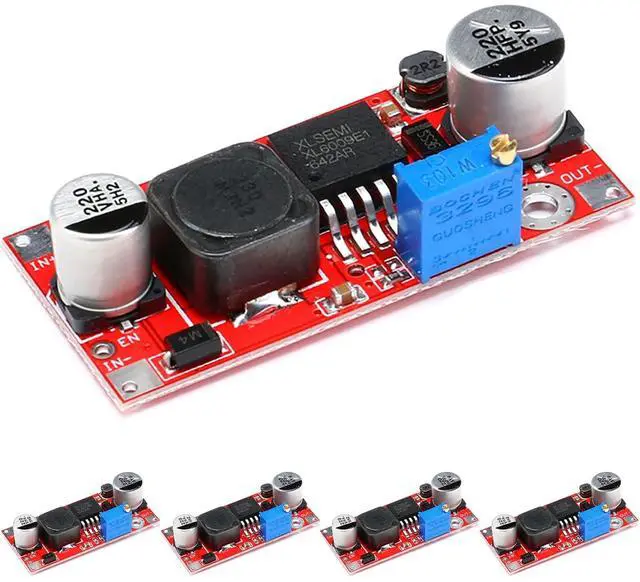

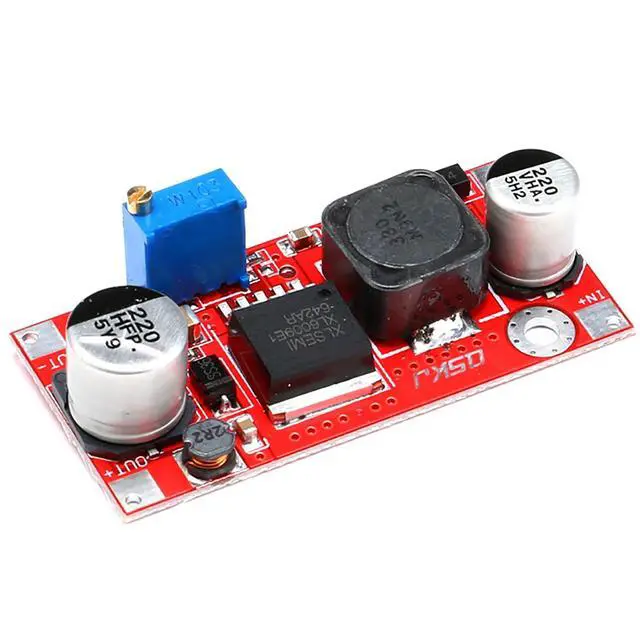

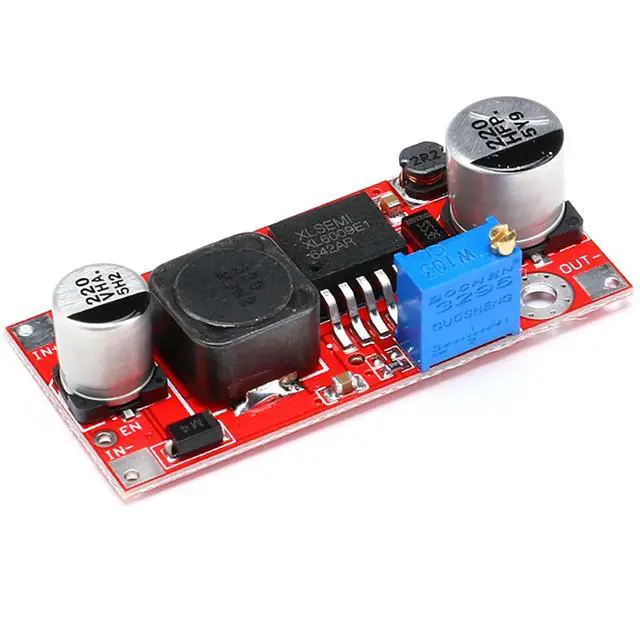

5PCS XL6009 Boost Buck DC-DC 15W Booster Modules Adjustable Step Up Down Converter Module Solar Voltage
- Enhanced Efficiency and PerformanceExperience the power of the new chip in our boost converter module, which offers up to 94% efficiency with a high working frequency of 400Khz. Enjoy smooth voltage adjustments from 5 to 50V to suit a variety of applications, from DIY projects to industrial use.; Premium Build Quality Built with high-grade TDK inductors and triple MLCC multilayer ceramic capacitors, our module ensures minimal heat generation and superior interference resistance, promising durability and reliability for any project.; User-Friendly DesignEquipped with an enable port, this 15W power module allows you to control the operation effortlessly, ensuring power is there when you need it and conserved when you don't. Adjust output easily with a simple setup, and benefit from a stable power supply with very low output ripple.; Safe and SecureWhile designed for robust performance, please note the module does not include short-circuit protection. For enhanced safety, consider adding a fuse or a protection circuit to the input, and explore our compatible reverse protection board for comprehensive security.; Compact and VersatileMeasuring just 49(L) x 23.4(W) x 11.4(H) mm, this non-isolated boost module is perfect for a range of electronic applications. Easy to mount with screw fixing holes and capable of direct soldering to PCB, its engineered for both hobbyists and professional setups.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

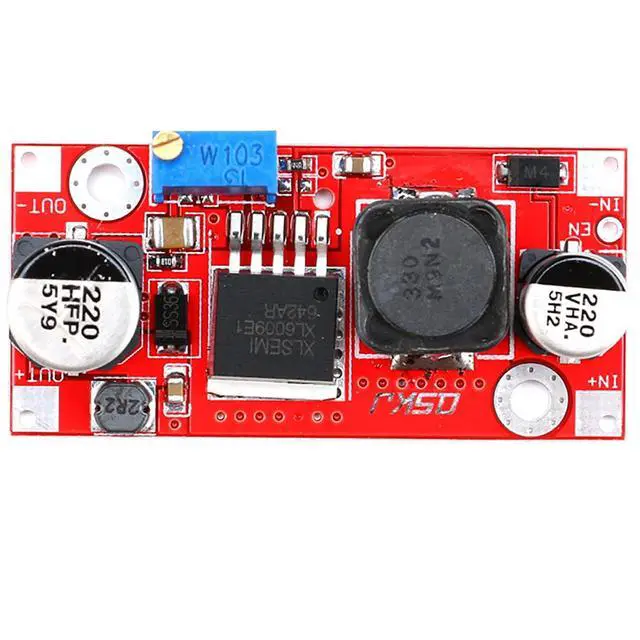

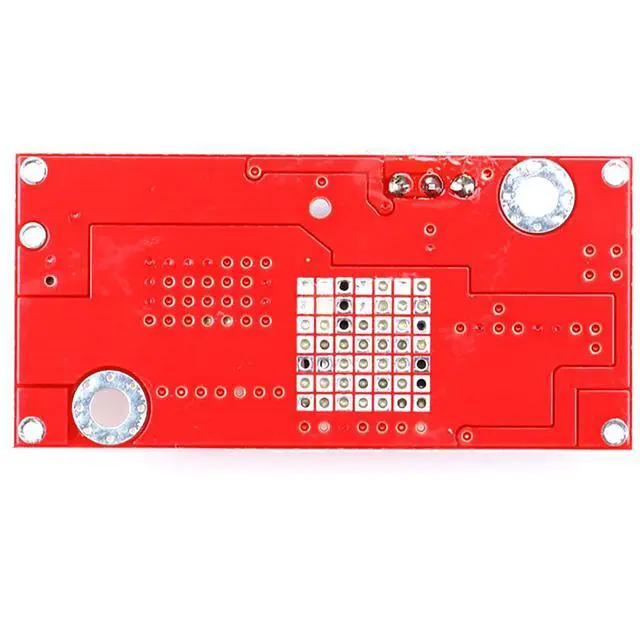

New Product Introduction:
1: New original XLSEMI chip.
2: Up to 400Khz working frequency, and LC filter circuit, the output ripple is very low.
3: High quality TDK inductors to minimise heat generation and interference.
4: Input and output 3 MLCC multilayer ceramic capacitors, anti-interference to improve stability.
5: PCB adopts kb grade A material.
6: Built-in MOSFET can reach 94% high efficiency.
7: Enable port is added to control whether the boost circuit works or not. 15W Power Module with
Enable Port Dimension: 49 (L) * 23.4 (W) * 11.4 (H) mm (without potentiometer)
Module Parameter: Module
nature: non-isolated boost module (BOOST)
Input voltage: 5-32V
Output voltage: (1) continuously adjustable (5-50V) (2) Fixed output (any choice between 5-50V), please tell the shopkeeper when you buy. (3) If you need higher voltage, please contact me directly.
Output current: 2.5A (MAX)
Input current: 4A (MAX)
Output power: natural cooling 15W, plus heat sink 25W (MAX) actual power MAX output power = input voltage * 4A * conversion efficiency
Output Ripple: Input 12V Output 24 0.5A Ripple 30MV 20M bandwidth
Operating temperature: industrial grade (-40 ° C to +85 ° C) (ambient temperature exceeds 40 degrees, please reduce the power to use, or strengthen the heat dissipation)
Full load temperature rise: 45
Operating frequency: 400khz
No-load current: 5V to 12V 18mA, 8.4V to 12V 11mA, 12V to 24V 15mA, 12V to 36V 18mA, 24V to 48V 14mA, 24V to 36V 11mA.
Load adjustment rate: ± 0.5 %
Voltage Adjustment Rate: ± 0.5 %
Dynamic response rate: 5% 200uS
1: New original XLSEMI chip.
2: Up to 400Khz working frequency, and LC filter circuit, the output ripple is very low.
3: High quality TDK inductors to minimise heat generation and interference.
4: Input and output 3 MLCC multilayer ceramic capacitors, anti-interference to improve stability.
5: PCB adopts kb grade A material.
6: Built-in MOSFET can reach 94% high efficiency.
7: Enable port is added to control whether the boost circuit works or not. 15W Power Module with
Enable Port Dimension: 49 (L) * 23.4 (W) * 11.4 (H) mm (without potentiometer)
Module Parameter: Module
nature: non-isolated boost module (BOOST)
Input voltage: 5-32V
Output voltage: (1) continuously adjustable (5-50V) (2) Fixed output (any choice between 5-50V), please tell the shopkeeper when you buy. (3) If you need higher voltage, please contact me directly.
Output current: 2.5A (MAX)
Input current: 4A (MAX)
Output power: natural cooling 15W, plus heat sink 25W (MAX) actual power MAX output power = input voltage * 4A * conversion efficiency
Output Ripple: Input 12V Output 24 0.5A Ripple 30MV 20M bandwidth
Operating temperature: industrial grade (-40 ° C to +85 ° C) (ambient temperature exceeds 40 degrees, please reduce the power to use, or strengthen the heat dissipation)
Full load temperature rise: 45
Operating frequency: 400khz
No-load current: 5V to 12V 18mA, 8.4V to 12V 11mA, 12V to 24V 15mA, 12V to 36V 18mA, 24V to 48V 14mA, 24V to 36V 11mA.
Load adjustment rate: ± 0.5 %
Voltage Adjustment Rate: ± 0.5 %
Dynamic response rate: 5% 200uS
